Ductile Iron Nrs Resilient Gate Valves For Water

Model No. GV-Z-1

ductile iron DIN PN16 Flat resilient Gate valve for drinking Water. Temperature: -30℃-+125℃

Gate Valves Quick Detail

Gland Gate valve

Gate Valves Range:

Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50

Available Disc Material: Ductile iron, Bronze

Optional Seat Ring: EPDM, NBR, Brass, Bronze, SS304, SS316

Optional Design: DIN /BS/ ANSI with difference Face to face length

Optional Ends: BS4504/EN1092-1 PN16/ ANSI B16.5 RF

Size Range: DN50-DN1200 (2”-48”)

Pressure Range: PN10, PN16, 150LBS.

Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized

Optional Operation: Handwheel /Chain wheel/ electric Actuator/pneumatic actuator

Performance

• PN10/16/PN25/150PSI/225PSI Resilient Seated Gate Valve is operating by the EPDM covered iron wedge

moving perpendicular to the flow axis through a worm machined stem multi turned

• 100% tight sealing is achieved through EPDM covered wedge fully contacting

The fusion bonded epoxy coated flow surface

• In each time the valve is opened, the flow on the line cleans the sealing surface,

Prevents from dirt and deposits

• With its short installation length ( DIN 3202 F4), does not occupy a big place

• It has ductile iron body and stainless steel stem

• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy

• Suitable to install actuator and gearbox

• Suitable to use with ground and underground applications. Can be operated with extension spindle

• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed

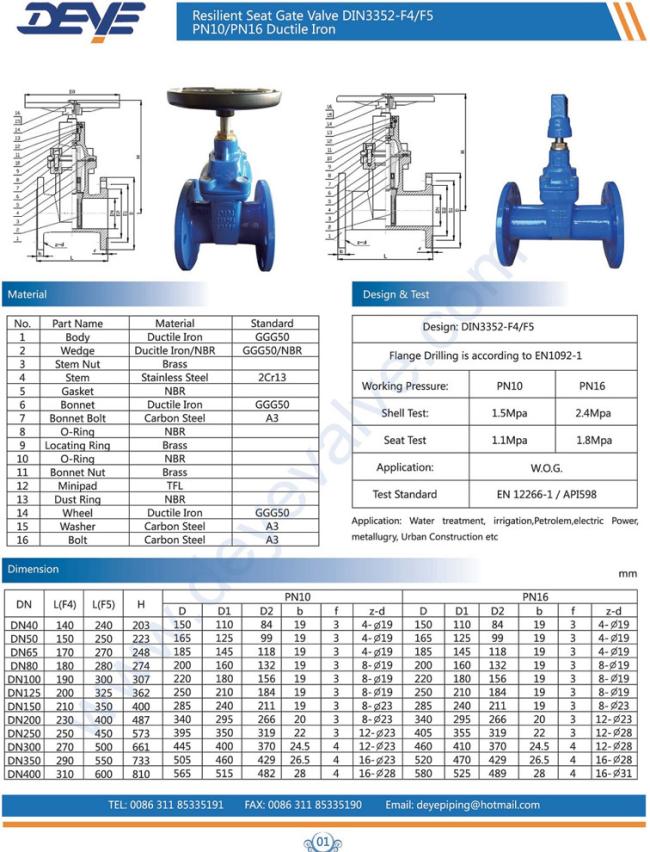

Technical Data Sheets:

Applications

Gate Valves Used For Hot Water, Cold Water, Fluids without acidity or alkalinity properties
