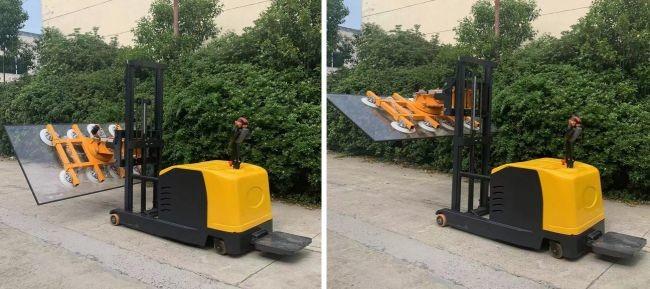

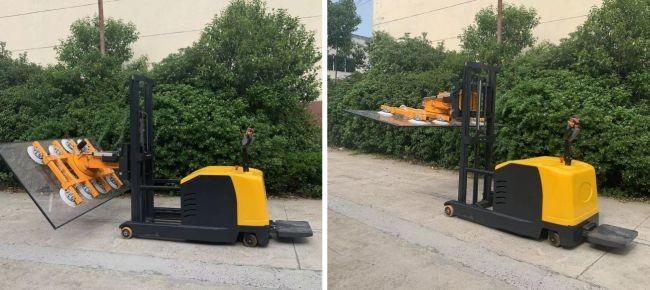

300kg To 800kg Battery Vacuum Glass Lifter Glass Moving Lifter Glass Installation
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
7 to 15working days
Brand:
Eternalwin
Product Description
300kg to 800kg Battery Glass Moving Lifter Electric Glass Installation Trolley
| Load Capacity | kg | 300 | 400 | 500 | 600 | 800 |
| Safe Load Capacity | kg | 300 | 400 | 500 | 600 | 800 |
| Lifting Height | mm | 1600 | 1600 | 1600 | 1600 | 1600 |
| Overall Height | mm | 2080 | 2080 | 2080 | 2080 | 2080 |
| Suction Frame Size | mm | 1000*800 | 1000*800 | 1600*900 | 1600*900 | 1600*900 |
| Suction Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
| Suction Cup Quantity | pcs | 4 | 4 | 6 | 6 | 8 |
| Rotating | / | 360° (Without / Manual / Electrical) | ||||
| Tilting | / | Electrical 90° | ||||
| Driving Speed (Load/Unload) | km/h | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 |
| Lifting Speed (Load/Unload) | mm/s | 80/130 | 80/130 | 80/130 | 80/130 | 80/130 |
| Falling Speed (Load/Unload) | mm/s | 110/90 | 110/90 | 110/90 | 110/90 | 110/90 |
| Brake Type | / | Electromagnetic Braking | ||||
| Driving Wheel | mm | 250*80 | 250*80 | 250*80 | 250*80 | 250*80 |
| Driving Wheel Type | / | Horizontal | ||||
| Front Wheel | mm | 150*50 | 150*50 | 150*50 | 150*50 | 150*50 |
| Driving Motor/ Lifting Motor | kw | 1.2 / 1.6 | 1.2 / 1.6 | 1.5 / 2.0 | 1.5 / 2.0 | 1.5 / 2.2 |
| Battery | V/Ah | 2*12/100 | 2*12/100 | 2*12/120 | 2*12/120 | 2*12/150 |
| Control Type | / | Stepless Speed Regulation | ||||
