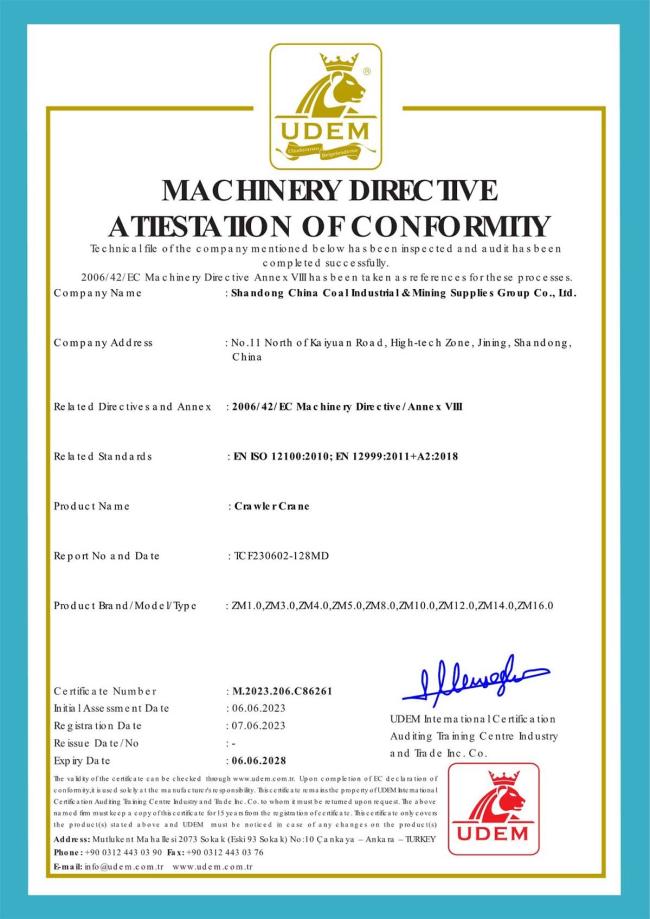

Hydraulic Telescopic Boom Diesel Engine Drive Rubber Crawler Spider Crane With CE Certificate

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5 days

Brand: ZHONGMEI

Product Description

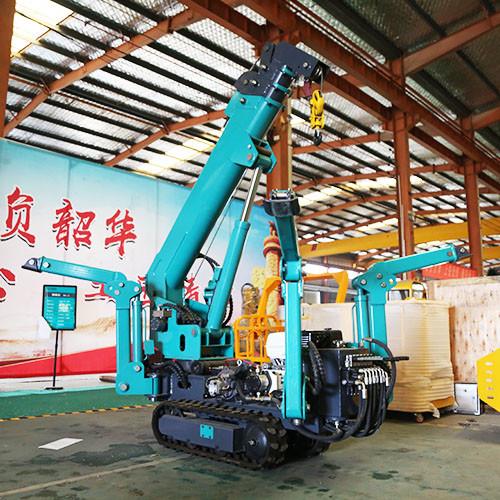

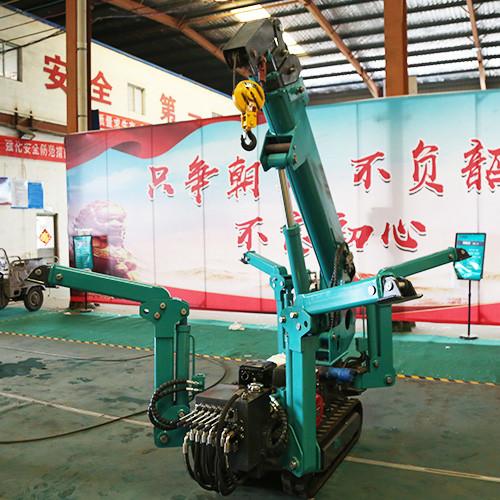

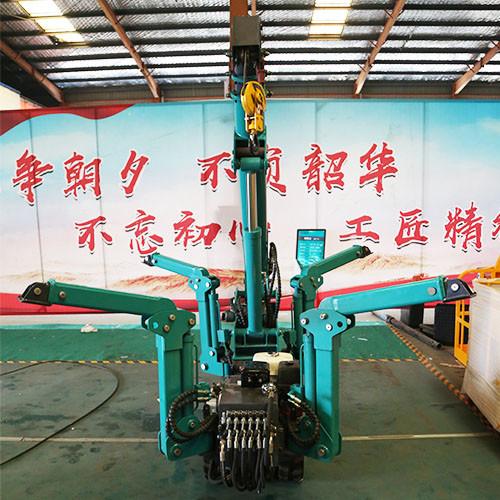

Introduction of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane

The road crane spider crane is a mechanical equipment specifically used for lifting operations on roads. It has a unique spider shaped structure and can stably stand on uneven roads for work.

The main components of a spider crane include the main arm, auxiliary arm, support legs, and lifting hooks. The main and auxiliary arms can be retracted and adjusted as needed to adapt to different lifting heights and distances. The legs can be independently adjusted, allowing the spider crane to maintain stability on uneven ground.

The spider crane also has flexibility and maneuverability, allowing for operations in narrow spaces. It can be quickly assembled and disassembled, facilitating transportation and relocation. At the same time, the spider crane is also equipped with various safety devices, such as limiters, overload protectors, and anti tipping devices, to ensure safety during work.

Product Paramenters

Parameters of ZHONGMEI New China Supplier Mini Hydraulic Telescope Tracked Crawler Crane With Attachments 1.2t Tracked Spider Crane

Specification		1.2t
Maximum Working Radius		5m*0.3t
Maximum Ground Lift		5.8m*0.8t
Winch	Hook up speed	0-8m/min
Winch	Wire Rope Specifications	Φ8mm*35m
Telescopic Device	Boom form	4 -section boom , U-shaped high-strength manganese
Telescopic Device	Boom length/time	1.7 m- 5 m/2 2 sec
Undulating Device	Boom angle/time	0-7 5 °/13sec
Gyratory Device	Rotation angle/speed	0-360° (continuous)/60sec
Outrigger	Outrigger Action Form	Manual unscrewing + hydraulic automatic support (two legs)
Outrigger	Maximum extension (mm)	3800 (L) X 3000 (Rear) , (Front)
Walking Device	way of walking	Hydraulic motor drive, two-speed
	Walking speed	0-2.5km/h
	Gradeability	20° (36%)
Engine	Producer	Gasoline
	Type/displacement	9.6kW
	Start method	Electric start
	Startup performance	-5°C~40°C
	fuel/volume	Gasoline / 8 L
	battery capacity	12v 45AH
	Fuel consumption	274g/kW-h
Operating System	Type of operation (jib/outrigger), manual travel	Manual operation, manual walking + remote control (optional)
Operating System	Operating characteristics	Comai hydraulic system (optional)
The Standard Configuration	engine power
Vehicle size	Length 2095width 600height 1393
Craftsmanship	Paint assembly process
