ABS 2V 490Ah Tubular OPZV Battery For Wind Solar Energy System
Price:
negotiable
MOQ:
1 unit
Delivery Time:
7-20 days
Brand:
Yangtze
Product Description
Product Description:
OPZV OPZS tubular batteries are designed to provide the highest recombination efficiency and design life. With a recombination efficiency of ≥99%, a design life of 30 years, and a container material of ABS, these batteries are built to last. The operating temperature range is –40℃ To +60℃, and the float voltage of the battery is 2.25-2.35V/cell. OPZV OPZS tubular batteries are the perfect choice for reliable, long-term energy storage.

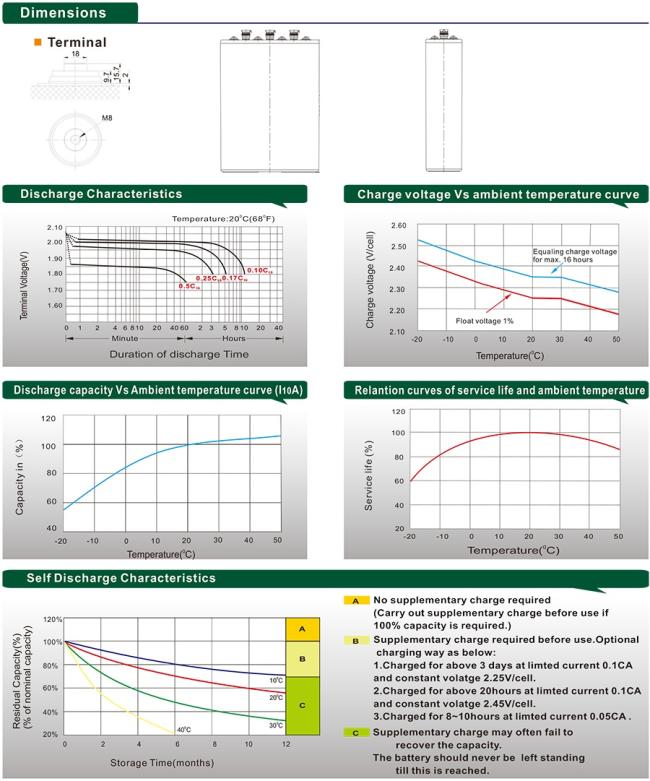

| 1. Functional Parameter | 5. Environment Temperature | ||
| Nominal Voltage | 2V | Discharge Temperature | -40~60℃ |
| Nominal Capacity @C10 to 1.8V/cell | 490Ah | Charge Temperature | -15~50℃ |
| Designed Floating Life 20℃ (68° F) | 20years | Storage Temperature | -15~40℃ |
| 2. Rated Capacity at 20℃ (68° F) | 6. Inner Resistance & Max . Discharge Current | ||
| 5 hour rate (85.3A, 1.75V/cell) | 426.5Ah | Fully Charged battery at 20℃ (68° F) | 0.75mΩ |
| 3 hour rate (126A, 1.75V/cell) | 378Ah | Max. Discharge Current | 2000A (5s) |
| 1 hour rate (279A, 1.60V/cell) | 279Ah | Short Circuit Current | 2600A |
| 3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 20℃ (68° F) | ||
| 40℃ (104° F) | 102% | Capacity after 3 month storage | 94% |
| 25℃ (77° F) | 100% | Capacity after 6 month storage | 88% |
| 0℃ (32° F) | 90% | Capacity after 9 month storage | 82% |
| -15℃ (5° F) | 70% | Capacity after 12 month storage | 76% |
| 4. Dimension and Weight | 8. Constant voltage charging at 20℃ (68° F) | ||
| Length | 166mm | Cyclic use | 2.35~2.40V |
| Width | 206mm | Maximum charging current | 100A |
| Height | 471mm | Temperature compensation | -5mV/℃ |
| Total Height | 506mm | Float use | 2.25~2.29V |
| Reference Weight | 37.3kg | Temperature compensation | -3mV/℃ |
Features:
- Product Name: OPZV OPZS
- Float Voltage: 2.25-2.35V/cell
- Container Material: ABS
- Design Life: 30 Years
- Capacity Range: 200Ah-3000Ah
- Recombination Efficiency: ≥99%
