190hp ELF ISUZU Road Sweeper Truck 2300L 5000L Garbage Collection
Price:
USD 46200- USD 49200/ UNIT
MOQ:
1 UNIT
Delivery Time:
45-60 work days
Brand:
ISUZU
Product Description

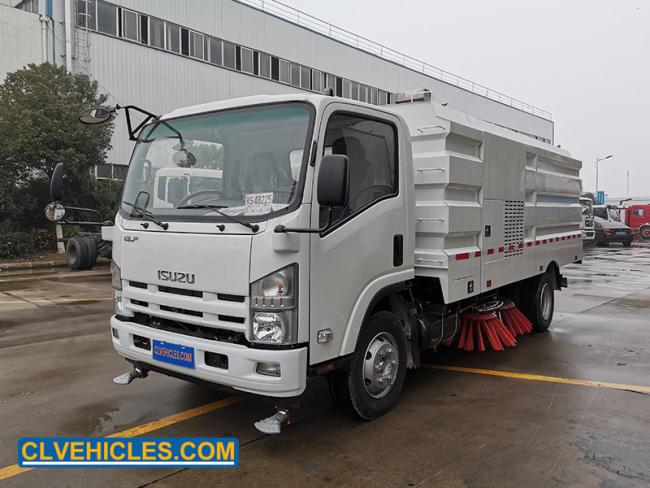

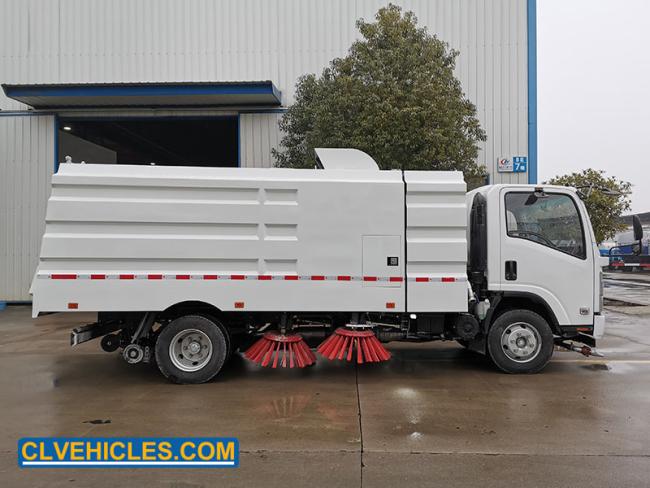

ISUZU ELF 190hp 2300L Water 5000L Self Dump Road Sweeper Cleaning Truck
Product Description
Road sweeper truck is also called street sweeper truck, street cleaning truck, road sweeper vehicle.
it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle.
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker,
sweeper brush,spraying water system, hydraulic system, electric control system, etc.
It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill,
electric power plant, etc.
Product Parameters
| Vehicle performance and parameters | |||
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3.2 | m |
| Sweep speed | 3-20 | km/h | |
| Max sweep capacity | 60000 | m2/h | |
| Max inhalation of granularity | ≥110 | mm | |
| Angle of unloading | ≥45 | . | |
| Volume of water tank | 3000 | L | |
| Volume of garbage tank | 6000 | L | |
| Driving Performance | Max speed | 95 | km/h |
| Max gradeability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Quality Parameter | Curb weight | 5800 | kg |
| GVW | 11000 | kg | |
| Dimension Parameter | Overall dimensions | 6830×2220×2650 | mm |
| Wheelbase | 3815 | mm | |
| Track front | 1680 | mm | |
| Track rear | 1640 | mm | |
| Front suspension | 1155 | mm | |
| Rear suspension | 1860 | mm | |
| Approach angle | 17 | . | |
| Departure angle | 25 | . | |
| Minimum Ground Clearance | 200 | mm | |
Product Images

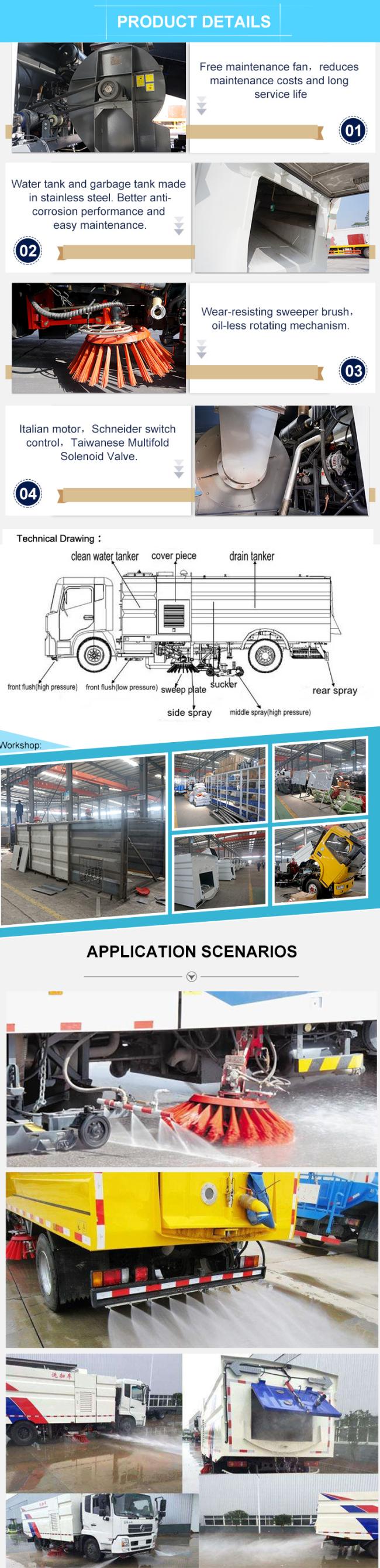

Product Details
