ISUZU 130hp Crane Truck Lifting 3 ton Construction Machinery

Price Negotiable

Price: USD 31200- USD 39200/ UNIT

MOQ: 1 UNIT

Delivery Time: 45-60 work days

Brand: ISUZU

Product Description

ISUZU 130hp Crew Cab 3ton Construction Machinery Lifter Crane Truck

Vehicle Description
Vehicle model		Crane truck		Overall dimensions (mm)	5995×2200×2835
GVW (kg)		Appro×7000		Loading capacity(t)	3-5
Curb weight (kg)		Appro×3750		Max. Speed (km/h)	100
Chassis Description
Chassis Brand			ISUZU
Cab			Crew cab with A/C, power steering
Allowable person in cab			5
Wheel base (mm)			3360
Number of axles			2
Axle	Front axle		2500
	Rear axle		4800
Traction system			4*2
Operation control system			Power steering
Braking system			Oil brake
Transmission			5-speed MSB
Tire specification			7.00R16
Tire quantity			6+1
Engine Description
Engine manufacture			ISUZU Engines
Engine model			4KH1CN5HS
Emission standard			Euro 5
Horse power			130
Up-parts Description
Cargo box
Material			Carbon Steel
Dimension (mm)			38001800400
Thickness of bottom / side (mm)			3.0 / 1.2
Crane
Model			SQ4SA2
Max. loading capacity (kg)			4000
Max. lifting torque (T.m)			10
Max. lifting height (m)			9.5
Max. working radius (m)			7.6
Installation space (mm)			850
Sections of boom			3
Length of boom (mm)			3500-7820
Extended speed (m/s)			0.1
Rangeability			0-75°
Outrigger
Type			H
Horizontal Breadth (mm)			1850-5100
Hook & wire-rope
Speed of hook lifting (m/min)			9
Diameter of wire-rope (mm)			8
Length of wire-rope (m)			45
Slewing gear
Speed (r/min)			2
Angel			360

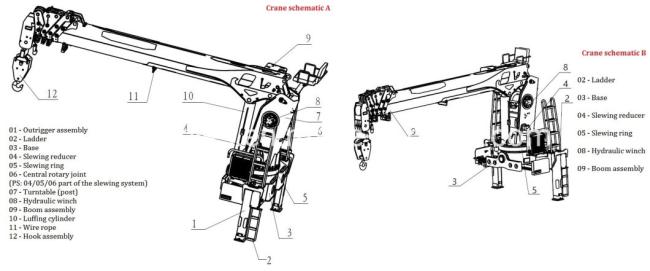

The truck-mounted crane truck consists of chassis, cargo van, column, frame, boom (crane), outrigger, turntable, hook assembly and etc. The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work.
*Application*

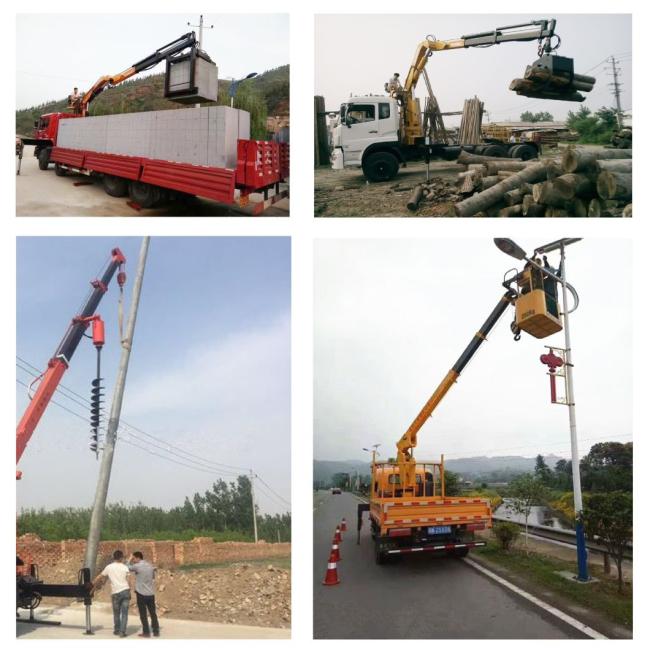

It is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.
