X-type Three section hydraulic outrigger, can be adjusted separately, more stable
High altitude working platform SITRAK 50m Aerial truck crane truck with working basket
Price:
$140,000.00/units 1-2 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Products Description
Jiubang aerial working vehicle adopts JMC/JAC/ISUZU/Dongfeng as the working platform chassis. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
SHANGHAI BAOSTEEL WORKING BOOM
High strength, stronger bearing capacity
REINFORCED TELESCOPIC BOOM
Seven section synchronous telescopic boom
|
Chassis
|
|
|
|
|||
|
Brand
|
Sitrak
|
Drive
|
4 x 2
|
|||
|
Dimensions(L x W x H)
|
10120 x 2550 x 3920(mm)
|
Gross Vehicle Weight
|
18000 Kg
|
|||
|
Engine
|
Sinotruk
|
Horsepower
|
250 HP
|
|||
|
Max. speed
|
98 Km/h
|
Emission Standard
|
Euro VI
|
|||
|
Wheelbase
|
5000 mm
|
Braking system
|
Dead air brake
|
|||
|
Approach angle
|
20°
|
Departure angle
|
13°
|
|||
|
Cab
|
Single row / 3 passengers / Air Conditioner
|
|
|
|||
|
Aerial work platform
|
|
|
|
|||
|
Working platform dimensions
|
3000 x 900 x 1200 mm
|
Rated load
|
400 Kg
|
|||
|
Max. working height
|
50 m
|
Operating range at max. working height
|
3 m
|
|||
|
Max. operating range
|
32 m
|
Working height at max. operating range
|
38 m
|
|||
|
Working boom
|
Seven section synchronous telescopic boom
|
|
|
|||
|
PTO System
|
Electronic operation
|
Rotary device
|
360 deg continuous rotation
|
|||
|
Derricking cylinder
|
2 set
|
Telescopic structure
|
Oil cylinder and wire rope
|
|||
|
Outrigger
|
X-type hydraulic telescopic outrigger, separately controlled
|
|
|
|||
|
Outrigger span(TVS)
|
8200 mm
|
Outrigger span(I)
|
7300 mm
|
|||
|
Operation mode
|
Remote / electric / manual
|
|
|
|||
|
Emergency system
|
Automatic
|
|
|
|||
|
Control system
|
CAN bus control system
|
|
|
|||
|
Leveling system
|
Liquid automatic leveling
|
|
|
|||
|
Control voltage
|
24 V
|
|
|
|||
PRODUCT STANDARD CONFIGURATION
Higher configuration for your choice
Panoramic operation roomGood visibility, more comfortable, can be equipped with air conditioning
Folding work platform
Light weight, high strength and small space occupation
MORE STABLE LIFTING
Equipped with reducer and automatic leveling system
Equipped with Dejin rotary reducer, the
movement speed is adjusted stably
Liquid automatic leveling system makes the working platform more stable
360 DEGREE ROTATION
The working platform and rotary device can rotate 360 degrees
The rotary device can rotate 360 degrees continuously
Hydraulic rotary device, 360 degree continuous rotation
FOUR IN ONE OPERATION
Different operation modes in different construction environments
MULTIPLE SECURITY GUARANTEES
Multiple safety schemes to ensure personnel and construction safety
HYDRAULIC OUTRIGGER
Interlock the outrigger and vehicle to prevent misoperation
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way
AUTOMATIC EMERGENCY PUMP
When the engine and main pump fail, the staff can be sent back to the ground through the emergency system
For emergency stop operation and limit boom operation
When the working range reaches the specified value, the dangerous direction will be automatically limited
Equipped with wind speed detector, when the wind speed is too high, the height will be automatically limited
Equipped with load detector to automatically limit the height and amplitude according to different loads
MORE PRODUCT DETAILS
Details determine product quality
PRODUCT PHOTOGRAPH
More real product photos
MORE PRODUCTS
PRODUCTS CAN BE CUSTOMIZED ACCORDING TO YOUR NEEDS

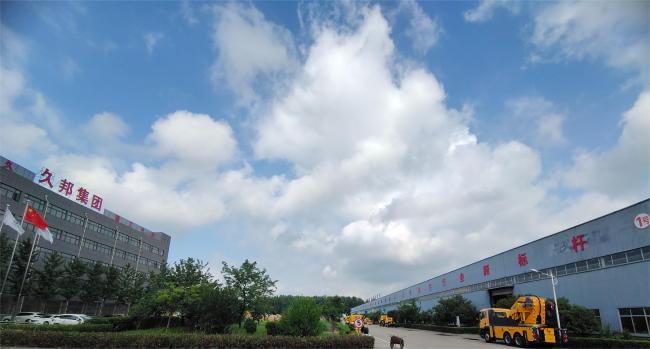

Company Profile
Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 1,000 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
