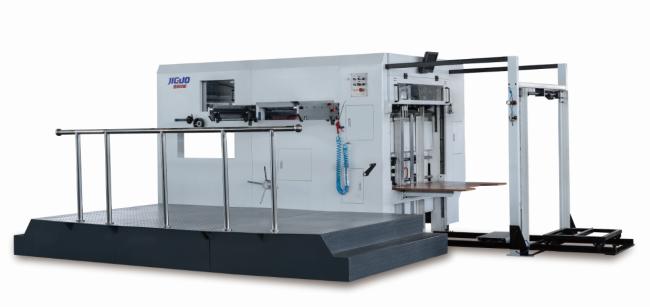

Used BMY-1320 Semi Automatic Die Cutting & Creasing Mahcine, Sheet thickness Cardboard:200-2000gsm; Corrugated＜8mm,Max.pressure 340 Tons

Technical Specifications:

Partial Introduction:

1,Paper Feeding Unit

1) With the unique design of the pre-feeder, side regulation and pedal cylinder control, eliminating manual handing and adjustment cumbersome, time-saving, and improve efficiency.

2) To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

3) Paper delivery part monitoring: there is a video interface showing the circumstance of the paper delivery part, which help the worker find the abnormal situation and take steps.

4)Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

2,Die-cutting Unit

1)The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation

2) The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.

3) The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

4) The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

5) The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

6)The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism

3,Paper Collecting Unit

1) Paper can be collected automatically and orderly.

2) The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.

3)By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time

4,Electrical Control Unit

1) The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan Omron frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.

2) The human-machine interface can display various working conditions, indicate fault positions and give solutions.

The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety
