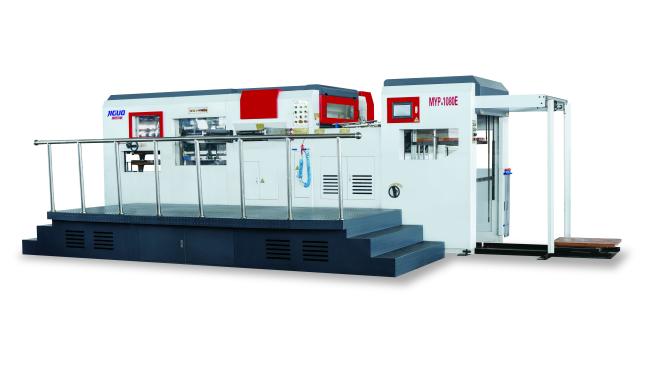

Used JIGUO MYP-1080E Automatic Die Cutting & Stripping Machine,Max.paper size :1080×780mm,Max.cutting speed: 7500s/h

Automatic die-cutting & stripping machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines

Detailed introduction

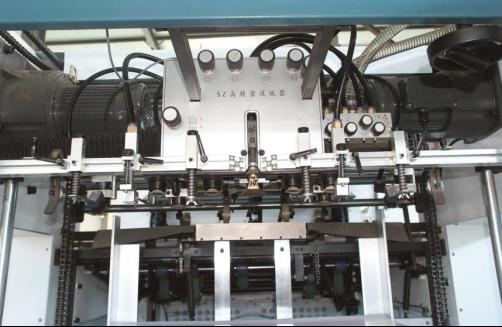

1,Paper Feeding Unit

1) The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.

2) Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

3,Die-cutting Unit

1) The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.

2) This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

3) The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

4) The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

5) The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism

4,Paper Stripping Unit

<img alt="" data-cke-saved-src="/photo/autodiecutter/editor/20260902104034_16364.jpg <p style=" src="https://www.maoyt.com/photo/autodiecutter/editor/20260902104034_16364.jpg%20%3Cp%20style=" margin-left:17.8500pt;"="">

1) By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.

2) The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.

3) The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.

4) The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.
