Powerful Roofing Sheet Roll Forming Machine 15KW High Efficiency
Powerful Roll Forming Machine for YX29.5-285.5-1142 Roof Profile
Product Description:
The Roof Panel Roll Forming Machine is designed to meet the high performance requirements. It adopts the PLC control system, transmission with gear/sprocket, and has a high precision cutting length. This Roof Panel Forming Machine is ideal for producing roof panels with high accuracy, high efficiency and stable performance. With a wide range of applications, it is an ideal choice for roof panel forming operation. Its advanced technology ensures a reliable, efficient and safe operation in various environments.
Features:
- Product Name: Roof Panel Roll Forming Machine for YX29.5-285.5-1142 Roof Profile
- Roller Station: 20 Stations
- Material: Aluzinc
- Transmission: Gear/sprocket
- Forming Speed: 20m/min
- Drive Type: Motor Driving
- Roof Panel/Roofing Sheet Roll Forming Machine

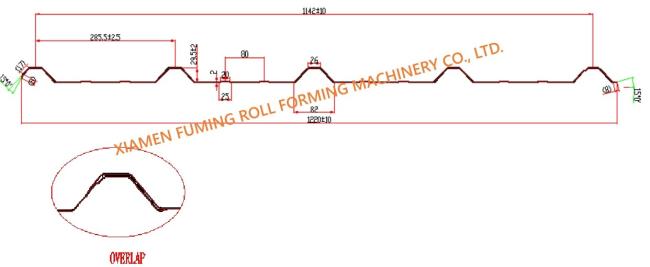

Drawing:
Technical Parameters:
| ROLL FORMING MACHINE FOR YX29.5-285.5-1142 ROOF PROFILE | |
| Material Specification | |
| Thickness | 0.35mm to 0.8mm |
| Effective width | 1142+/-10mm |
| Feeding width | Approx.1335mm |
| Material | Aluzinc |
| Yield strength | 235-550MPa |
| Machine Components | |
| 5Ton*1250mm Hydraulic Decoiler | |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Entry Rollers and Manual Pre-shearing Device | |
| Working thickness | Up to 0.8mm |
| Function | Smart cut control, to cut off the end of the final piece of sheet only |
| Roll Forming Machine | |
| Driving system | Gear/sprocket |
| Polythene Film-On Device | Un-powered, with un-coil-rollers at double sides, with rubber shaft to film-on the film |
| Forming station | 20 stations |
| Roller material | 45# steel, CNC lathes, hard chrome coated |
| Shafts Diameter | Φ95mm |
| Main motor | 15KW |
| Line speed of rollformer | Approx. 20m/min |
| Hydraulic Cutting Device | |
| Cutting type | No Blanking cut |
| Cutting tool material | Cr12, heat treatment |
| Hydraulci pump motor | 5KW |
| PLC Control System | |
| Function | Control the quantity & cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2 mm or customized |
| Control Voltage | 24V |
| Product Rack | Un-powered, three units |
Applications:
XIAMEN FUMING Roof Panel Roll Forming Machine, model number YX29.5-285.5-1142, is a reliable and cost-effective equipment. The voltage of the equipment can be customized.
Support and Services:
We provide comprehensive support for Roof Panel Roll Forming Machines, including:
- Remote technical support
- On-site maintenance and repair services
- Training and consultation to ensure optimal operation
- Warranty service
Our team of experienced professionals will work with you to ensure your Roof Panel Roll Forming Machine is running efficiently and reliably.
If you have any questions or require support for your Roof Panel Roll Forming Machine, please contact us.
FAQ:
Q 1: How can customers be assured that XIAMEN FUMING will deliver qualified roll forming machines?
A 1: Customers can send their technician or entrust a third party to XIAMEN FUMING’s factory to do machine inspection before delivery.
XIAMEN FUMING can send their engineers to the buyer’s factory for machine installation and commissioning.
Our roll forming machine is guaranteed for one year in correct operation and maintenance.
Q 2: How does the customer install the machine when it arrives?
A 2: Our engineers will go to your factory for machine installation and commissioning once you get your machine ready(including electricity, testing material, hydraulic oil, auxiliary staff, transport and lifting device, etc.), they will instruct your technician how to operate the machine. Online supports including video call will be provided if our engineers cannot visit your place because of pandemic.
Q 3: Does XIAMEN FUMING provide customized roll forming machines?
A 3: Yes, we design and make roll forming machines according to the latest market trend and the specific requirements suggested by customers.
