244-5326 194-8300 196-8246 200-3365 TQCAT 311 312 313 315 318C SBS80 SBS120 hydraulic pump
Price:
Negotiable price
MOQ:
1 PCS
Delivery Time:
5-8 Weekdays
Brand:
TQ
Product Description
244-5326 194-8300 196-8246 200-3365 TQTQCAT 311 312 313 315 318C SBS80 hydraulic pump
| PRODUCT DESCRIPTION | ||
| Model: 244-5326 194-8300 196-8246 200-3365 TQTQCAT 311 312 313 315 318C SBS80 hydraulic pump | TQTQCATegory: Hydraulic Pump | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name |
| 1 | 4I-1022 | [2] | ORIFICE |
| 2 | 7Y-4215 | [2] | SPACER |
| 3 | 096-3983 | [1] | RING-RETAINING |
| 4 | 118-4057 | [18] | SPRING |
| 5 | 126-2016 J | [1] | PUMP GP-GEAR (PILOT) |
| 9T-0835 | [1] | RING-RETAINING | |
| 6 | 129-7854 | [1] | CASE |
| 7 | 129-7855 | [1] | GASKET |
| 8 | 129-7857 | [1] | GASKET |
| 9 | 129-7859 | [2] | SET-BEARING |
| 10 | 129-7863 | [1] | COVER |
| 11 | 129-7921 | [2] | RING-RETAINING |
| 12 | 129-7925 | [1] | SEAL-LIP TYPE |
| 13 | 129-7927 | [2] | BEARING |
| 14 | 129-7979 | [4] | DOWEL |
| 15 | 150-5782 | [2] | COVER |
| 16 | 173-3391 | [1] | SHAFT-DRIVE |
| 17 | 173-3427 | [2] | GUIDE-BALL |
| 18 | 173-3473 | [2] | PLATE |
| 19 | 173-3496 | [1] | BARREL AS (DRIVE) |
| 20 | 173-3498 | [1] | BARREL AS (DRIVEN) |
| 21 | 177-2470 | [1] | COVER |
| 22 | 177-2471 | [1] | COVER |
| 23 | 177-8740 | [1] | SEAL-O-RING |
| 24 | 179-9763 | [1] | FLANGE |
| 25 | 191-5709 | [2] | PISTON AS |
| 26 | 192-0573 | [4] | PIN-DOWEL |
| 27 | 194-8301 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 28 | 194-8302 Y | [1] | ACTUATOR GP-PUMP (DRIVEN) |
| 29 | 200-3333 | [1] | HEAD-PUMP |
| 30 | 200-3334 | [1] | COVER |
| 31 | 200-3368 | [1] | SHAFT |
| 32 | 242-6801 | [2] | SWASHPLATE AS |
| (EACH INCLUDES) | |||
| 094-1875 | [1] | DOWEL | |
| 173-3428 | [1] | BUSHING | |
| 242-6803 | [2] | PIN-DOWEL | |
| 33 | 242-6804 | [4] | BEARING |
| 34 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
| 35 | Z | [1] | BODY |
| 36 | 247-8920 | [2] | ORIFICE |
| 37 | 094-1875 | [6] | DOWEL |
| 38 | 094-1882 | [16] | PLUG |
| 39 | 095-0946 | [2] | RING-RETAINING |
| 40 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| 41 | 096-3944 | [1] | SEAL-O-RING |
| 42 | 189-9763 | [8] | SEAL-O-RING |
| 43 | 190-4896 | [2] | PLUG |
| 44 | 193-1736 | [4] | SEAL-O-RING |
| 45 | 3K-0360 | [2] | SEAL-O-RING |
| 46 | 7M-8485 | [2] | SEAL-O-RING |
| 47 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 48 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) |
| 49 | 8T-3338 | [2] | SEAL-O-RING |
| 50 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) |
| 51 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) |
| 52 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 53 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 54 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 55 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 56 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| AVAILABLE REPAIR KIT(S): | |||
| 250-2503 J | [1] | KIT-SEAL (PILOT GEAR PUMP) | |
| 1 | 194-8301 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 2 | 177-2470 | [1] | COVER |
| 3 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 4 | 177-2471 | [1] | COVER |
| 5 | 194-8302 Y | [1] | ACTUATOR GP-PUMP (DRIVEN) |
| 6 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 7 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 8 | 094-1882 | [16] | PLUG |
| 9 | 200-3333 | [1] | HEAD-PUMP |
| 10 | 129-7979 | [4] | DOWEL |
| 11 | 9S-4185 | [3] | PLUG (3/4-16-THD) |
| 12 | 3K-0360 | [3] | SEAL-O-RING |
| 13 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) |
| 14 | 173-3371 | [1] | BODY |
| 15 | 150-5782 | [2] | COVER |
| 16 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 17 | 129-7863 | [1] | COVER |
| 18 | 129-7857 | [1] | GASKET |
| 19 | 179-9763 | [1] | FLANGE |
| 20 | 189-9763 | [8] | SEAL-O-RING |
| 21 | 095-0946 | [2] | RING-RETAINING |
| 22 | 129-7921 | [2] | RING-RETAINING |
| 23 | 150-5785 | [4] | DOWEL |
| 24 | 191-5709 | [2] | PISTON AS |
| 25 | 173-3498 | [1] | BARREL AS |
| 26 | 177-8740 | [1] | SEAL-O-RING |
| 27 | 191-5599 | [2] | PLUG |
| 28 | 160-4409 | [2] | ORIFICE |
| 29 | 200-3334 | [1] | COVER |
| 30 | 8T-3338 | [2] | SEAL-O-RING |
| 31 | 129-7859 | [2] | SET-BEARING |
| 32 | 118-4057 | [18] | SPRING |
| 33 | 7Y-4215 | [2] | SPACER |
| 34 | 173-3427 | [2] | GUIDE-BALL |
| 35 | 173-3473 | [2] | PLATE |
| 36 | 194-8397 | [2] | SWASHPLATE AS |
| (EACH INCLUDES) | |||
| 150-5785 | [1] | DOWEL | |
| 173-3428 | [1] | BUSHING | |
| 192-0573 | [2] | PIN-DOWEL | |
| 37 | 177-2583 | [4] | BEARING |
| 38 | 129-7927 | [2] | BEARING |
| 39 | 129-7855 | [1] | GASKET |
| 40 | 200-3368 | [1] | SHAFT |
| 41 | 7M-8485 | [2] | SEAL-O-RING |
| 42 | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) |
| 43 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| 44 | 4I-1022 | [2] | ORIFICE |
| 45 | 094-1875 | [6] | DOWEL |
| 46 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) |
| 47 | 126-2016 | [1] | PUMP GP-GEAR (PILOT) |
| 48 | 173-3496 | [1] | BARREL AS |
| 49 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| 50 | 129-7854 | [1] | CASE |
| 51 | 173-3391 | [1] | SHAFT-DRIVE |
| 52 | 129-7925 | [1] | SEAL-LIP TYPE |
| 53 | 096-3983 | [1] | RING-RETAINING |
| 54 | 096-3944 | [1] | SEAL-O-RING |
| 57 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 58 | 193-1736 | [4] | SEAL-O-RING |

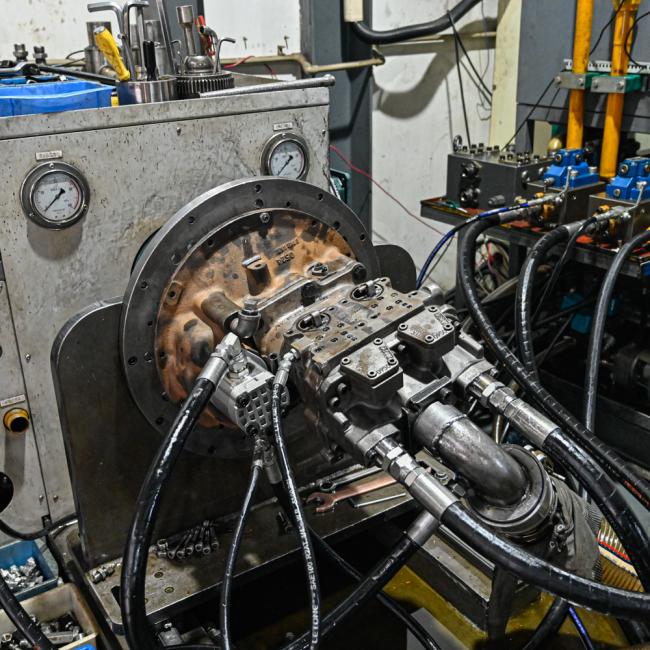

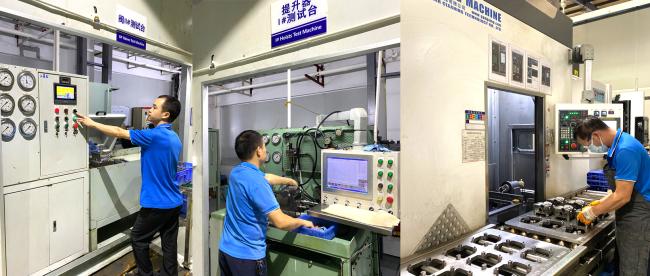

Quality inspection and testing
Why choose us?
1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?
2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?
3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?
4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.
5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
