1539624 153-9624 0R1062 For TQCAT LOADER 834G 834H 836G 836H 988G 988H Hydraulic PUMP GP-PISTON STEERING Aftermarket
1539624 153-9624 0R1062 For TQTQCAT LOADER 834G 834H 836G 836H 988G 988H Hydraulic PUMP GP-PISTON STEERING Aftermarket
| PRODUCT DESCRIPTION | ||
| Model:1539624 153-9624 0R1062 For TQTQCAT LOADER 834G 834H 836G 836H 988G 988H Hydraulic PUMP GP-PISTON STEERING Aftermarket | TQTQCATegory: Hydraulic Pump | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

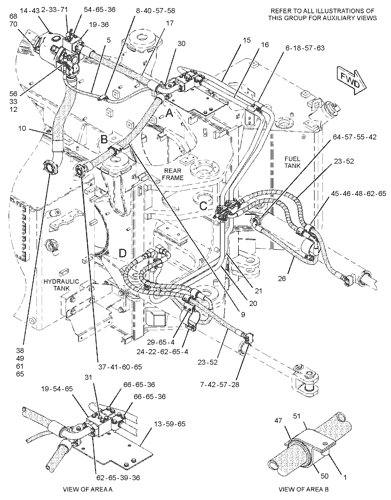

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2M-6102 | [1] | PIPE | |
| 2 | 6V-0852 | [1] | CAP-DUST | |
| 3 | 7Y-3729 | [1] | FLANGE-SPECIAL | |
| 4 | 8F-0492 | [8] | SPACER (0.531X1.125X0.625-IN THK) | |
| 5 | 9U-3430 I | [1] | HOSE AS | |
| 6 | 108-7550 | [2] | CLIP | |
| 7 | 109-5816 | [2] | ELBOW | |
| 8 | 125-2706 | [1] | PLATE AS | |
| 8T-3490 M | [1] | NUT-WELD (M10X1.5-THD) | ||
| 9 | 141-9520 I | [1] | HOSE AS | |
| 10 | 141-9521 I | [1] | HOSE AS | |
| 11 | 143-4158 | [2] | CLIP | |
| 12 | 148-8443 | [1] | TEE AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 7X-2459 | [1] | ADAPTER-TEE | ||
| 13 | 151-2680 | [1] | PLATE AS | |
| 8T-3597 M | [3] | NUT-WELD (M12X1.75-THD) | ||
| 14 | 153-9624 Y | [1] | PUMP GP-PISTON | |
| 15 | 162-2127 | [1] | TUBE AS | |
| 16 | 162-2128 | [1] | TUBE AS | |
| 17 | 162-8455 I | [1] | HOSE AS | |
| 18 | 163-5442 | [1] | BRACKET AS | |
| 19 | 216-9195 | [2] | MANIFOLD | |
| 20 | 252-1285 | [1] | TUBE AS | |
| 21 | 257-7804 | [1] | TUBE AS | |
| 22 | 294-1153 | [2] | BRACKET AS | |
| (EACH INCLUDES) | ||||
| 8T-3597 M | [2] | NUT-WELD (M12X1.75-THD) | ||
| 23 | 294-1154 I | [2] | HOSE AS | |
| 24 | 304-7716 | [4] | SUPPORT AS | |
| (EACH INCLUDES) | ||||
| 6V-8149 M | [2] | NUT (M12X1.75-THD) | ||
| 25 | 315-9202 | [1] | HOSE AS | |
| 26 | 315-9203 | [1] | HOSE AS | |
| 27 | 326-3803 Y | [1] | MANIFOLD GP-HYDRAULIC | |
| 28 | 085-8091 M | [8] | BOLT (M10X1.5X55-MM) | |
| 29 | 096-9986 M | [4] | BOLT (M12X1.75X55-MM) | |
| 30 | 148-8353 | [1] | ELBOW AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9001 | [1] | ELBOW | ||
| 31 | 148-8407 | [1] | PLUG AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 9S-4191 | [1] | PLUG (9/16-18-THD) | ||
| 32 | 153-6236 | [2] | REDUCER AS | |
| (EACH INCLUDES) | ||||
| 6V-8946 | [1] | REDUCER | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 33 | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT (MALE) | |
| (EACH INCLUDES) | ||||
| 6V-3965 | [1] | FITTING (QUICK DISCONNECT) | ||
| 214-7568 | [1] | SEAL-O-RING | ||
| 34 | 1P-3702 | [2] | SEAL-RECTANGULAR | |
| 35 | 1P-3703 | [2] | SEAL-RECTANGULAR | |
| 36 | 1P-3704 | [6] | SEAL-RECTANGULAR | |
| 37 | 1P-4579 | [4] | FLANGE-HALF | |
| 38 | 1P-4584 | [4] | FLANGE-HALF | |
| 39 | 1P-5767 | [4] | FLANGE-HALF | |
| 40 | 1S-0994 | [1] | CLIP (LOOP) | |
| 41 | 4J-0524 | [2] | SEAL-O-RING | |
| 42 | 4J-5267 | [6] | SEAL-O-RING | |
| 43 | 5F-3106 | [1] | SEAL-O-RING | |
| 44 | 5K-9090 | [2] | SEAL-O-RING | |
| 45 | 5P-7466 | [4] | CLIP (SLOT) | |
| 46 | 5P-7467 | [4] | CLIP (TAB) | |
| 47 | 5P-7703 | [1] | GROMMET (52-MM ID) | |
| 48 | 5P-8112 | [4] | GROMMET | |
| 49 | 6J-2680 | [2] | SEAL-O-RING | |
| 50 | 5P-7470 | [1] | CLIP (SLOT) | |
| 51 | 5P-7471 | [1] | CLIP (TAB) | |
| 52 | 6V-9746 | [3] | SEAL-O-RING | |
| 53 | 7X-0584 | [8] | WASHER-HARD (13.5X20.5X2-MM THK) | |
| 54 | 7X-2549 M | [8] | BOLT (M12X1.75X100-MM) | |
| 55 | 8C-3205 | [6] | FLANGE-HALF | |
| 56 | 8C-3451 | [1] | CAP-DUST (HYDRAULIC OIL) | |
| 57 | 8T-4121 | [29] | WASHER-HARD (11X21X2.5-MM THK) | |
| 58 | 8T-4136 M | [1] | BOLT (M10X1.5X25-MM) | |
| 59 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 60 | 8T-4183 M | [12] | BOLT (M12X1.75X40-MM) | |
| 61 | 8T-4184 M | [8] | BOLT (M12X1.75X45-MM) | |
| 62 | 8T-4194 M | [14] | BOLT (M12X1.75X50-MM) | |
| 63 | 8T-4195 M | [12] | BOLT (M10X1.5X30-MM) | |
| 64 | 8T-4196 M | [8] | BOLT (M10X1.5X35-MM) | |
| 65 | 8T-4223 | [68] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 66 | 8T-4648 M | [8] | BOLT (M12X1.75X70-MM) | |
| 67 | 8T-4956 M | [8] | BOLT (M12X1.75X35-MM) | |
| 68 | 8T-7338 M | [2] | BOLT (M16X2X45-MM) | |
| 69 | 9X-6032 M | [8] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 70 | 9X-8257 | [2] | WASHER (17.5X30X3.5-MM THK) | |
| 71 | 165-4931 | [1] | ELBOW AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8077 | [1] | ELBOW |
