UL Certified Hailong Downtube Battery 36V 48V 52V 374WH 410WH
Price:
Negociated
MOQ:
50pcs
Delivery Time:
30-45days
Product Description
36V 48V 52V Electric Bicycle Battery Hailong Down Tube Battery UL-Certified Lithium Ion E-Bike Battery Pack
Product Description
| Battery Specifications | |
| Model Number | TL-EB-H36 |
| Application | Electric Bicycles/Scooters |
| Rated Voltage | 36V |
| Rated Capacity | 13ah/14.5ah/17ah |
| Motor | 374WH/410WH |
| Configuration | 10S5P |
| Battery cells | Chinese cell /Samsung cell |
| Battery Type | Li(NiCoMn)O2 18650 |
| Size | 368mm * 90mm * 90mm |
| Discharge Cut-Off Voltage | 36.4V |
| Charge Voltage | 54.6V |
| Operate Temp. Charge | 0~45 ℃ |
| Operate Temp. Discharge | -20~60℃ |
| Cycle Life | > 800 cycles |
| Weight | 2.5-3.5KG |
| Place of Origin | Shenzhen,China |
| Warranty | 1years |
Product Paramenters
|
Parameter
|
36V19.2AH /36V24AH/36V28.8AH/48V14.4AH/48V19.2AH/48V24AH/52V14.4AH/52V19.2AH
|
|||
|
Cell Capacity
|
4800mah
|
|||
|
Composed Type
|
10S4P/13S3P/10S5P/13S4P/14S3P/10S6P/13s5P/14S4P
|
|||
|
Cell Type
|
Li-Ion 21700
|
|||
|
BMS
|
25Amp/30Amp/40Amp
|
|||
|
Fit Motor Power
|
250W-1500W
|
|||
|
Charging Cut-off Voltage
|
|
|||
|
Discharge Cut-off Voltage
|
28V/36.4V/39V
|
|||
|
Dimensions
|
36*9*9(cm)/36.5*9*11.3(cm)/36.7*9*12.7(cm)
|
|||
|
Battery Weight
|
3.9KG/3.8KG/4.6KG/4.7KG/4KG/5.2KG/5.5KG/5KG
|
|||
|
Charging Current
|
2-5A
|
|||
|
Discharge Temperature
|
-20 TO 65°C
|
|||
|
Charge Temperature
|
0 to 45°C
|
|||
|
Cycle life
|
≥80% capacity after 800cycles
|
|||
![36V 48V 52V Electric Bicycle Battery UL-Certified Lithium Ion E-Bike Battery Pack]()
- 36/48V Capacity 17.5Ah (13S5P) with Usb 2.0 Port suitable for 1000W motor. Max Constant Discharge Current: 25A, Charger: 54.6v 2A
- Black color and LED Power Display,perfect product performance make enjoy long distance cycling. The USB port can charge your phone and other devices

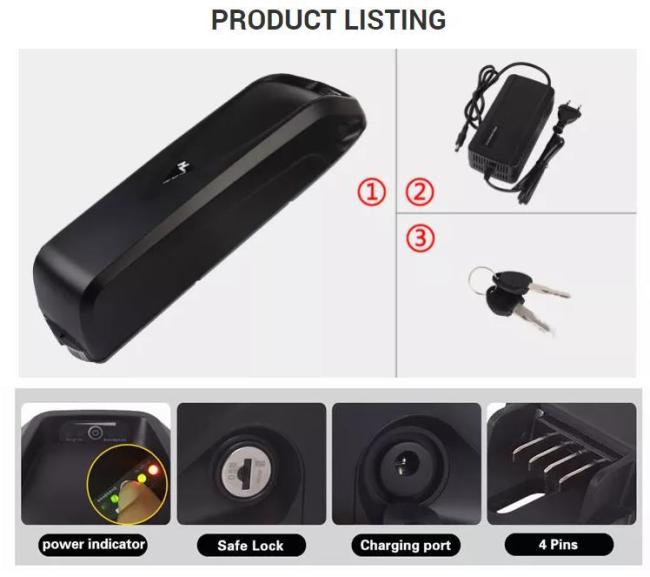

- Improved Jumbo Shark case with ON/OFF Switch and built in USB port ♦ Key lock releases pack from bike
- Comes with a charger, when charging, please open the switch and charge for at least 8 hours, when the red light of charger turns green, it means fully charged.Size of the battery 370mm*90mm*110mm, Includes a USB socket.
