36kv Epoxy Resin Machine
Price:
consult
MOQ:
1 pcs
Delivery Time:
5 days
Brand:
JC
Product Description
Basic Info.
Model NO.
9087
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year
Product Description
Product Description

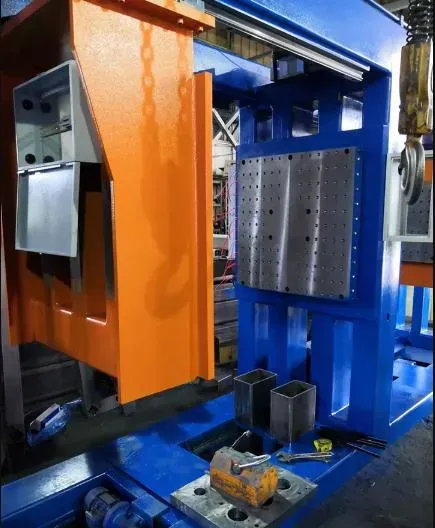

Standard APG clamping machine.
This series belongs to standard APG clamping machine, the min clamp plate size is 600*800mm, and the max clam plate size is 1200*1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, Etc.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.![APG Machine with Epoxy Resin to Make Transformer and Insulator]()
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.

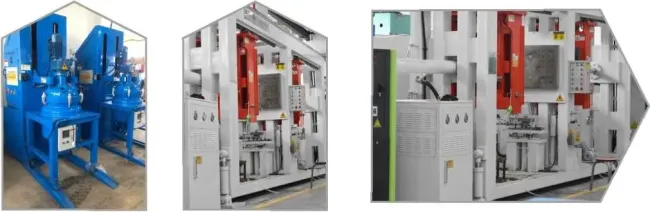

Detailed Images

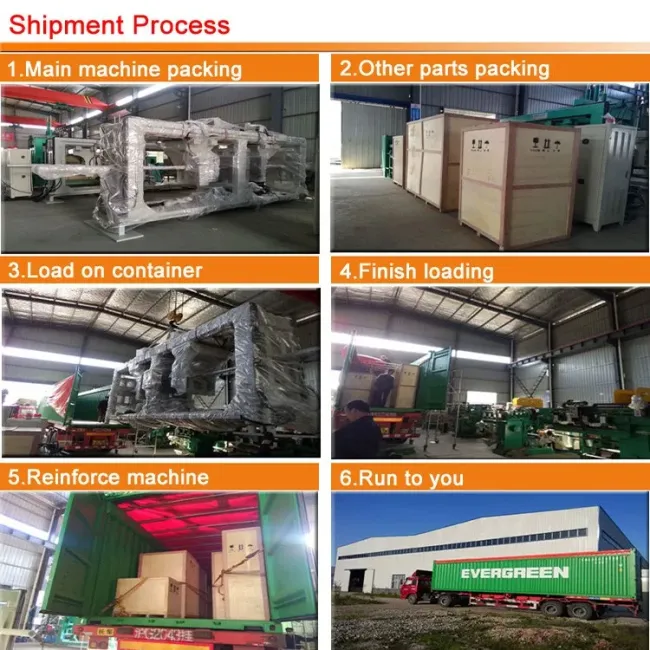

Packing & Delivery
Basic Info.
Model NO.
HAPG-860-2
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year
Product Description
Stabdard APG Clamping Machine HAPG-860/880/1000/1200
![]()
![]()
![]()
![]()
![]()
Machine Technical Parameters
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
![Double-Station APG Clamping Machine with APG Moulds for Electrical Insulation]()
![Double-Station APG Clamping Machine with APG Moulds for Electrical Insulation]()
Machine Technical Parameters
| Model no | HAPG-860-2 |
| clamp plate size | 600X800mm |
| clamp force | 22T |
| Min Max clamp plate strok | 250X1550mm |
| Upper &lower core puller stroke | 800X400mm |
| Heating power | 32KW |
| ydraulic power pack | 7.5KW |
| Horizontal tilting angle | 0-5 |
| mould load weight | 2T |
| Machine weight | 8800KG |
| Machine dimension | 7500x1450X3600mm |
| Model No. | HAPG-880 | HAPG-810 | HAPG-1000 | HAPG-1200 |
| Clamp plate sise | 800x800mm | 1 000x800mm | 1 000x 1 000mm | 1200x 1 000mm |
| Clamp force | 220KN | 250KN | 250KN | 250KN |
| Min Max clamp plate stroke | 240x 1 500mm | 240x 1 550mm | 250x 1600mm | 250x 1600mm |
| Upper&lower core puller stroke | 800x400mm | 800x400mm | 900x450mm | 1 000x450mm |
| Heating power | 32KW | 32KW | 36KW | 36KW |
| Hydraulic power pack | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| ilt angle: vertically and Horizontally | 0-7 | 0-7 | 0-7 | 0-7 |
Mould load weight |
3T | 4T | 4T | 5T |
| Machine weight | 7500KG | 7800KG | 8500KG | 9200KG |
| Machine dimension | 5100xl400x3700mm | 5100x1400x3700mm | 5100x1400x3700mm | 5100Kl400x3700mm |
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
