Servo HAPG Clamping Machine with 1000X1000mm Clamp Plate Size Three Phase and Outdoor Operation
Price:
3000
MOQ:
1
Delivery Time:
Negotiable
Product Description
Stabdard APG Clamping Machine HAPG-860/880/1000/1200
Machine Technical Parameters
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.

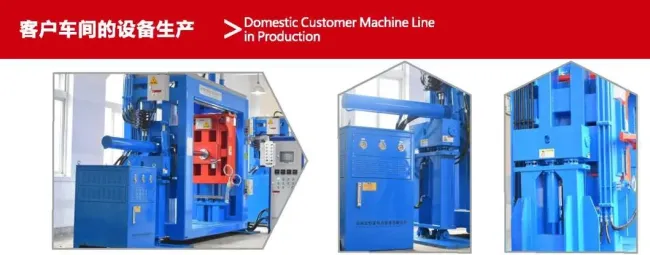

![Servo Hapg Clamping Machine for Greatly Improved Efficiency and Product Quality Advantages]()
![Servo Hapg Clamping Machine for Greatly Improved Efficiency and Product Quality Advantages]()
Machine Technical Parameters
| Model no | HAPG-860-2 |
| clamp plate size | 600X800mm |
| clamp force | 22T |
| Min Max clamp plate strok | 250X1550mm |
| Upper &lower core puller stroke | 800X400mm |
| Heating power | 32KW |
| ydraulic power pack | 7.5KW |
| Horizontal tilting angle | 0-5 |
| mould load weight | 2T |
| Machine weight | 8800KG |
| Machine dimension | 7500x1450X3600mm |
| Model No. | HAPG-880 | HAPG-810 | HAPG-1000 | HAPG-1200 |
| Clamp plate sise | 800x800mm | 1 000x800mm | 1 000x 1 000mm | 1200x 1 000mm |
| Clamp force | 220KN | 250KN | 250KN | 250KN |
| Min Max clamp plate stroke | 240x 1 500mm | 240x 1 550mm | 250x 1600mm | 250x 1600mm |
| Upper&lower core puller stroke | 800x400mm | 800x400mm | 900x450mm | 1 000x450mm |
| Heating power | 32KW | 32KW | 36KW | 36KW |
| Hydraulic power pack | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| ilt angle: vertically and Horizontally | 0-7 | 0-7 | 0-7 | 0-7 |
Mould load weight |
3T | 4T | 4T | 5T |
| Machine weight | 7500KG | 7800KG | 8500KG | 9200KG |
| Machine dimension | 5100xl400x3700mm | 5100x1400x3700mm | 5100x1400x3700mm | 5100Kl400x3700mm |
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
