APG Machine with 1000X1000mm Clamp Plate 22t Clamp Force and 250X1650mm Stroke for Transformers and Insulators
Price:
3000
MOQ:
1
Delivery Time:
Negotiable
Product Description
Product Description

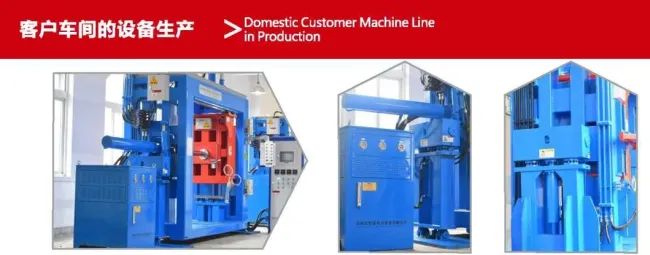

Standard APG clamping machine.
This series belongs to standard APG clamping machine, the min clamp plate size is 600*800mm, and the max clam plate size is 1200*1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, Etc.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.
*Servo HMI APG Clamping Machine
*Application
This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow
*Machine Technical Parameters
|
|
|
|
Clamp Plate Size
|
1000*1200mm
|
|
Clamp Force
|
24T
|
|
Min MAX Clamp Plate Stroke
|
240*1250mm
|
|
Upper&Lower Core Puller Stroke
|
760*350mm
|
|
Heating power
|
24KW
|
|
Hydraulic power pack
|
7.5KW
|
|
Horizontal tilting angle
|
0-5°
|
|
Mould load weight
|
2T
|
|
Machine weight
|
5300KG
|
|
Machine dimension
|
3400*1600*3100mm
|
