Transformer Core Annealing Furnace with 1000X1000mm Clamp Plate 22t Clamp Force and 36kw Heating Power
Price:
3000
MOQ:
1
Delivery Time:
Negotiable
Product Description
KL Vacuum heat treatment equipment
Main technical characteristics
1,KL Vacuum heat treatment furnace series is widely used in electric power, mold manufacturing, auto industry, machinery, electronics and high-tech materials industry.
2,Type of heat treatment equipment: vacuum high-pressure gas que-
nching furnace (6-20bar),Vacuum, vacuum sintering furnace, vacuum oil quenching furnace annealing(tempering)furnace, vacuum core special furnace and so on. Also according to the customer request non-standard vacuum furnace.
3,Equipment composition: heating systems, vacuum systems, vacuum furnace, cooling system, cooling system, pneumatic system, pneumatic system, electric control system (optional touch screen).
4 ,KL Main series vacuum furnaces for the double-layer water cooling
structure, shell made of carbon steel or stainless steel, graphite and
metal of boiler furnace of boiler two: Metal furnace heating element moly- bdenum / Tungsten / Nickel material, heat shield with metal molybdenum / Tungsten / Nickel / The stainless steel material. Temperature control using
Japan Island electric temperature control instrument, the other is controlled by Japan's Mitsubishi series PLC main electrical appliances imported.

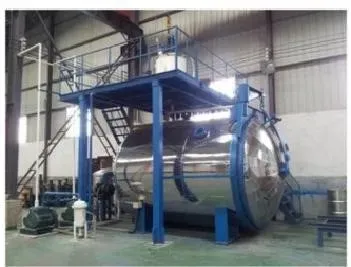

![Transformer Core Annealing Furnace]()
Vacuum heat treatment furnace
Main technical characteristics
1,KL Vacuum heat treatment furnace series is widely used in electric power, mold manufacturing, auto industry, machinery, electronics and high-tech materials industry.
2,Type of heat treatment equipment: vacuum high-pressure gas que-
nching furnace (6-20bar),Vacuum, vacuum sintering furnace, vacuum oil quenching furnace annealing(tempering)furnace, vacuum core special furnace and so on. Also according to the customer request non-standard vacuum furnace.
3,Equipment composition: heating systems, vacuum systems, vacuum furnace, cooling system, cooling system, pneumatic system, pneumatic system, electric control system (optional touch screen).
4 ,KL Main series vacuum furnaces for the double-layer water cooling
structure, shell made of carbon steel or stainless steel, graphite and
metal of boiler furnace of boiler two: Metal furnace heating element moly- bdenum / Tungsten / Nickel material, heat shield with metal molybdenum / Tungsten / Nickel / The stainless steel material. Temperature control using
Japan Island electric temperature control instrument, the other is controlled by Japan's Mitsubishi series PLC main electrical appliances imported.
Vacuum heat treatment furnace
| NO. | Model | Service area mm | Amount of charge KG | The highest temperature | Temperature uniformity | Limited vacuum Pa | Rate of pressure rise(pa/L) | Working pressure(Mpa) |
| 1 | KL-100 | 500X300X300 | 100 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | 0.6-1.0 |
| 2 | KL-200 | 600X400X400 | 200 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | 0.6-1.0 |
| 3 | KL-300 | 750×500×500 | 300 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | 0.6-1.0 |
| 4 | KL-500 | 900X600X600 | 500 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | 0.6-1.0 |
Core special-purpose vacuum annealing furnace
| NO. | Model | Service area mm | Amount of charge KG | The highest temperatur | Temperature uniformi | L imited vacuum Pa | Rate of pressure rise(pa/L) | Working pressure(Mpa |
| 1 | KL-2000 | 1300X1000X1200 | 2000 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | Vacuum |
| 2 | KL-2500 | 1300X1200X1200 | 2500 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | Vacuum |
| 3 | KL-3000 | 2600X1000X1200 | 5000 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | Vacuum |
| 4 | KL-3500 | 1300X1200X120C | 5500 | under 2000 | ±5 | 0.4 or 0.0067 | 0.67 | Vacuum |
Above sizes are reference only and can be customized according to user requirements for various models of vacuum furnace.
