APG Clamping Machine with 1000X1000mm Clamp Plate Size Three Phase Outdoor Operation for Electrical Insulators
Price:
3000
MOQ:
1
Delivery Time:
Negotiable
Product Description
Product Description
Stabdard APG Clamping Machine HAPG-860/880/1000/1200
![Mixer with APG or Casting Machine for Electrical Insulators Producing]()
Machine Technical Parameters
Machine Technical Parameters
| Model no | HAPG-860-2 |
| clamp plate size | 600X800mm |
| clamp force | 22T |
| Min Max clamp plate strok | 250X1550mm |
| Upper &lower core puller stroke | 800X400mm |
| Heating power | 32KW |
| ydraulic power pack | 7.5KW |
| Horizontal tilting angle | 0-5 |
| mould load weight | 2T |
| Machine weight | 8800KG |
| Machine dimension | 7500x1450X3600mm |
| Model No. | HAPG-880 | HAPG-810 | HAPG-1000 | HAPG-1200 |
| Clamp plate sise | 800x800mm | 1 000x800mm | 1 000x 1 000mm | 1200x 1 000mm |
| Clamp force | 220KN | 250KN | 250KN | 250KN |
| Min Max clamp plate stroke | 240x 1 500mm | 240x 1 550mm | 250x 1600mm | 250x 1600mm |
| Upper&lower core puller stroke | 800x400mm | 800x400mm | 900x450mm | 1 000x450mm |
| Heating power | 32KW | 32KW | 36KW | 36KW |
| Hydraulic power pack | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| ilt angle: vertically and Horizontally | 0-7 | 0-7 | 0-7 | 0-7 |
Mould load weight |
3T | 4T | 4T | 5T |
| Machine weight | 7500KG | 7800KG | 8500KG | 9200KG |
| Machine dimension | 5100xl400x3700mm | 5100x1400x3700mm | 5100x1400x3700mm | 5100Kl400x3700mm |
Basic Info.
Model NO.
B999
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JT
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year
Product Description

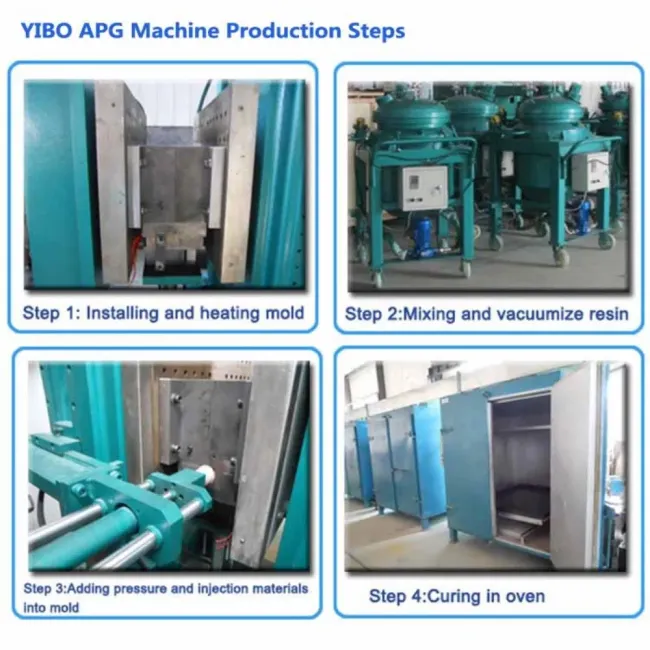

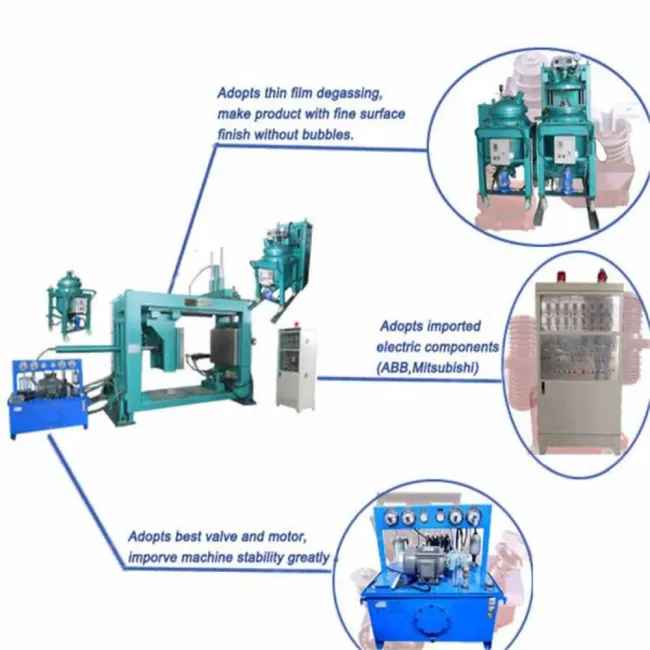

Injection trolley and mixing with APG machine
![Mixer with APG or Casting Machine for Electrical Insulators Producing]()
![Mixer with APG or Casting Machine for Electrical Insulators Producing]()
![Mixer with APG or Casting Machine for Electrical Insulators Producing]()
