Walking Pallet Electric Stacker Forklift 2kw Lift Motor Industrial
Walking Pallet Electric Stacker Forklift 2kw Lift Motor Industrial

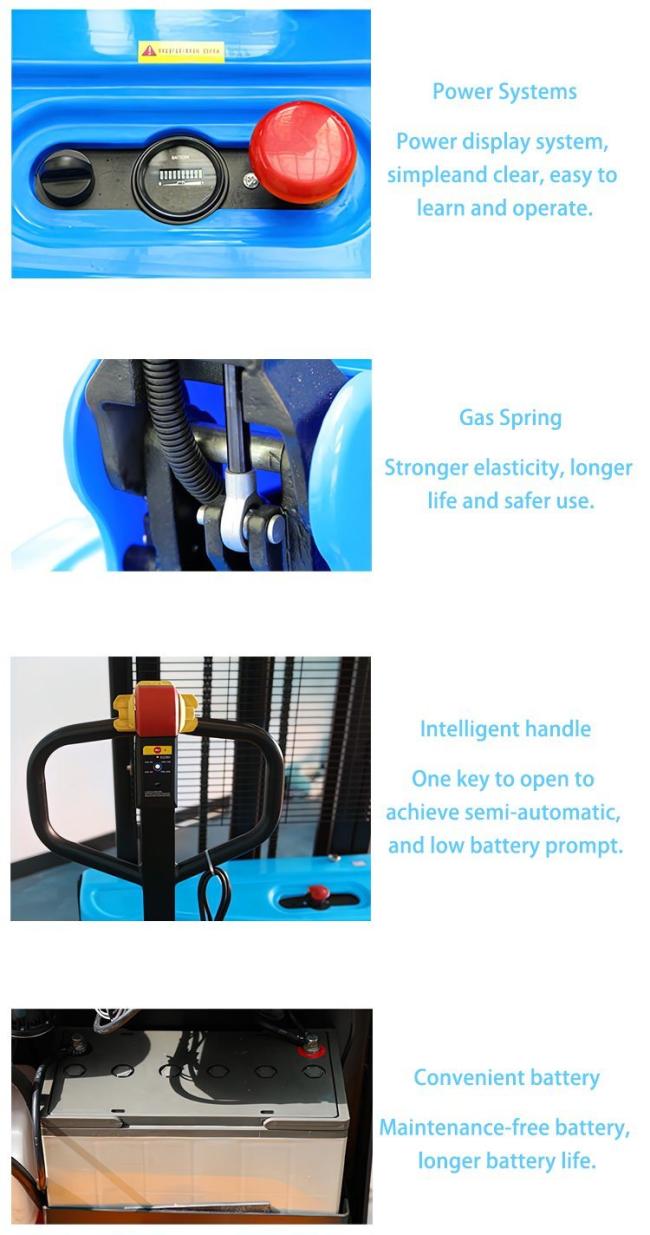

Our electric pallet stackers glide effortlessly thanks to advanced shock absorbers that reduce noise for a quiet operation. The low voltage protection safeguards battery life so you can work longer.
With a four-point low center of gravity design, these stackers provide unmatched stability for confident handling. The compact frame ensures high performance, while regenerative braking assists efficiency.
Lift and slide 1.5 tons smoothly with masts from 1.6 to 3.5 meters. AIDA stackers feature a streamlined structure for easy maintenance.
Get quality and reliability with CE and ISO certified electric pallet stackers from AIDA. Contact us to find your perfect lifting partner.
Technical data
| Model | WDG15QL |
| Load capacity | 1500kg |
| Tyre size, front | φ80×70 |
| Tyre size, rear | φ210×70 |
| Lift height | 1600/2500/3000/3500mm |
| Lowered height | 90mm |
| Overall length | 1750mm |
| Fork dimensions | 1070×142×60mm |
| Distance between fork arms | 550/660mm |
| Turning radius | 1437mm |
| Groung clearance | 30mm |
| Travel speed | 3.5/4 km/h |
| Gradient,Laden/unladen | 3/10% |
| Drive motor | 0.6kw |
| Lift motor | 2kw |
| Battery | lead-acid 24V 65Ah |
