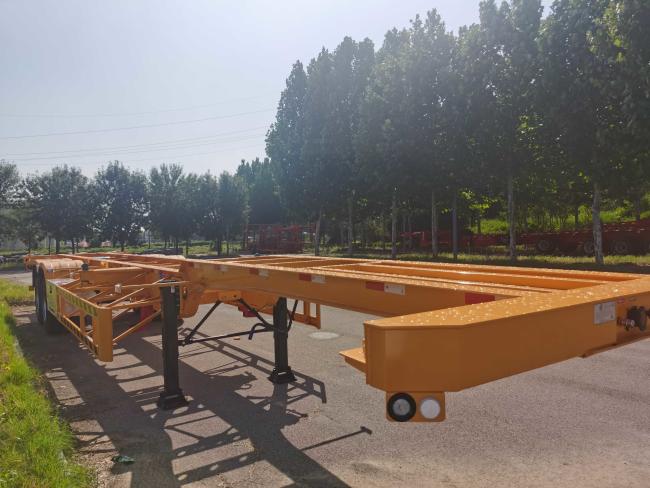

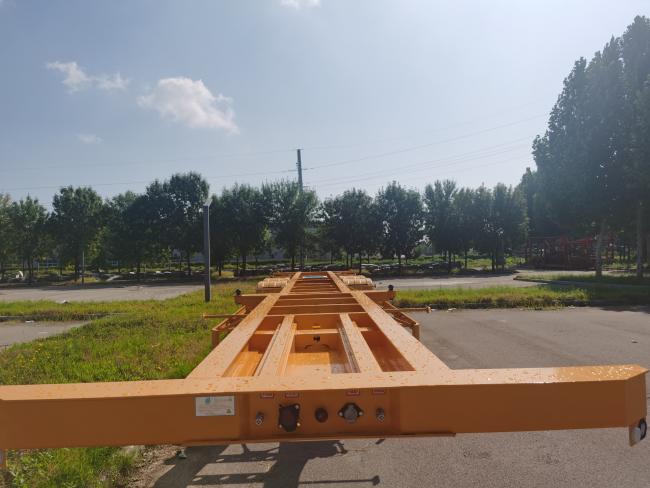

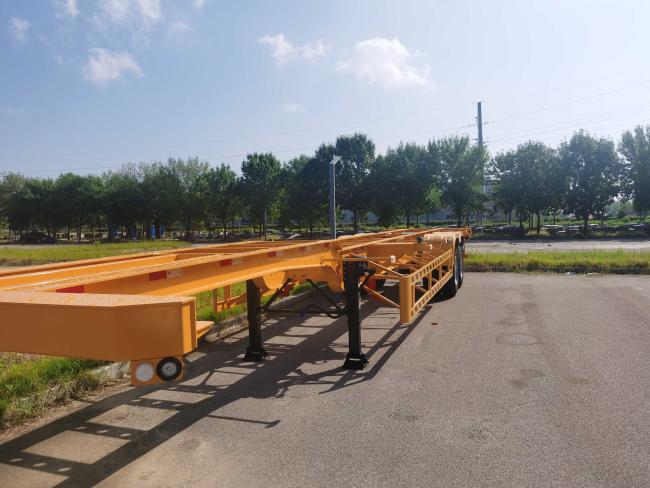

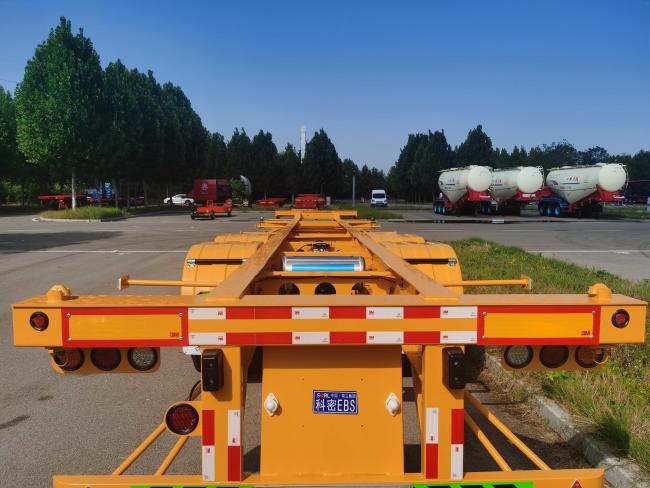

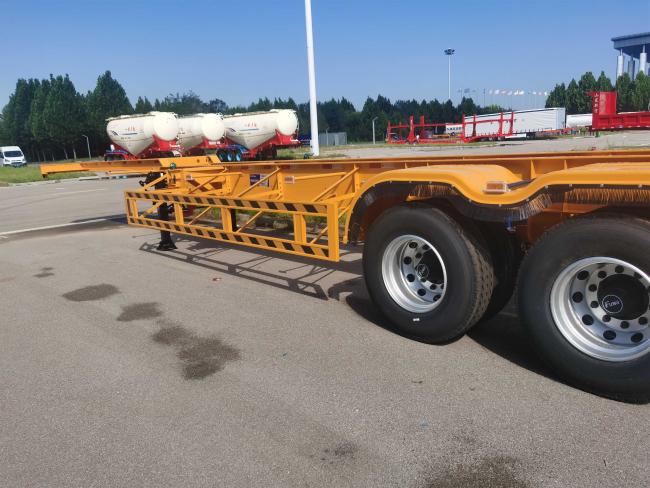

2 Axle 20ft 40ft Skeleton Trailer Container Skeletal Trailer Transporter
High load capacity 2 axle 20ft 40ft container skeleton transporter
It is a versatile transportation tool that is well-suited for logistics and freight industries, capable of handling various cargo and transportation needs.A container skeletal trailer has high load-carrying capacity and flexibility, making it suitable for transporting containers of various sizes and weights, as well as other types of cargo.Equipped with a powerful braking system and stability, the container skeletal trailer ensures that cargo is not damaged during transportation.
| Type | Semi-Trailer |
| Material | Steel |
| Use | Truck Trailer |
| Place of Origin | Shandong |
| Product name | 2-axle Skeleton Semi-trailer |
| Size | 12500*2500*1550(mm) |
| Dimension | 12,500*2438*1450mm(According to customer demand) |
| playload | 30-80T |
| Tare weight | 4.5-7T |
| Function | container truck semi trailer |
| Axle | 2*13Ton Axle FUWA Brand |
| Suspension | mechanical suspension/air suspension |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R2/12.00R20(specificationcan be Optional) |
| Rim | 8.00-20/8.5-20/8.8-20 (Patent of electrophoretic paint) |
| Landing Gear | JOST(D200T)or Yahua brand(two speed or single speed) |
| King pin | 2"(50mm)or3.5"(90mm) JOST |
| Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;Material is Q345 Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235B carbon steel) |
| Cross beam | 80*40mm square tube(Material is Q235B carbon steel) |
| Twist lock | 12sets Enhanced international universal twist locks |
| Brake chamber | 4 units T30/30 spring brake chambers |
| Emergency valve | WABCO/Fitness brand |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1set standard tool box( waterproof type) |
| Spare wheel carrier | 1 pieces( Patent type) |
| Accessory | A set of tools,An instruction manual |
| ABS system | optional |
| Color | According to customer demand |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
