50cbm 80 Tons Tractor Side Dump Semi Trailer 3 Axles Side Tipper Semi Truck Trailer
50cbm 80 tons side dump trailer 3 axles side tipper semi truck trailer

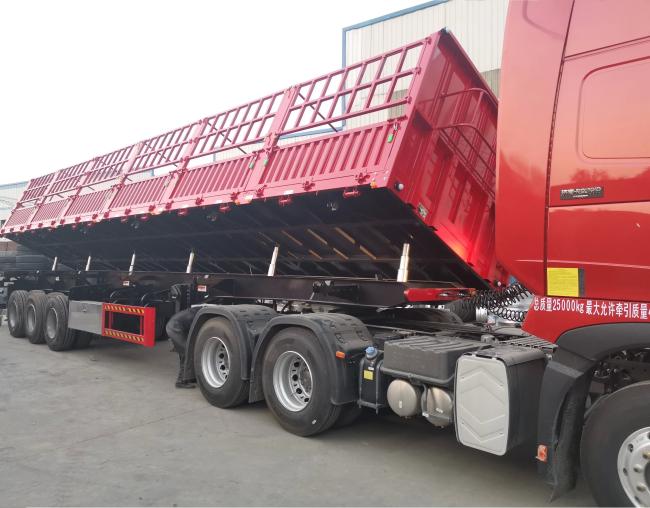

This is an efficient transport vehicle designed for large cargo transportation. It has excellent loading capacity and spacious volume, which can easily carry 80 tons of cargo. The trailer adopts side tilting design and is equipped with side tilting function, which facilitates quick unloading and improves unloading efficiency. The three-axle structure and reliable suspension system ensure stable driving and cargo safety. The trailer also features safety equipment such as reflective devices and brake lights to provide additional driving safety. Whether you are transporting construction materials, bulk goods or other bulky cargo, this truck trailer is your reliable partner!
| Type | Semi-Trailer |
| Max Payload | 40-60Tons |
| Place of Origin | Shandong, China |
| Use | Truck Trailer |
| Material | Steel |
| Size | 13m*2.5m*3.2m (Outside) Or customized tank trailers |
| Box thickness | Bottom 6mm Side 4mm |
| Tare weight | About 8T or customized |
| Main beam | Q345B Carbon steel material |
| Axles | 13T/16T/20T BPW or FUWA |
| Landing Gear | Meheavy duty 28ton landing leg |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| Color | Optional |
| Container locks | 12pcs THT type or Customized |
| Side wall | 1m height or Customized |
| Hydraulic cylinder | 5 side tipping cylinder +1 shifting cylinder, can unload both sides |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension Or Air suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10 Layer |
| Tire | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
| Accessories | Two standard tool box and two spare tires racks |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7 )For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
