3 Axle 6m 20ft Skeleton Trailer Truck 20ft Skeletal Trailer For Sale

Price Negotiable
Price: $9000
MOQ: 1 unit
Delivery Time: 15 working days
Brand: Purple Horn
Product Description

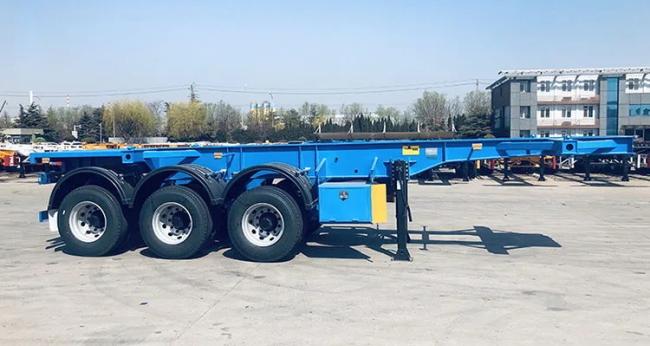

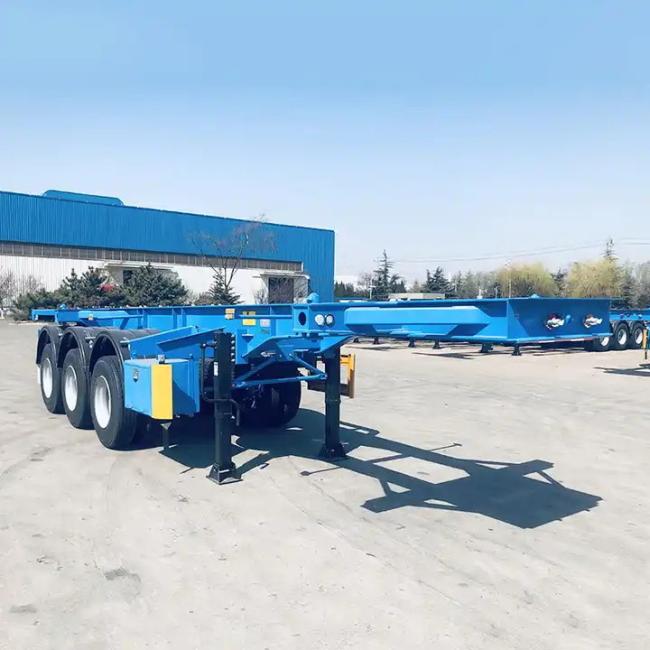

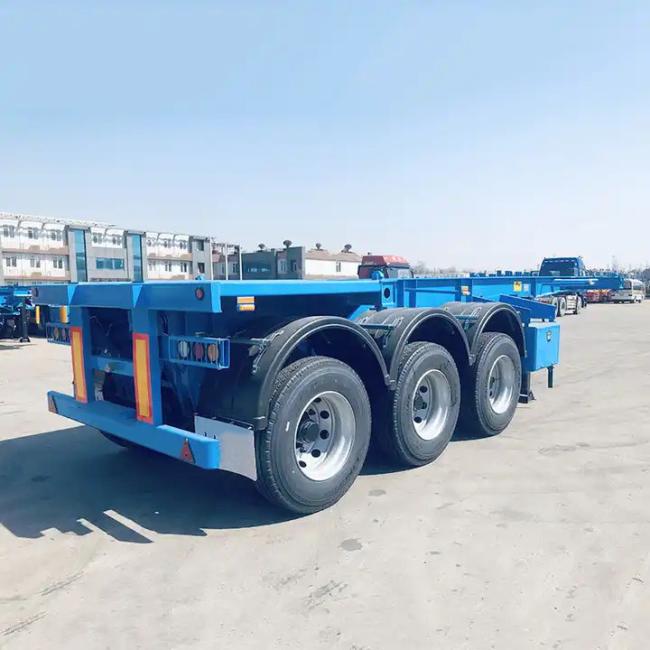

     3 Axle 20ft container chassis skeleton truck semi trailer

This semi-trailer features a skeleton design to accommodate the transportation of 20-foot containers. The skeleton structure provides solid support and the ability to secure the load, ensuring that the container remains stable during transportation. It has good load carrying capacity to safely transport heavy containers.Our 3-axle 20-foot container chassis skeleton truck semi-trailer is a reliable and efficient transportation tool designed for container transportation. It has a solid skeleton design, good loading capacity and multi-axle layout, which can meet customers' needs for safe and reliable transportation of containers and ensure smooth delivery of containers during transportation.

Type Semi-Trailer
Material Steel
Use Truck Trailer
Place of Origin Shandong
Product name 20ft skeleton chassis semi trailer
Size 8250x2500x1550mm
Max Payload 40T
Chassis "I" section Q345 material
Suspension Mechanical / Air Suspension
Axle 2 or 3 axles BPW / FUWA
Tire 8/12 pieces 12R22.5 / 11.00R20 / Customized
Rim 8/12 pieces 8.0-22.5 / 8.8-20
Support Leg 28T Lifting JOST/YAHUA
Kingpin 2"(50mm) / 3.5"(90mm) JOST Bolted Type
Brake System Dual Line Brake Sys, WABCO Valve
Dimension (L*W*H) 7500*2500*1550mm
Main Beam "I" Section 500mm hieght Q345/T700 matirial
Twist Lock 4/8 set ISO Standard
Brake Valve WABCO
Chamber 4/6sets T30/30
Air Tank 28L
Brake Pipe Nylon Wire Pipe
Electric Sys 12v / 24v, 7 line
Color Customized

PACKING AND SHIPPING

We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
