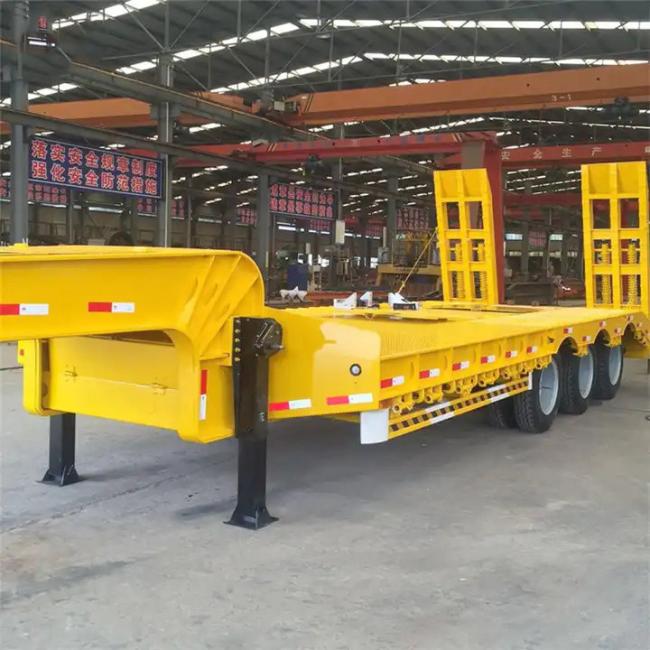

High Quality Lowbed Trailer Transport Heavy Machine Low Bed Truck Semi Trailer With Mechanical Ladder
This 13m low chassis trailer is an efficient tool designed for the transportation of heavy machinery. It has a low chassis design and is equipped with a mechanical ladder for quick and easy loading and unloading of mechanical equipment. Whether you are at a construction site, an industrial park or any other place where you need to transport heavy machinery, this trailer will work excellently.
| Type | Semi-Trailer |
| Max Payload |
80T |
| Place of Origin |
Shandong, China |
| Use | Truck Trailer |
| Material |
Steel |
| Size | 13000*3000*1650mm |
| Product name | Low Bed Semi Trailer |
| Axle | 13/16 Ton Fuwa/BPW |
| Suspension | Heavy Duty Mechanical Suspension |
| Landing Gear | Standard 28Ton |

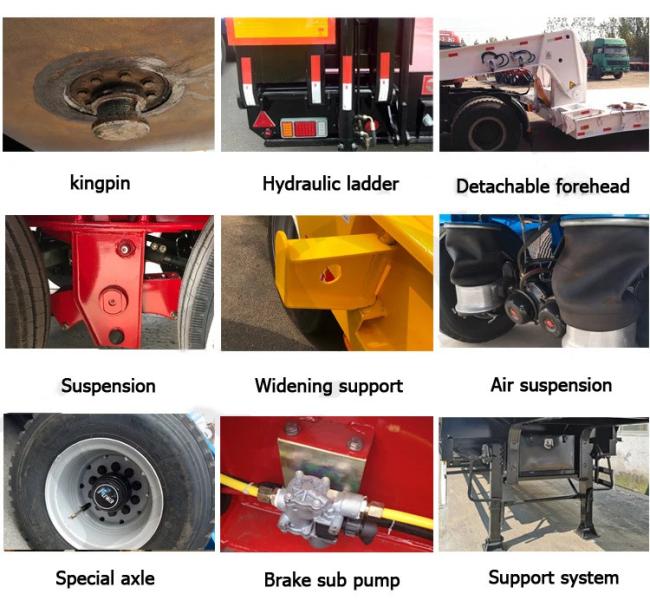

| King Pin | 2"(50mm)or3.5"(90mm) JOST |
| Tire | 11.00r20 12r22.5 315 385 |
| Function | Transport Heavy Duty Equipment |
| Color | Customers Optional |

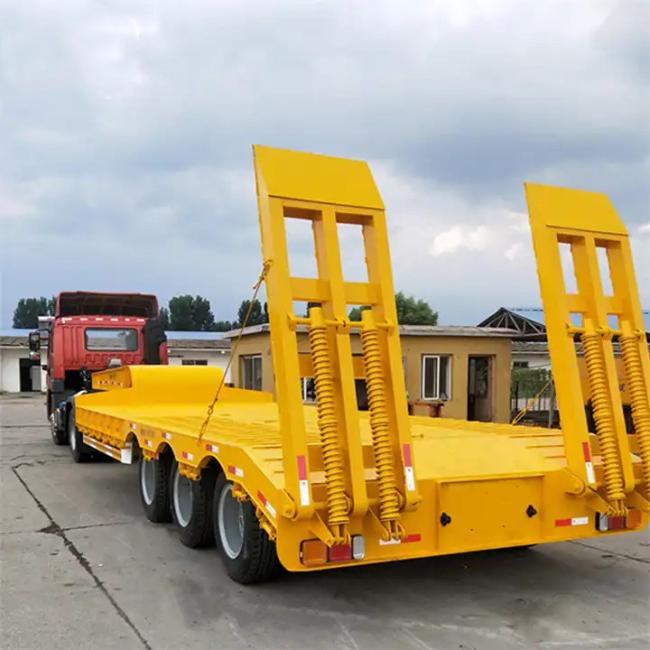

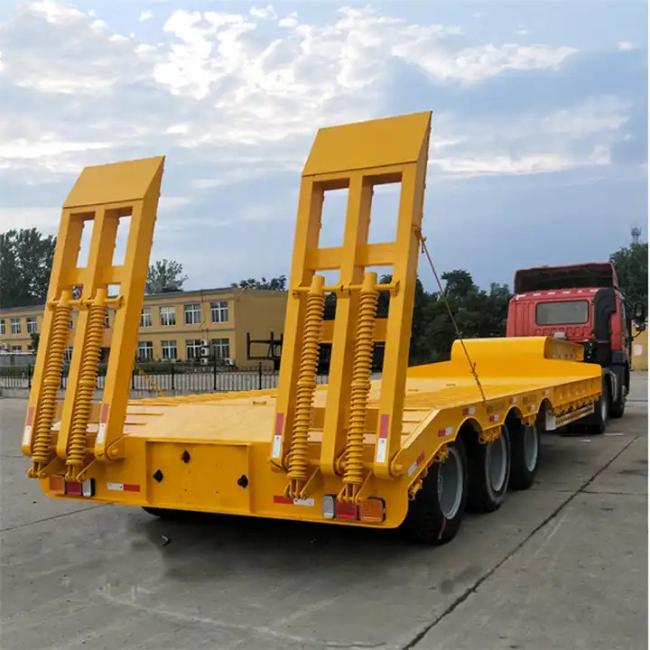

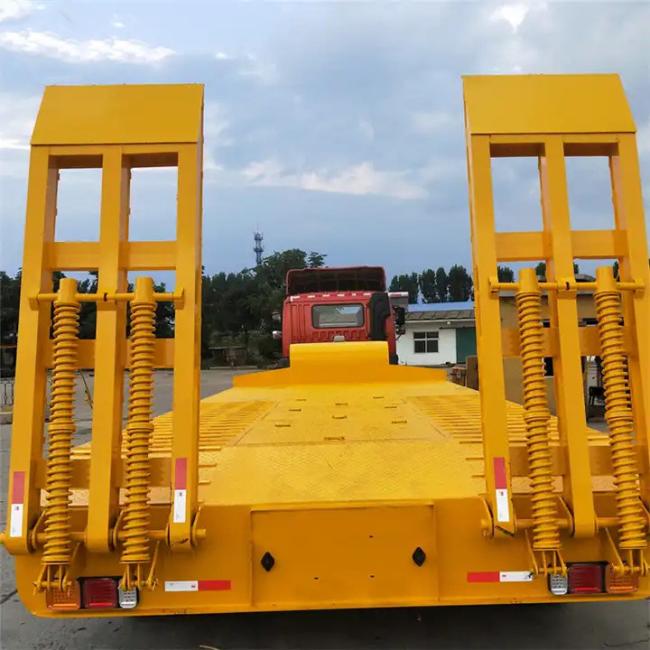

| Ladder | Manual or hydraulic automatic |

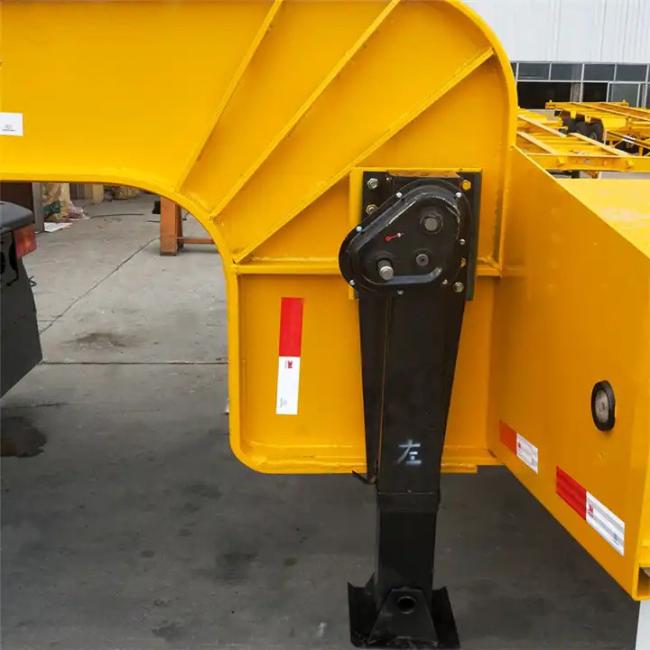

| Support legs | JOST, FUWA or YAHUA brand 28T |
| Wheelbase | 7180/6680/6260+1310+1310mm,Or other |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
| The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;Material is Q345 Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Platform plate | 5/6/7 mm Diamond Plate |
| Brake Chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
| ABS system | optional |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Tool box | 1 sets(waterproof type) |
| Spare tire carrier | 1 sets(Patent type) |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
| Packing | Polish with wax before shipping |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
