Green Nanosecond Glass Laser Drilling Machine 45W For Glass Processing Factory
Green Nanosecond Glass Laser Drilling Machine
For Glass Processing Factory
Scope of application
This glass drilling machine is widely used in household appliances , sanitary ware , decoration , technology , optics , Drilling of glass and ceramic products in construction, photovoltaic and other industries .
Specific materials : ordinary glass , ultra white glass , K9 glass , stone British glass , high borosilicate glass , etc
Description
1 . High performance servo + precision screw + precision guide closed loop control ;
2 . High power pulse laser is used to cut glass with small edge breakage and fast speed .
3 . Using high-precision galvanometer , with telecentric lens , cutting stability , and the maximum close to no taper ;
4 . High negative pressure vacuum machine is used to adsorb products to ensure positioning stability ;

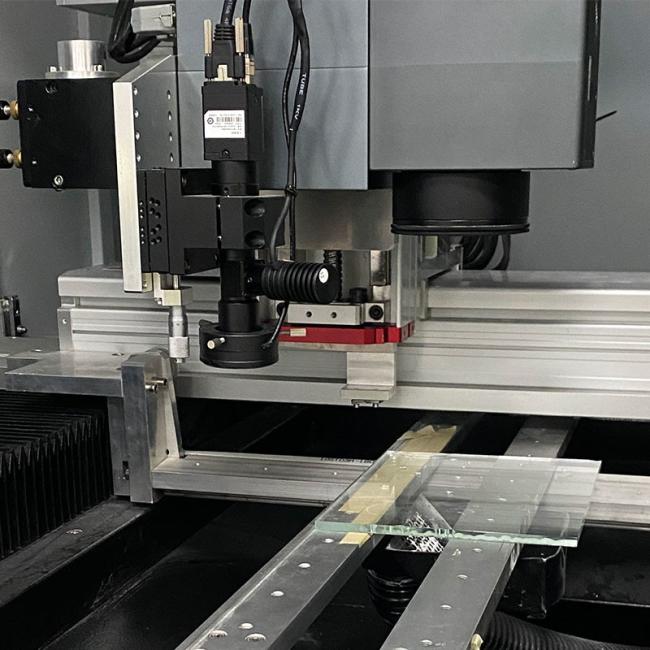

5 . Equipped with automatic alignment CCD and visual lens , can be used for alignment cutting ;
6 . Professional cutting software, easy to learn and use to meet application needs ;
| Technical parameters | |
| Laser type | Green pulse laser |
| Laser power | 10w , 30w , 45w |
| laser wavelength | 532nm |
| laser pulse width | 7ns@100KHz |
| Laser pulse frequency | 50-500KHz |
|
Work Size
|
800*800mm 800*1000mm
|
|
Drilling Thickness
|
＜20mm
|
|
Drilling Φ
|
＜Φ100mm
|
|
Positioning Accuracy
|
±0.02mm
|
|
Chipping
|
≤200μm
|
| Positional accuracy | ±3μm / ±5μm |
| Power | AC220V±5%,L+N+E,<3KW |
| Dimension | 1560mm × 1750mm × 1750mm / 1900mm ×1800mm × 1900mm |
| Weight | 1500kg |
Processing advantage
|
Applicable Industries
|
||
|
Glass
Optic/UTG/Willow/Brittle/Biomedical Glass
|
Real Estate
Architectural decoration bathroom glass
|
Automobile
Car glass/Instrumentation panel
|
|
Communication Media
Mobile/Watch /Sapphire cover/ Camera/CCTV Lens
|
Home Appliance
Home appliance glass panel lighting glass
|
New Energy
Photovoltaic glass
|
FAQ
1 . Q: What glass material can drilled with the laser machine?
2 . Q: What are the requirements for the working environment when using the machine?
3 . Q: How about the service life of the machine? And what is the consumables?
4 . Q: How about after-sales service?
5 . Q: How about the chipped edge of the glass after using the laser machine?
