ACSR Linnet 336.4mcm Ibis Hawk 477mcm Aluminium Overhead Line Conductor
Product Description
1.Details of ACSR Conductor
1)ACSR is widely used in power transmission lines with various voltage levels, and also used in power
lines across great rivers, heavy ice area, etc. with special geographical situation.
2)ACSR Conductor has excellent advantage of high strength, large current carrying capacity and good
catenaries property as well as wear-resistance, anti-crush and corrosion-proof with simple structure,
convenient installation and maintenance, low cost for the line, large transmission capacity.

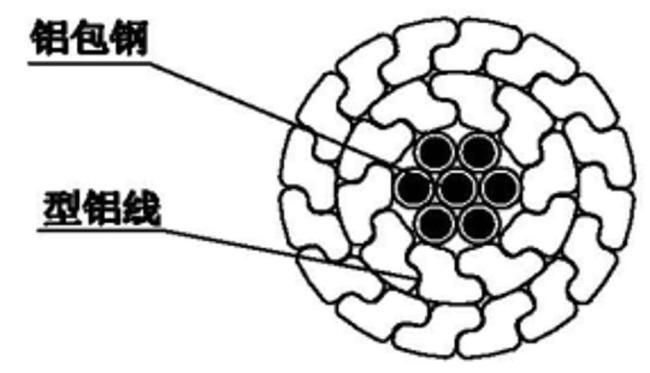

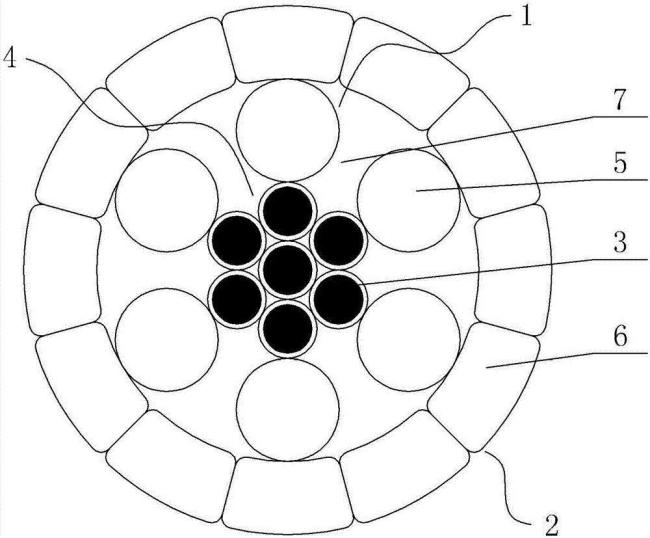

3)ACSR consists of a galvanized steel core of 1 wire , 7 wires or 19 wires surrounded by concentric layer
of aluminium wire . When a conductor with a high current carrying capacity and comparatively low strength
is required , special constructions are available with a high aluminium content.
4)Protection against Corrosion :A coating of non-oxidizing grease is normally applied to the steel cores of all
conductors, in addition to the protection offered by the galvanizing of the steel wires. One or more layers of the
aluminium wires can, if required, be supplied partially or fully greased.
2.Technical data sheet of ACSR conductor
| ASTM-B 232/B 232M METRIC UNITS | ||||||||||
| Code Name | Size | Stranding | Section | Overall Diameter |
Conductor Weight |
Rated Strength |
||||
| No x Ømm | mm2 | mm | kg/km | |||||||
| AWG-MCM | Al. | Steel | Total | Al. | Total | Core | Total | Al. | kN | |
| TURKEY | 6 | 6X1,68 | 1x1,68 | 15,52 | 13,3 | 5,04 | 1,68 | 53,8 | 36,5 | 5,295 |
| SWAN | 4 | 6X2,12 | 1X2,12 | 24,71 | 21,18 | 6,36 | 2,12 | 85,4 | 58 | 8,28 |
| SWANATE | 4 | 7X1,96 | 1x2,61 | 26,47 | 21,12 | 6,53 | 2,61 | 99,7 | 58 | 10,5 |
| SPARROW | 2 | 6X2,67 | 1X2,67 | 39,2 | 33,6 | 8,01 | 2,67 | 135,9 | 92,3 | 12,68 |
| SPARATE | 2 | 7X2,47 | 1X3,30 | 42,09 | 33,54 | 5,24 | 3,3 | 158,8 | 92,3 | 6,2 |
| ROBIN | 1 | 6X3,00 | 1X3,00 | 49,48 | 42,41 | 9 | 3 | 171,4 | 116,4 | 15,8 |
| RAVEN | 1/0 | 6X3,37 | 1X3,37 | 62,44 | 53,52 | 10,11 | 3,37 | 216,1 | 146,7 | 19,49 |
| QUAIL | 2/0 | 6X3,78 | 1X3,78 | 78,55 | 67,33 | 11,34 | 3,78 | 272,5 | 185 | 23,63 |
| PIGEON | 3/0 | 6X4,25 | 1x4,25 | 99,31 | 85,12 | 12,75 | 4,25 | 343,5 | 233,2 | 29,46 |
| PENGUIN | 4/0 | 6X4,77 | 1X4,77 | 125,09 | 107,22 | 14,31 | 4,77 | 433,2 | 294,2 | 37,16 |
| WAXWING | 266,8 | 18X3,09 | 1X3,09 | 142,5 | 135 | 15,45 | 3,09 | 431,6 | 372,9 | 30,62 |
| PARTRIDGE | 266,8 | 26X2,57 | 7X2,00 | 156,9 | 134,9 | 16,28 | 6 | 546,1 | 374,3 | 50,28 |
| ORSTRICH | 300 | 26X2,73 | 7X2,12 | 176,9 | 152,2 | 17,28 | 6,36 | 614,6 | 421,3 | 56,52 |
| MERLIN | 336,4 | 18X3,47 | 1X3,47 | 179,7 | 170,2 | 17,35 | 3,47 | 543,2 | 469,7 | 38,36 |
| LINNET | 336,4 | 26X2,89 | 7X2,25 | 198,4 | 170,6 | 18,31 | 6,75 | 689 | 472,2 | 62,75 |
| ORIOLE | 336,4 | 30X2,69 | 7X2,69 | 210,3 | 170,5 | 18,83 | 8,07 | 784,3 | 473,2 | 76,98 |
| CHICKADEE | 397,5 | 18X3,77 | 1X3,77 | 212,1 | 200,9 | 18,85 | 3,77 | 642,9 | 555,5 | 44,23 |
| BRANT | 397,5 | 24X3,27 | 7X2,18 | 227,7 | 201,6 | 19,62 | 6,54 | 762 | 558,1 | 64,97 |
| IBIS | 397,5 | 26X3,14 | 7X2,44 | 234 | 201,3 | 19,88 | 7,32 | 814,0 | 558,2 | 72,53 |
| LARK | 397,5 | 30X2,92 | 7X2,92 | 247,8 | 200,9 | 20,44 | 8,76 | 927,1 | 555,1 | 90,3 |
| PALICAN | 477 | 18X4,14 | 1X4,14 | 255,8 | 242,3 | 20,7 | 4,14 | 770,9 | 666,4 | 52,51 |
| FLICKER | 477 | 26X3,58 | 7X2,39 | 273 | 241,6 | 21,19 | 7,17 | 915,2 | 670,1 | 76,54 |
| HAWK | 477 | 26X3,44 | 7X2,67 | 280,8 | 241,6 | 21,77 | 8,01 | 977,7 | 669,7 | 86,77 |
| HEN | 477 | 30X3,20 | 7X3,20 | 297,6 | 241,3 | 22,4 | 9,6 | 1.111,7 | 671 | 105,91 |
| OSPREY | 556,5 | 18X4,47 | 1X4,47 | 298,2 | 282,5 | 22,35 | 4,47 | 898,9 | 777 | 60,96 |
| PARAKEET | 556,5 | 24X3,87 | 7X2,58 | 318,9 | 282,3 | 23,22 | 7,74 | 1.067,0 | 781,6 | 88,11 |
| DOVE | 556,5 | 26X3,72 | 7X2,89 | 328,5 | 282,6 | 23,55 | 6,67 | 1.140,0 | 781,3 | 105,57 |
| EAGLE | 556,5 | 27X3,30 | 7X3,46 | 347,9 | 282,1 | 24,27 | 1,38 | 1.297,7 | 983,2 | 123,71 |
| PEACOCK | 605 | 24X4,03 | 7X2,65 | 345,9 | 306,1 | 24,19 | 8,07 | 1.160,8 | 849,8 | 96,12 |
| SQUAB | 605 | 26X3,87 | 7X3,01 | 355,6 | 305,8 | 24,51 | 9,03 | 1.239,7 | 849,8 | 108,13 |
| WOODDUCK | 605 | 30X3,61 | 7X3,61 | 378,8 | 307,1 | 25,27 | 10,83 | 1.410,8 | 851,2 | 128,6 |
| TEAL | 605 | 30X3,61 | 19X2,16 | 376,1 | 307,1 | 25,24 | 10,8 | 1.398,9 | 851,5 | 135,5 |
| KINGBIRD | 636 | 18X4,78 | 1x4,78 | 340,9 | 323 | 23,9 | 4,78 | 1.026,9 | 887,4 | 69,86 |
| ROOK | 636 | 24x4,14 | 7x2,76 | 365 | 323,1 | 24,84 | 8,28 | 1.281,8 | 892,9 | 97,9 |
| GROSBEAK | 636 | 26x3,97 | 7x3,09 | 321,8 | 251,5 | 9270 | 1.302,2 | 892,6 | 483 | 1.302,2 |
| SCOTER | 636 | 30x3,70 | 7x3,70 | 397,9 | 322,6 | 25,9 | 11,1 | 1.477,8 | 891,4 | 135,27 |
| EGRET | 636 | 30x3,70 | 19x2,22 | 396,1 | 322,6 | 25,9 | 11,1 | 1.470,3 | 895 | 140,17 |
| SWIFT | 636 | 36x3,38 | 1x3,38 | 332 | 323 | 23,66 | 3,58 | 958,4 | 888,4 | 61,41 |
| FLAMINGO | 666,6 | 24x4,23 | 7x2,82 | 381 | 337,3 | 25,38 | 8,46 | 1.276,9 | 935,2 | 105,46 |
| GANNET | 666,6 | 26x4,07 | 7x3,16 | 393,2 | 338,3 | 25,76 | 9,48 | 1.364,7 | 936,1 | 117,48 |
| STILT | 715,5 | 24X4,39 | 7X2,92 | 410,2 | 363,3 | 26,32 | 8,76 | 1.372,1 | 1.004,5 | 113,47 |
| STARLING | 715,5 | 26X4,21 | 7X3,28 | 421 | 361,9 | 26,68 | 9,84 | 1.465,9 | 1.004,5 | 126,37 |
| REDWING | 715,5 | 30X3,92 | 19X2,35 | 444,5 | 362,1 | 27,43 | 11,75 | 1.653,4 | 1.007,1 | 153,96 |
| CUCKOO | 795 | 24X4,62 | 7X3,08 | 454,5 | 402,3 | 27,72 | 9,24 | 1.522,4 | 1.115,2 | 124,15 |
| DRAKE | 795 | 26X4,44 | 7X3,45 | 468 | 402,6 | 28,11 | 10,35 | 1.628,1 | 1.115,8 | 140,17 |
| COOT | 795 | 36X3,77 | 1X3,77 | 413,1 | 401,9 | 26,39 | 3,77 | 1.198,0 | 1.110,2 | 74,76 |
| TERN | 795 | 45X3,38 | 7X2,25 | 431,6 | 403,8 | 27,03 | 6,75 | 1.333,4 | 1.116,1 | 98,34 |
| CONDOR | 795 | 54X3,08 | 7X3,08 | 454,5 | 402,3 | 27,72 | 9,24 | 1.513,9 | 1.116,1 | 125,48 |
| MALLARD | 795 | 30X4,14 | 19X2,48 | 495,6 | 403,8 | 28,96 | 12,4 | 1.837,9 | 1.118,7 | 170,87 |
| RUDDY | 900 | 45X3,59 | 7X2,40 | 487,2 | 455,5 | 28,74 | 7,2 | 1.510,5 | 1.263,5 | 108,58 |
| CANARY | 900 | 54X3,28 | 7X3,28 | 515,4 | 456,3 | 29,52 | 9,84 | 1.724,8 | 1.263,5 | 141,95 |
| CATBIRD | 954 | 36X4,14 | 1x4,14 | 498,1 | 484,6 | 28,98 | 4,14 | 1.437,6 | 1.333,4 | 88,11 |
| RAIL | 954 | 45X3,70 | 7X2,47 | 517,3 | 483,8 | 29,61 | 7,41 | 1.599,8 | 1.339,4 | 115,25 |
| CARDINAL | 954 | 54X3,38 | 7X3,38 | 547,3 | 484,5 | 30,42 | 10,14 | 1.829,0 | 1.339,8 | 150,4 |
| TANAGER | 1.033,5 | 36X4,30 | 1X4,30 | 537,3 | 522,8 | 30,1 | 4,3 | 1.556,6 | 1.433,5 | 95,23 |
| ORTOLAN | 1.033,5 | 45X3,85 | 7X2,57 | 560,2 | 523,9 | 30,81 | 7,71 | 1.733,7 | 1.451,0 | 123,26 |
| CURLEVV | 1.033,5 | 54X3,52 | 7X3,52 | 593,6 | 525,5 | 31,68 | 10,56 | 1.980,8 | 1.451,0 | 162,86 |
| BLUEJAY | 1.113,0 | 45X4,0 | 7X2,66 | 604,4 | 565,5 | 31,98 | 7,98 | 1.867,7 | 1.562,6 | 132,6 |
| FINCH | 1.113,0 | 54X3,65 | 19X2,19 | 636,6 | 565 | 32,85 | 10,95 | 2.129,6 | 1.570,0 | 174 |
| BUNTING | 1.192,5 | 45X4,14 | 7X2,76 | 647,7 | 605,8 | 33,12 | 8,28 | 2.000,1 | 1.674,2 | 142,4 |
| GRACKLE | 1.192,5 | 54X3,77 | 19X2,27 | 679,7 | 602,8 | 33,97 | 11,35 | 2.281,4 | 1.681,7 | 186,45 |
| SKYLARK | 1.272,0 | 36X4,78 | 1X4,78 | 664 | 646 | 33,46 | 4,78 | 1.916,8 | 1.776,9 | 117,48 |
| BITTERN | 1.272,0 | 45X4,27 | 7X2,85 | 489,1 | 644,4 | 34,17 | 8,55 | 2.134,1 | 1.785,8 | 151,74 |
| PHEASANT | 1.272,0 | 54X3,90 | 19X2,34 | 726,8 | 645,1 | 35,1 | 11,7 | 2.423,5 | 1.783,8 | 199,96 |
| DIPPERF | 1.351,5 | 45X4,40 | 7X2,93 | 731,4 | 684,2 | 35,19 | 8,79 | 2.266,5 | 1.898,5 | 161,08 |
| MARTIN | 1.351,5 | 54X4,02 | 19X2,41 | 772,1 | 685,4 | 36,17 | 12,05 | 2.585,0 | 1.906,4 | 206,03 |
| BOBOLINK | 1.431,0 | 45X4,53 | 7X3,02 | 775,4 | 725,3 | 36,24 | 9,06 | 2.400,4 | 2.009,1 | 170,43 |
| PLOVER | 1.431,0 | 54X4,14 | 19X2,48 | 818,7 | 726,9 | 37,24 | 12,4 | 2.738,3 | 2.019,0 | 218,48 |
| NUTHATCH | 1.510,5 | 45X4,65 | 7X3,10 | 817 | 764,2 | 37,2 | 9,3 | 2.532,9 | 2.120,7 | 178,44 |
| PARROT | 1.510,5 | 54X4,25 | 19X2,55 | 863,1 | 766,1 | 38,25 | 12,75 | 2.890,1 | 2.131,1 | 230,05 |
| LAPWING | 1.590,0 | 45X4,78 | 7X3,18 | 863,1 | 807,5 | 38,22 | 9,54 | 2.666,8 | 2.232,3 | 187,78 |
| FALCON | 1.590,0 | 54X4,36 | 19X2,62 | 908,6 | 806,2 | 39,26 | 13,1 | 3.041,9 | 2.242,7 | 242,51 |
| CHUKAR | 1.780,0 | 84X3,70 | 19X2,22 | 976,7 | 903,2 | 42,7 | 11,1 | 3.086,5 | 2.510,6 | 226,94 |
| BLUEBIRD | 2.156,0 | 84X4,07 | 19X2,44 | 1.181,6 | 1.092,8 | 44,76 | 12,2 | 3.737,8 | 3.040,4 | 268,32 |
| KIWI | 2.167,0 | 72X4,41 | 7X2,94 | 1.147,3 | 1.099,8 | 44,1 | 8,82 | 3.427,3 | 3.056,7 | 221,6 |
| THRASHER | 2.312,8 | 76X4,43 | 19X2,07 | 1.235,3 | 1.711,4 | 45,79 | 10,35 | 3.760,7 | 3.262,1 | 252,3 |
| GROUSE | 80,0 | 8x2,54 | 1x4,24 | 54,66 | 40,54 | 9,32 | 4,24 | 221,7 | 111,8 | 23140 |
| PETREL | 101,8 | 12x2,34 | 7x2,34 | 81,71 | 51,61 | 11,70 | 7,02 | 378,11 | 142,9 | 42280 |
| MINORCA | 110,8 | 12x2,44 | 7x2,44 | 88,84 | 56,11 | 12,20 | 7,32 | 411,6 | 155,5 | 50280 |
| LEGHORN | 134,6 | 12x2,69 | 7x2,69 | 108,00 | 68,20 | 13,45 | 8,07 | 500,0 | 189,0 | 60520 |
| GUINEA | 159,0 | 12x2,92 | 7x2,92 | 127,23 | 80,36 | 14,60 | 8,76 | 590,5 | 223,2 | 68080 |
| DOTTEREL | 176,9 | 12x3,08 | 7x3,08 | 141,56 | 89,41 | 15,40 | 9,24 | 656,9 | 248,4 | 76980 |
| DORKING | 190,8 | 12x3,20 | 12x3,20 | 152,81 | 96,51 | 16,00 | 9,60 | 708,8 | 267,9 | 83210 |
| BRAHMA | 203,2 | 16x2,86 | 19x2,48 | 194,57 | 102,79 | 18,12 | 12,40 | 1.007,2 | 285,3 | 126370 |
| COCHIN | 211,3 | 12x3,37 | 7x3,37 | 169,47 | 107,04 | 16,85 | 10,11 | 785 | 296,6 | 92110 |
Main products: 220kv and below power cables, rubber sheathed cables, photovoltaic wires, photovoltaic special cables, control cables, computer cables, steel core aluminum stranded wires, pre-branch cables, low voltage halogen-free environmentally friendly cables, coal mining cables, fluorosilicone insulation High temperature resistant cables, shield cables, cables for ship electrical equipment, photoelectric composite cables, high-strength towing cables, cables for photovoltaic systems, cables for rail transit vehicles with AC rated voltage 3kv and below, local area network cables, inverter cables, radio frequency cables , nuclear power plant cables, port machinery cables, mineral insulated cables, submarine cables and more than 100 varieties
1.30 years production experience
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
ACSR (Aluminum Conductor Steel Reinforced) Linnet 336.4MCM and ACSR Ibis Hawk 477MCM are types of overhead conductors commonly used in electrical transmission and distribution systems.
ACSR Linnet 336.4MCM:
Linnet is the specific name given to this type of ACSR conductor.
The "336.4MCM" refers to the size or cross-sectional area of the conductor, which is measured in thousands of circular mils (MCM). In this case, it has a cross-sectional area of 336.4 thousand circular mils.
ACSR conductors are composed of a central steel core surrounded by one or more layers of aluminum strands. The steel core provides strength and mechanical support, while the aluminum strands conduct the electrical current.
ACSR conductors are known for their high tensile strength, which makes them suitable for long-span transmission lines that require mechanical durability.
Linnet 336.4MCM is typically used in medium to high voltage transmission and distribution lines.
ACSR Ibis Hawk 477MCM:
Ibis Hawk is the specific name given to this type of ACSR conductor.
The "477MCM" refers to the size or cross-sectional area of the conductor, measured in thousands of circular mils (MCM). In this case, it has a cross-sectional area of 477 thousand circular mils.
ACSR conductors are composed of a central steel core surrounded by one or more layers of aluminum strands.
ACSR Ibis Hawk 477MCM is typically used in medium to high voltage transmission and distribution lines, similar to Linnet 336.4MCM.
ACSR conductors are widely used due to their combination of strength and electrical conductivity. They are suitable for overhead power lines where both mechanical durability and electrical performance are required. The specific size and type of ACSR conductor chosen for a particular application will depend on factors such as the voltage level, span length, and environmental conditions of the transmission or distribution line.
