Fire Resistant Cable Flat Cable BVVB 2X1.5mm2+E Flat Twin And Earth Cable Fireproof Electrical Cable
![]()
![]()
Product Description
Product DescriptionApplication:
The cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities
Construction:
1. Conductor - Plain annealed class 2 stranded or class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Low smoke halogen-free (LSZH)
Cross Section:
Class 2 copper conductor: 2C1.0~2C2.5mm2
Class 5 copper conductor: 2C1.0~2C1.5mm2
Temperature characteristics:
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Red, black or according to customer requirements
Standard:
Cable design: IEC 60502-1
Conductor: IEC 60228
Fire resistant : BS6387 C
Other sizes can also be produced as you required.
| Size | Conductor Strands | Insulation Thickness |
| 2x1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2 | 7/0.68mm | 0.7mm |
| 2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8m |
- Imported equipment with experienced technical team

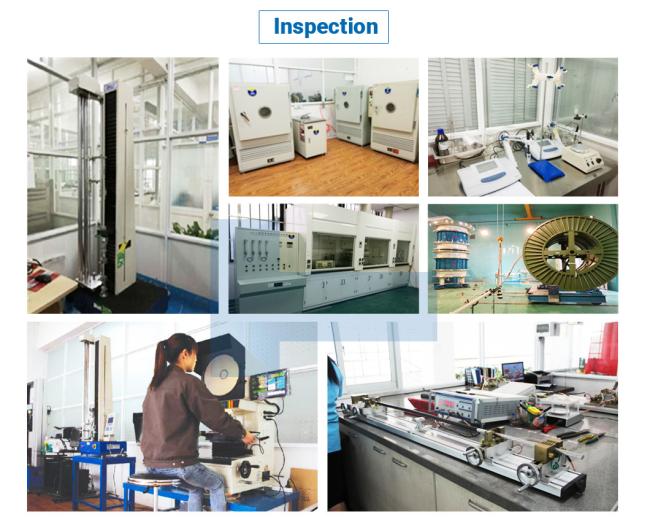

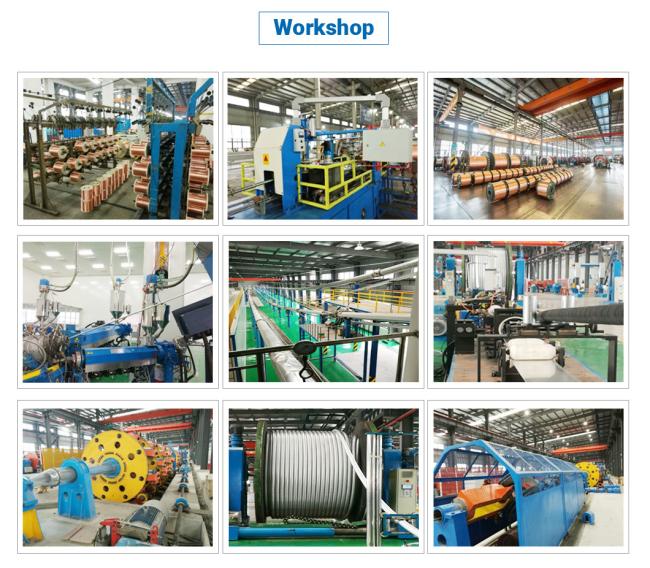

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

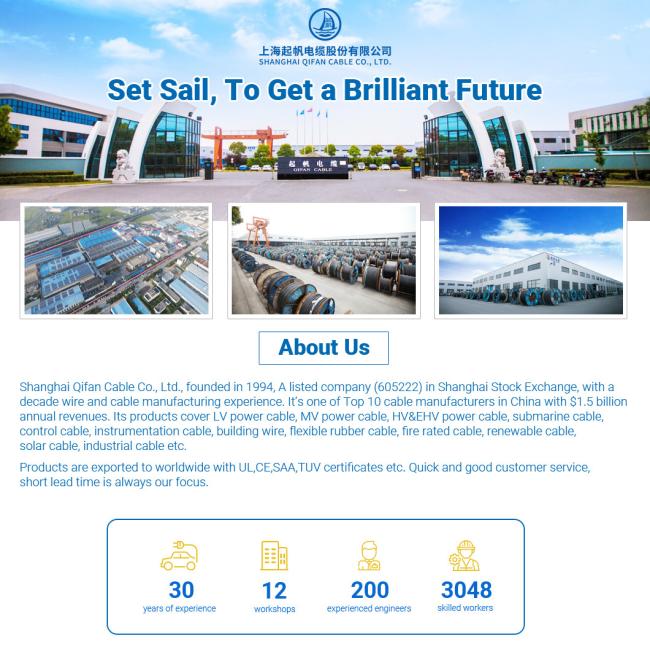

Shanghai Qifan Cable Co., Ltd. founded in 1994, has been specialized in R&D and manufacturing of electric wires and cables for more than 20 years, and it has advanced production and testing equipment.
Qifan Cable has ability in producing many varieties of cables, such as High Voltage cables, Medium Voltage cables, Low Voltage cables, Control cables, Instrument cables, Building wires, Rubber cables etc. Qifan Cable has sold its products to over 30 countries and regions in Asia, Europe, Oceania, America and Africa. As a result, they are widely used in such industries as water conservancy, electricity, metallurgy, petrochemical, railway, transportation, communication, construction, urban, infrastructure construction, etc.
Since its establishment, Qifan Cable has abided by the operation principle of quality foremost. It took the lead in passing ISO 9001:2000 quality system certification in 2006 and ISO 14001:2004 environmental management system certification.
Qifan Cable-Make pioneering efforts and forge ahead!
Flat Cable BVVB 2X1.5mm2+E, also known as Flat Twin and Earth Cable, is a type of electrical cable commonly used for indoor wiring in residential and commercial buildings. It is specifically designed for fixed installations, such as power distribution within walls or under flooring.
Here's a breakdown of its specifications:
Conductors: The cable consists of two conductors, both made of copper. Each conductor has a cross-sectional area of 1.5mm². The copper conductors offer good electrical conductivity and are commonly used in building wiring due to their efficiency.
Insulation: The conductors are individually insulated to prevent contact with each other and avoid short circuits. The insulation material used is typically PVC (Polyvinyl Chloride), which provides electrical insulation and protection against moisture and physical damage.
Earth Conductor: The "+E" in the cable designation indicates the presence of an earth conductor. It is a separate conductor, commonly made of copper, that provides a protective grounding connection. It helps to ensure safety by providing a path for electrical fault current to flow in the event of a short circuit or equipment failure.
Twin and Earth Configuration: The "Twin and Earth" refers to the configuration of the conductors. The two active conductors (phase and neutral) are arranged side by side in a flat configuration, while the earth conductor runs parallel but separate from them.
Sheath: The cable is typically covered by an outer sheath made of PVC. The sheath offers additional protection to the conductors and helps in the installation process by providing mechanical strength and resistance against abrasion or damage.
Flat Cable BVVB 2X1.5mm2+E is commonly used for powering lighting circuits, socket outlets, and other general-purpose electrical applications within buildings. It is important to follow local electrical codes and regulations when installing and using this cable to ensure compliance and safety standards.
