312.8mcm Aluminum Conductor Composite Core AAAC Aluminium Alloy Conductor 6201
Product Description
Application:
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength
aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy
gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR.
SPECIFICATIONS
Huatong AAAC-6201-T81 bare conductor meets or exceeds the following ASTM specifications:
• B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
• B399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
CONSTRUCTION
Aluminum-alloy 6201-T81 wires, concentrically stranded. ASTM standards
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
| Name | Short name | Standard |
| All aluminum conductor | AAC | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| Aluminum conductor steel reinforced | ACSR | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| All aluminum alloy conductor | AAAC | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
| Galvanized steel wire | GSW | ASTM,BS,DIN,IEC,GB,ICEA,etc. |
Main products: 220kv and below power cables, rubber sheathed cables, photovoltaic wires, photovoltaic special cables, control cables, computer cables, steel core aluminum stranded wires, pre-branch cables, low voltage halogen-free environmentally friendly cables, coal mining cables, fluorosilicone insulation High temperature resistant cables, shield cables, cables for ship electrical equipment, photoelectric composite cables, high-strength towing cables, cables for photovoltaic systems, cables for rail transit vehicles with AC rated voltage 3kv and below, local area network cables, inverter cables, radio frequency cables , nuclear power plant cables, port machinery cables, mineral insulated cables, submarine cables and more than 100 varieties
1.30 years production experience
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

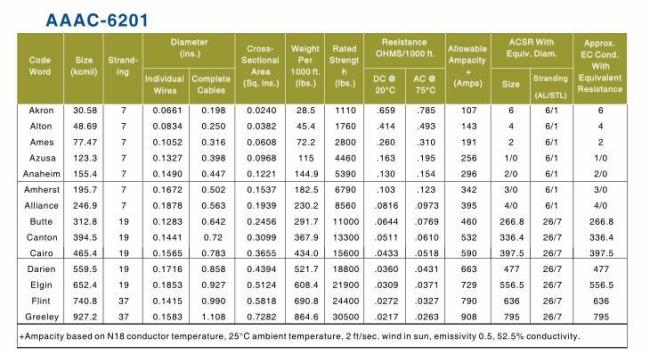

The 312.8MCM AAAC (All Aluminum Alloy Conductor) Aluminium Alloy Conductor 6201 is a specific type of aluminum conductor commonly used in electrical power transmission and distribution systems. It features a large cross-sectional area of 312.8 thousand circular mils (MCM), indicating its capacity to handle high electrical currents.
Here's some information about this conductor:
AAAC Aluminium Alloy Conductor: The conductor is made of all aluminum alloy wires. The aluminum alloy used in the conductor provides improved mechanical strength and better electrical conductivity compared to standard aluminum conductors. AAAC conductors are known for their excellent strength-to-weight ratio and resistance to corrosion.
6201 Alloy: The conductor is made from the 6201 aluminum alloy. This specific alloy is composed primarily of aluminum, with small additions of other elements to enhance its mechanical and electrical properties. The 6201 alloy offers a good balance of strength and conductivity, making it suitable for power transmission and distribution applications.
