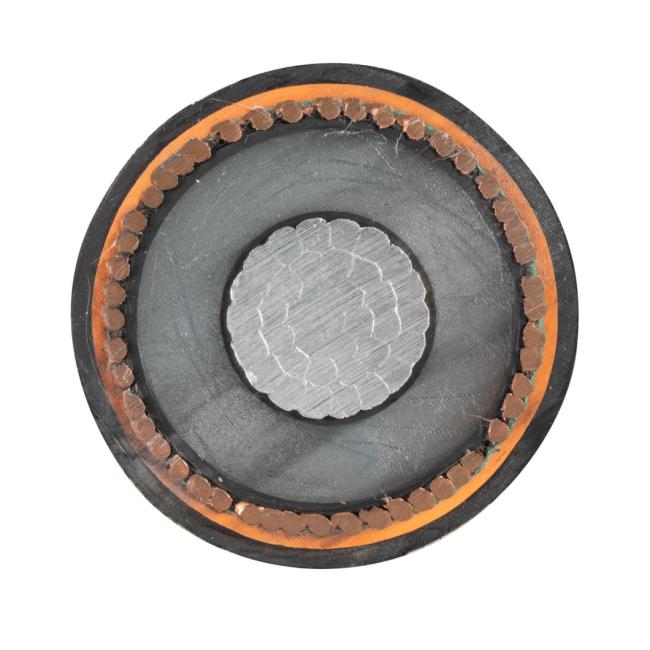

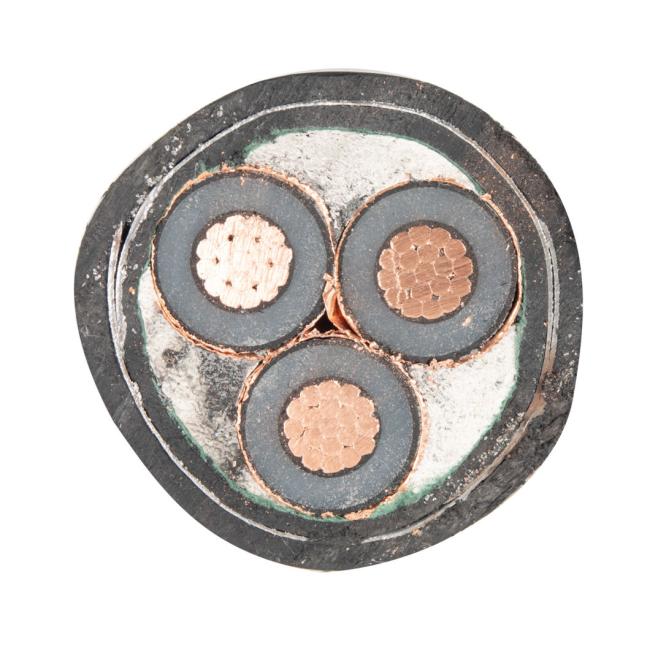

Medium Voltage Power Cable Medium Voltage 12/22.7kv 19/33kv Yjv32 Copper Conductor XLPE Insulated Armoured Power Cable
Product Description
1 Product Standard
This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request.
2 Application
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv.
3 Operating characteristics
- Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.
- Max.admissible operating temperature of the conductor:90ºC.
- Max. short-circurt temperature of conductor shall not exceed 2500C. (5s maximum duration)
- The ambient temperature under installation should not below 00C.
- The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a multi-core cable should not less than 15 times of the cable diameter.
4 Table of the voltage, cores and cross-section
| Item | Category A ,B | 3.6/6kV | 6/10kV | 8.7/15kV | 12/20kV | 18/30kV | 21/35kV |
| Category A ,B | 6/6kV | 8.7/10kV | 12/15kV | 18/20kV | - | 26/35kV | |
| Single core | mm2 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |
| Three core | mm2 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
5 Type and Name
| Type | Designation | Applications | |
| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. | |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | ||
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable | ||
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | ||
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. | |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | ||
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | ||
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | ||
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. | |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | ||
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | ||
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | ||
Cable Data
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.0 |
4175 |
3703 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
50.8 |
4733 |
4072 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
53.8 |
5491 |
4547 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
57.6 |
6446 |
5124 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
61.5 |
7530 |
5737 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
2.5 |
3.0 |
64.9 |
8628 |
6363 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
68.3 |
9794 |
6963 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
2.5 |
3.3 |
72.6 |
11326 |
7834 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
14268 |
9737 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
3.15 |
3.6 |
84.8 |
16641 |
10978 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
92.3 |
20362 |
12811 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24203 |
14764 |
