Fire Resistant Cable Building Wire SDI 70mm2 Australia Cable Constrication Cable
Product Description
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services
Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)
Cross Section:
1 core: 1.5~630mm2
Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: White or according to customer requirements
Sheath: Red or according to customer requirements
Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)
| Cond. Area mm |
Stranding No/mm |
Insulation Thick mm |
Sheath Thick mm |
Nom.O/D mm |
Min. Installed Bending Radius mm |
Approx. Mass Kg/Km |
Order Now |
| 1 | 1x1/1.13 | 0.6 | 0.8 | 4.1 | 20 | 30 | |
| 1.5 | 1x7/0.50 | 0.6 | 0.8 | 4.5 | 20 | 40 | |
| 2.5 | 1x7/0.67 | 0.7 | 0.8 | 5.2 | 25 | 55 | |
| 4 | 1x7/0.85 | 0.8 | 0.9 | 6.2 | 25 | 80 | |
| 6 | 1x7/1.04 | 0.8 | 0.9 | 6.8 | 30 | 100 | |
| 10 | 1x7/1.35 | 1 | 0.9 | 8.2 | 35 | 145 | |
| 16 | 1x7/1.70 | 1 | 1 | 9.4 | 40 | 225 |
Other sizes can also be produced as you required.
| Size | Conductor Strands | Insulation Thickness |
| 2x1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2 | 7/0.68mm | 0.7mm |
| 2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8m |
- Imported equipment with experienced technical team

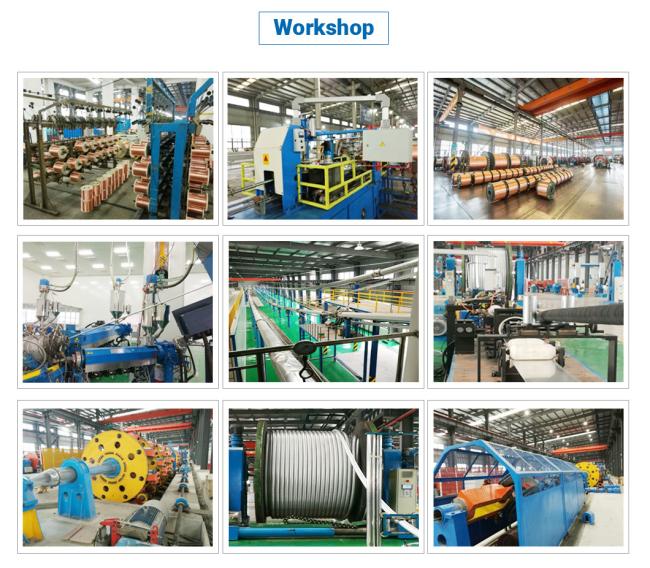

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.
