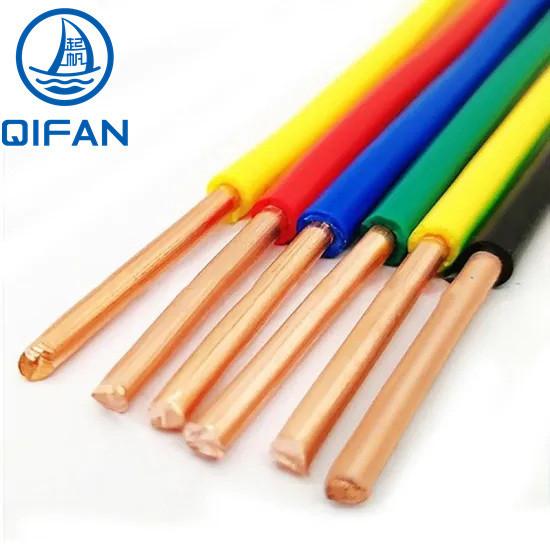

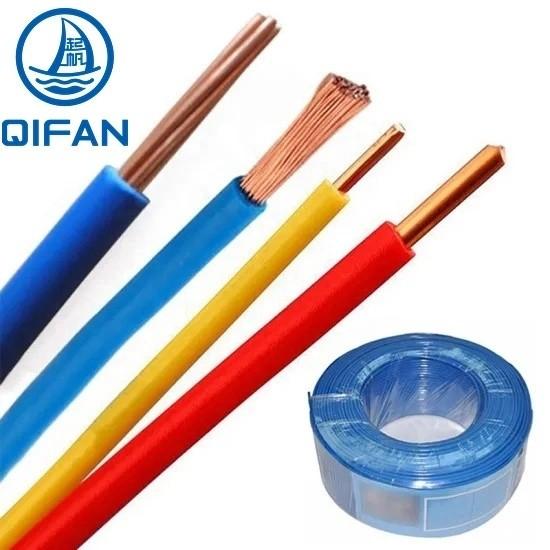

Building Wire Cable Fixed Wiring H07V-U and H07V-R
Product Description
TUV H07V-U CERTIFICATE No: R 50263728
The product is manufactured according to the stand of IEC 60227, EN 50525-2-31:2001 or as customers requested.upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 300/500V 450/750V respectively
2.Standard:
IEC 60227, EN 50525-2-31:2001 or as customers requested.
3.Specification
Details:
| Conductor: | Oxygen free Copper | Voltage Rating: | 300V-500V, 450V-750V |
| Insulation: | PVC material | Section size: | From 0.5mm2 to 400 mm2 |
| Temperature limitation: | 70ºC for long time normal operation | Mini bending radius: | 4 times the cable diameter |
| Installation temperature: | Above 0ºC | Max short circle temperature: | 160ºC |
| Standards of production: IEC 60227, EN 50525-2-31:2001 or as customers requested. | |||
| H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 | |||||
| Cross Section (mm2) |
Conductor Construction (No/mm) | Insulation Thickness (mm) | Overall Diameter Max (mm) | Min Insulation Resistance@ 70ºC (ohm/Km) | Weight Approx (Kg/Km) |
| 1x0.5 | 1/0.80 | 0.6 | 2.4 | 0.015 | 8 |
| 1x0.75 | 7/0.97 | 0.6 | 2.8 | 0.012 | 11 |
| 1x0.75 | 1/0.97 | 0.6 | 2.6 | 0.012 | 11 |
| 1x1.0 | 7/0.43 | 0.6 | 3.0 | / | 14 |
| 1x1.0 | 1/1.13 | 0.6 | 2.8 | 0.011 | 14 |
| 1x1.5 | 7/0.52 | 0.7 | 3.4 | 0.010 | 21 |
| 1x1.5 | 1x1.38 | 0.7 | 3.3 | 0.011 | 20 |
| 1x2.5 | 7/0.67 | 0.8 | 4.2 | 0.009 | 32 |
| 1x2.5 | 1x1.78 | 0.8 | 3.9 | 0.010 | 31 |
| 1x4 | 7/0.85 | 0.8 | 4.8 | 0.0077 | 45 |
| 1x4 | 1/2.25 | 0.8 | 4.4 | 0.0085 | 45 |
| 1x6 | 7/1.04 | 0.8 | 5.4 | 0.0065 | 65 |
| 1x6 | 1/2.76 | 0.8 | 4.9 | 0.0070 | 65 |
| 1x10 | 7/1.35 | 1.0 | 6.8 | 0.0065 | 110 |
| 1x10 | 1/3.57 | 1.0 | 6.4 | 0.0070 | 110 |
| 1x16 | 7/1.70 | 1.0 | 8.0 | 0.0050 | 165 |
| 1x25 | 7/2.14 | 1.2 | 9.8 | 0.0050 | 264 |
| 1x35 | 7/2.52 | 1.2 | 11.0 | 0.0040 | 360 |
| 1x50 | 19/1.78 | 1.4 | 13.0 | 0.0045 | 490 |
| 1x70 | 19/2.14 | 1.4 | 15.0 | 0.0035 | 685 |
| 1x95 | 19/2.52 | 1.6 | 17.5 | 0.0035 | 946 |
| 1x120 | 37/2.03 | 1.6 | 19.0 | 0.0032 | 1181 |
| 1x150 | 37/2.25 | 1.8 | 21.0 | 0.0032 | 1453 |
| 1x185 | 37/2.52 | 2.0 | 23.5 | 0.0032 | 1821 |
| 1x240 | 61/2.24 | 2.2 | 26.5 | 0.0032 | 2383 |
| 1x300 | 61/2.50 | 2.4 | 29.5 | 0.0030 | 2983 |
| 1x400 | 61/2.85 | 2.6 | 33.5 | 0.0028 | 3800 |
Packing in wooden drums,steel wooden drums or as customer's requirement.
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
.
Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Cable has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, ISO50001 energy management system certification, and two integration management system certification. It has also received the title of national green factory.
