1.Application
The product is manufactured according to the stand of  IEC 60227,  EN 50525-2-31:2001 or as customers requested.upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including  300/500V  450/750V respectively

2.Standard:
 IEC 60227,  EN 50525-2-31:2001 or as customers requested.

3.Specification


Details:


Conductor:	Oxygen free Copper	Voltage Rating:	300V-500V, 450V-750V
Insulation:	PVC material	Section size:	From 0.5mm2 to 400 mm2
Temperature limitation:	70ºC for long time normal operation V2 for 90ºC PVC	Mini bending radius:	4 times the cable diameter
Installation temperature:	Above 0ºC	Max short circle temperature:	160ºC
Standards of production: IEC 60227,  EN 50525-2-31:2001 or as customers requested.

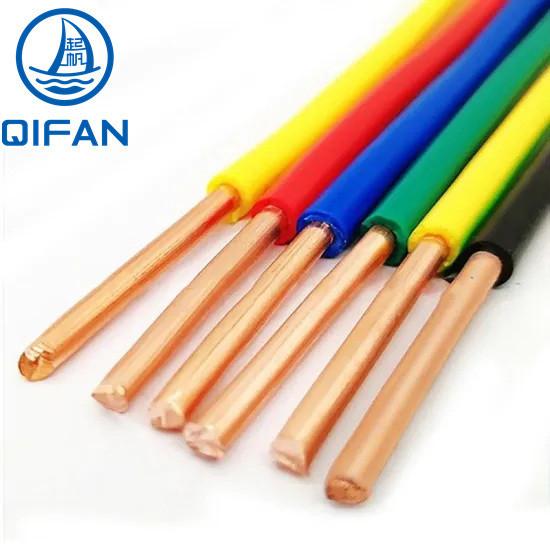

H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004
Cross Section  (mm2)	Conductor Construction (No/mm)	Insulation Thickness (mm)	Overall Diameter Max (mm)	Min Insulation Resistance@ 70ºC (ohm/Km)	Weight Approx (Kg/Km)
1x0.5	1/0.80	0.6	2.4	0.015	8
1x0.75	7/0.97	0.6	2.8	0.012	11
1x0.75	1/0.97	0.6	2.6	0.012	11
1x1.0	7/0.43	0.6	3.0	/	14
1x1.0	1/1.13	0.6	2.8	0.011	14
1x1.5	7/0.52	0.7	3.4	0.010	21
1x1.5	1x1.38	0.7	3.3	0.011	20
1x2.5	7/0.67	0.8	4.2	0.009	32
1x2.5	1x1.78	0.8	3.9	0.010	31
1x4	7/0.85	0.8	4.8	0.0077	45
1x4	1/2.25	0.8	4.4	0.0085	45
1x6	7/1.04	0.8	5.4	0.0065	65
1x6	1/2.76	0.8	4.9	0.0070	65
1x10	7/1.35	1.0	6.8	0.0065	110
1x10	1/3.57	1.0	6.4	0.0070	110
1x16	7/1.70	1.0	8.0	0.0050	165
1x25	7/2.14	1.2	9.8	0.0050	264
1x35	7/2.52	1.2	11.0	0.0040	360
1x50	19/1.78	1.4	13.0	0.0045	490
1x70	19/2.14	1.4	15.0	0.0035	685
1x95	19/2.52	1.6	17.5	0.0035	946
1x120	37/2.03	1.6	19.0	0.0032	1181
1x150	37/2.25	1.8	21.0	0.0032	1453
1x185	37/2.52	2.0	23.5	0.0032	1821
1x240	61/2.24	2.2	26.5	0.0032	2383
1x300	61/2.50	2.4	29.5	0.0030	2983
1x400	61/2.85	2.6	33.5	0.0028	3800

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
