KL65 Hydraulic Guide Ring Bronze Middle Layer POM Composite Bushings
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15 work days
Brand:
Kelong
Product Description
KL65 Is A Composite Bushing From High Quality Steel, Bronze Middle Layer And POM, With Self Lubrication Properties
KL65 is a composite bushing, produced from high quality steel, bronze middle layer and POM, with self lubrication properties. KL65 provides low friction, silent operation and high abrasion resistance in many hydraulic applications
Advantages
• Suitable for dry applications
• Abrasion Resistance
• Low friction
• Long service life
• Good thermal properties and dimensional stability
• Optimum oil film
• Superior load bearing capacity
Area of Application
• Hydraulic and Pneumatic Cylinders
• Applications with high radial load

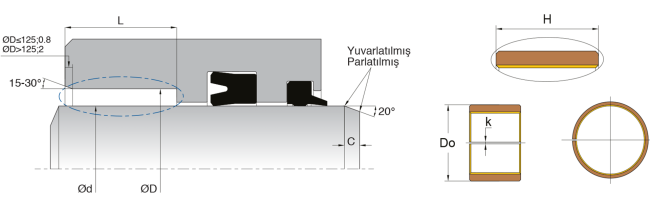

| d (f7) | D (H7) | L (+0.2/-0) | MATERIAL | |
| KL65-k014 | 14 | 16 | 20 | Steel - POM - Bushing |
| KL65-k028 | 28 | 32 | 30 | Steel - POM - Bushing |
| KL65-k028/1 | 28 | 32 | 50 | Steel - POM - Bushing |
| KL65-k030 | 30 | 34 | 25 | Steel - POM - Bushing |
| KL65-k030/1 | 30 | 34 | 30 | Steel - POM - Bushing |
| KL65-k030/2 | 30 | 34 | 50 | Steel - POM - Bushing |
| KL65-k030/3 | 30 | 34 | 60 | Steel - POM - Bushing |
| KL65-k032 | 32 | 36 | 20 | Steel - POM - Bushing |
| KL65-k035 | 35 | 39 | 20 | Steel - POM - Bushing |
| KL65-k035/1 | 35 | 39 | 30 | Steel - POM - Bushing |
| KL65-k035/2 | 35 | 39 | 35 | Steel - POM - Bushing |
| KL65-k040 | 40 | 44 | 40 | Steel - POM - Bushing |
| KL65-k040/1 | 40 | 44 | 50 | Steel - POM - Bushing |
| KL65-k040/2 | 40 | 45 | 20 | Steel - POM - Bushing |
| KL65-k040/3 | 40 | 45 | 30 | Steel - POM - Bushing |
| KL65-k045 | 45 | 50 | 40 | Steel - POM - Bushing |
| KL65-k045/1 | 45 | 50 | 50 | Steel - POM - Bushing |
| KL65-k050 | 50 | 55 | 30 | Steel - POM - Bushing |
| KL65-k050/1 | 50 | 55 | 40 | Steel - POM - Bushing |
| KL65-k050/2 | 50 | 55 | 45 | Steel - POM - Bushing |
| KL65-k050/3 | 50 | 55 | 50 | Steel - POM - Bushing |
| KL65-k050/4 | 50 | 55 | 60 | Steel - POM - Bushing |
| KL65-k060 | 60 | 65 | 40 | Steel - POM - Bushing |
| KL65-k060/1 | 60 | 65 | 50 | Steel - POM - Bushing |
| KL65-k060/2 | 60 | 65 | 60 | Steel - POM - Bushing |
| KL65-k070 | 70 | 75 | 40 | Steel - POM - Bushing |
| KL65-k070/1 | 70 | 75 | 50 | Steel - POM - Bushing |
| KL65-k070/2 | 70 | 75 | 58 | Steel - POM - Bushing |
| KL65-k070/3 | 70 | 75 | 60 | Steel - POM - Bushing |
| KL65-k070/4 | 70 | 75 | 90 | Steel - POM - Bushing |
| KL65-k075 | 75 | 80 | 40 | Steel - POM - Bushing |
| KL65-k075/1 | 75 | 80 | 60 | Steel - POM - Bushing |
| KL65-k075/2 | 75 | 80 | 80 | Steel - POM - Bushing |
| KL65-k075/3 | 75 | 80 | 90 | Steel - POM - Bushing |
| KL65-k080 | 80 | 85 | 40 | Steel - POM - Bushing |
| KL65-k080/1 | 80 | 85 | 50 | Steel - POM - Bushing |
| KL65-k080/2 | 80 | 85 | 60 | Steel - POM - Bushing |
| KL65-k085 | 85 | 90 | 60 | Steel - POM - Bushing |
| KL65-k090 | 90 | 95 | 50 | Steel - POM - Bushing |
| KL65-k090/1 | 90 | 95 | 60 | Steel - POM - Bushing |
| KL65-k090/2 | 90 | 95 | 90 | Steel - POM - Bushing |
| KL65-k095 | 95 | 100 | 45 | Steel - POM - Bushing |
| KL65-k095/1 | 95 | 100 | 60 | Steel - POM - Bushing |
| KL65-k100 | 100 | 105 | 50 | Steel - POM - Bushing |
| KL65-k100/1 | 100 | 105 | 60 | Steel - POM - Bushing |
| KL65-k100/2 | 100 | 105 | 90 | Steel - POM - Bushing |
| KL65-k110 | 110 | 115 | 60 | Steel - POM - Bushing |
| KL65-k110/1 | 110 | 115 | 80 | Steel - POM - Bushing |
| KL65-k120 | 120 | 125 | 100 | Steel - POM - Bushing |
| KL65-k120/1 | 120 | 125 | 60 | Steel - POM - Bushing |
| KL65-k130 | 130 | 135 | 100 | Steel - POM - Bushing |
