UN Polyurethane UHS Hole Hydraulic Shaft Seals / Dual Purpose Hydraulic Oil Seals

1. Product introduction

Manufacturer UN Polyurethane UHS Hole Shaft Piston Rod Seal Dual-Purpose Hydraulic Oil Seals

Description of design
KLHPS-05 is a high-performance single-acting U-rod or piston all-purpose seal that provides the driest seal in light - and medium-load applications. The seals are injection molded with Hovoo high performance U5203 material,easy to install and excellent low temperature resistance.When used in conjunction with a full-coverage retainer, the seal may be considered for heavy-duty applications. Unique design seal lip Angle provides optimal sealing performance.

2,Material analysis

NBR

Temperature range: -30°C to 125°C Hardness: 40-90A Color: Customizable Application: Excellent oil resistance Advantages: Excellent

oil resistance and stability, widely used, affordable price

FKM

Temperature range: 20°C to 250°C Hardness: 50-90A Color: Black/brown/green, other colors can be customized Application: Excellent

oil and chemical resistance Advantages: Wear resistance, acid and alkali resistance, high temperature resistance.

SILICONE

Temperature range: 60°C to 225°C Hardness: 25-90A Color: Red/transparent (clear)/white, etc. Application: Food grade Advantages:

Good heat resistance, cold resistance, lubricating oil resistance, and water resistance.

EPDM

Temperature range: 50°C to 150°C Hardness: 40-90A Color: Customizable Advantages: Excellent ozone resistance, heat resistance,

steam resistance, cold resistance, and LLC resistance.

NR

Temperature range: -44°C to 120°C Hardness: 60-90A Color: Customizable Advantages: Excellent mechanical strength and fatigue resistance.

HNBR

Temperature range: -30°C to 160°C Hardness: 50-90A Color: Black, other colors can be customized Advantages: Excellent ozone

resistance, heat resistance, mechanical strength, and electrical resistance compared to butadiene rubber.

3.product details

Surface TechnologyThe surface of theseal is bright andtextured.without burrs

Accurate sizeThe seal isaccurate in size,small in error, andstrong in sealing

CompletespecificationsVariousspecifications andcolors are available

4.Description of design

kelong U601 is a high-performance single-acting U-rod or piston all-purpose seal that provides the driest seal in light - and medium-load applications. The seals are injection molded with kelong high performance U5203 material,easy to install and excellent low temperature resistance.When used in conjunction with a full-coverage retainer, the seal may be considered for heavy-duty applications. Unique design seal lip Angle provides optimal sealing performance.

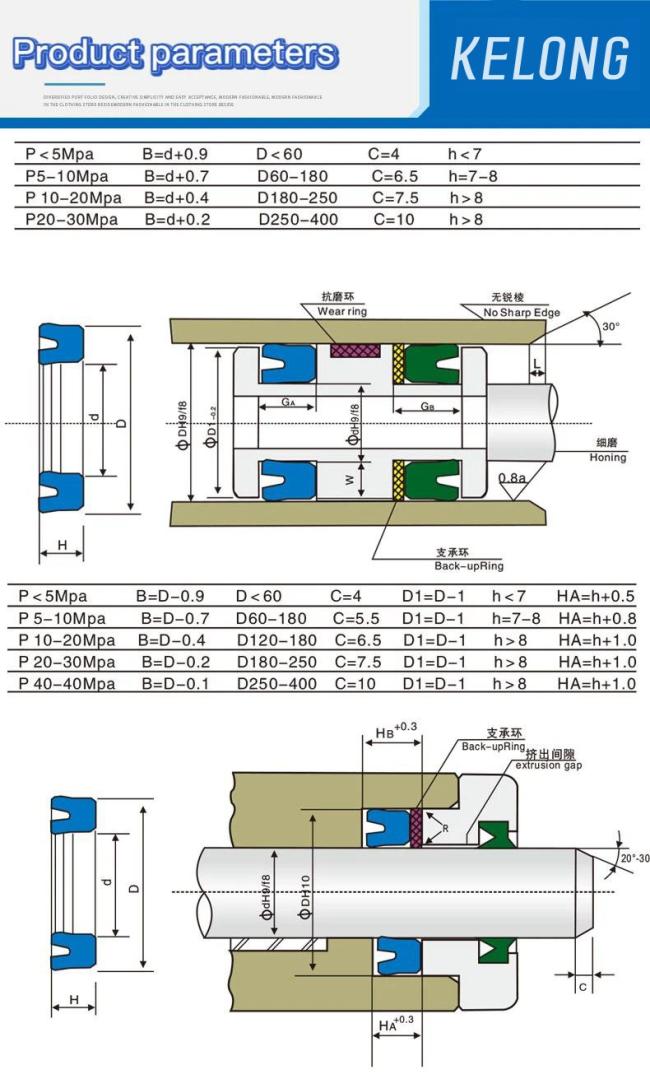

4,Product parameters
