33mm Carbon Brush 520 Micro Electric DC Brush Motor For Alarm Bell Mini Motor

Industry-specific Attributes:

Low Speed (RPM) 4560 RPM
Continuous Current 0.21A
Efficiency 62.2%

Shaft Length Customize

Quick Detail:

33mm 520 DC Motor

High Efficiency 62.2%

Max Efficiency Output Power 1.55W

Nominal Voltage 12V

Speed 4560 RPM

Continuous Current 0.21A

Max Efficiency Torque 33g.cm

Stall Torque 194g.cm

Threaded Hole 2-M2.5 x 0.45

Data Details And Shaft Length Customize As Request

Typical Application For Induction Cooker,Alarm Bell,DVD Player,Air Freshener,Robot Vacuum

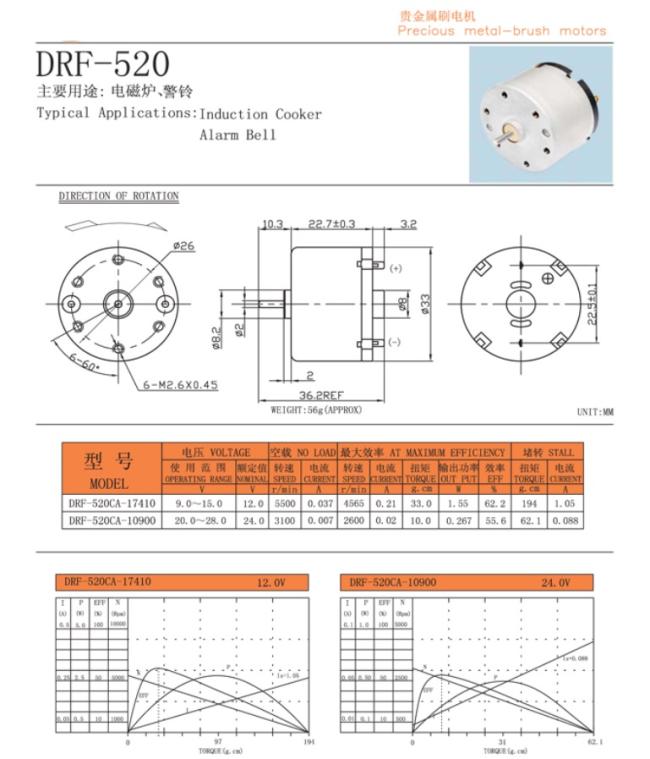

Specification

Features of 32mm 520 DC Motor

This is a 33mm 520 DC motor with high efficiency of 62.2%. It has a maximum efficiency output power of 1.55W, and a nominal voltage of 12V. The speed is 4560 RPM, and the continuous current is 0.21A. The maximum efficiency torque is 33g.cm, and the stall torque is 194g.cm. It also has threaded holes with a size of 2-M2.5 x 0.45. The data details and shaft length can be customized according to the customer's request. This DC motor is typically used for applications such as induction cookers, alarm bells, DVD players, air fresheners, and robot vacuums.

Micro Brush DC Motors

Φ10mm: FF-M10,FF-M20,FF-M30

Φ12mm: FF-N10,FF-N20,FF-N30

Φ20mm: FF130,FF180

Φ24mm: FF260,RC260,FF280,RC280,RF300,RF370

Φ28mm: RC360,RC365,RC380,RC385,RC390,RC395

Φ36mm: RS540,RS545,RS550,RS555,RS560,RS565

Φ42mm: RS750,RS755,RS770,RS775

Application:

The micro dc motor are widely used in various fields, including DVD players, air fresheners, robot vacuums, and other consumer electronics devices.

Packaging

Packing:Foam Box / EPE + Export Carton

Delivery:

Shipping Time:3 working days for samples.10-20 working days for bulk order.

Shipping Channel:We can check the shipping fee and channel with our agents if needed.

FAQ

Q1: Are you a manufacturer or a trade company? Which kind of motor do you produce?
A: We are a professional dc motor manufacturer since 2003, we mainly produce the DC Motor, Brushless DC Motor(Inner Rotor Brushless Motor, Outer Rotor Brushless Motor), DC Gear Motor, Planetary Gear Motor,High Voltage Motor,Coreless Motor, etc.

Q2: Does your company have ODM and OEM service?
A: Yes, of course. We can produce according to your drawing and customize Logo or packing by your request, we can also guarantee you a worry-free after sales.

Q3: Do you charge for the sample and the shipping cost?
A: Yes, we do, but we will refund you the sample fee if your batch order can be 2000 pieces or above.

Q4: How about the production period?
A: For conventional samples, 3-5 working days; For new samples, about 2 weeks. As for the mass production, it will depend on the quantity of your order.

Q5: What about your terms of payment?
A: Money Gram,T/T,Paypal,Western Union, Alipay and L/C. If the payment<=10000USD

Q6: How do you handle the shipment? And how long?
A: We recommend the Alibaba cooperated logistics Companies such as the HK UPS for samples and the small quantity, because it is safe, fast and cheap. We arrange the shipment by sea or air for the large quantity. And the DHL, FedEx,TNT, EMS are all available, if you need to ship by other methods, pls contact us in advance. As for the delivery time, usually 5-10 days;The specific will vary with the season number of customers orders.

Q7: Which trade term do you prefer?
A: EXW,FOB,CIF are all available,we can also accept other trade clauses by your request.

Q8: If I need some special materials to make a product,can you do?
A: Certainly,you only need to provide us with design drawings or samples, our professional design team can design the product according to your requirements.

Q9:Can you give me a price list?
A:All our motors are customized according to different requirements of life,noise,voltage, shaft,etc,price also vary with the annual quantities,so it is difficult for us to provide the price list. If you share your detailed requirements and annual quantities,we will see what we can offer.
