Slewing Swing Redution Gearbox 9287538 ZX60 ZX60-7 Excavator
ZX60 9287538 swing reduction ZX60-7 9287538 swing gearbox slewing gearboxes
Product Descriptio

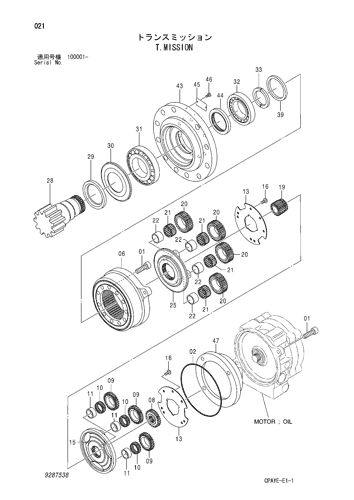

| Pos. | Part No | Qty | Parts name |
| 9287538 | [1] | T.MISSION | |
| 1 | M341230 | [13] | BOLT;SOCKET |
| 2 | 4608324 | [1] | O-RING |
| 6 | 3100651 | [1] | GEAR;RING |
| 8 | 3100652 | [1] | GEAR;SUN |
| 9 | 3100653 | [3] | GEAR;PLANETARY |
| 10 | 4612409 | [3] | BRG.;NEEDLE |
| 11 | 4612408 | [3] | RING;INNER |
| 13 | 4605112 | [2] | PLATE |
| 15 | 2050715 | [1] | CARRIER |
| 16 | 4614242 | [7] | BOLT |
| 19 | 3100654 | [1] | GEAR;SUN |
| 20 | 3098504 | [4] | GEAR;PLANETARY |
| 21 | 4605114 | [4] | BRG.;NEEDLE |
| 22 | 4605115 | [4] | RING;INNER |
| 25 | 2050716 | [1] | CARRIER |
| 28 | 3100655 | [1] | SHAFT;PROP. |
| 29 | 4611615 | [1] | SPACER |
| 30 | 4613099 | [1] | SPRING;PLATE |
| 31 | 4612424 | [1] | BRG.;ROL. |
| 32 | 4612425 | [1] | BRG.;ROL. |
| 33 | 4613141 | [1] | WASHER 6.70mm |
| 33 | 4613142 | [1] | WASHER 6.85mm |
| 33 | 4613143 | [1] | WASHER 7.00mm |
| 33 | 4613144 | [1] | WASHER 7.15mm |
| 33 | 4613145 | [1] | WASHER 7.30mm |
| 33 | 4613146 | [1] | WASHER 7.45mm |
| 39 | 4611763 | [1] | COLLAR |
| 43 | 2055005 | [1] | HOUSING |
| 44 | 4612410 | [1] | SEAL;OIL |
| 45 | +++++++ | [1] | NAME-PLATE |
| 46 | M492564 | [2] | SCREW;DRIVE |
| 47 | 3104296 | [1] | COVER |
