9096483 9066008 9080070 Final Travel Drive Gear Box EX200-1 EX220-1
Travel Reduction Gearbox EX200-1 9066008 9080070 9096483 final travel drive gear box
Product Descriptio

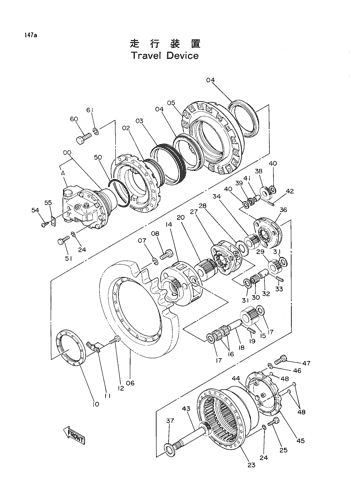

| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 9065944 | [1] | MOTOR;OIL | |
| 0 | 9080114 | [1] | MOTOR;OIL | |
| 00-51. | 9066008 | [2] | TRAVEL DEVICE ASSY | |
| 00-51. | 9080070 | [2] | TRAVEL DEVICE ASSY | Y 9096483 |
| 00-55. | 9096483 | [2] | TRAVEL DEVICE ASSY | |
| 00A. | 9065943 | [1] | VALVE;BRAKE | |
| 00A. | 9080512 | [1] | VALVE;BRAKE | |
| 2 | 1009855 | [1] | HOUSING | |
| 3 | 4514259 | [1] | SEAL;GROUP | |
| 4 | 4115169 | [2] | BRG.;ROL | |
| 4 | 4115169 | [2] | BRG.;ROL | |
| 4 | 4240717 | [2] | BRG.;ROL. | Y 4115169 |
| 5 | 1010010 | [1] | DRUM | |
| 6 | 1010204 | [1] | SPROCKET | |
| 7 | A590920 | [16] | WASHER;SPRING | |
| 8 | J932055 | [16] | BOLT | |
| 10 | 3032083 | [1] | NUT | |
| 11 | 4178862 | [1] | PLATE;LOCK | |
| 12 | J901020 | [2] | BOLT | |
| 14 | 1009857 | [1] | CARRIER | |
| 15 | 3034323 | [3] | GEAR;PLANETARY | |
| 16 | 4183818 | [6] | BRG.;NEEDLE | |
| 17 | 4135227 | [6] | PLATE;THRUST | |
| 18 | 4139975 | [3] | PIN | |
| 19 | 4139998 | [3] | PIN;SPRING | |
| 20 | 3034324 | [1] | GEAR;SUN | |
| 23 | 1010509 | [1] | GEAR;RING | |
| 24 | A590916 | [26] | WASHER;SPRING | |
| 25 | J931645 | [24] | BOLT | |
| 27 | 2022210 | [1] | CARRIER | |
| 28 | 4183819 | [1] | SPACER | |
| 29 | 3034325 | [3] | GEAR;PLANETARY | |
| 30 | 4126657 | [3] | BRG.;NEEDLE | |
| 31 | 4192982 | [6] | PLATE;THRUST | |
| 31 | 4192982 | [12] | PLATE;THRUST | |
| 32 | 4144558 | [3] | PIN | |
| 33 | 4169567 | [3] | PIN;SPRING | |
| 34 | 3034326 | [1] | GEAR;SUN | |
| 36 | 2020865 | [1] | CARRIER | |
| 36 | 2025788 | [1] | CARRIER | |
| 37 | 4172391 | [1] | SPACER | |
| 38 | 3031946 | [3] | GEAR;PLANETARY | |
| 38 | 3041347 | [3] | GEAR;PLANETARY | |
| 39 | 4172392 | [3] | BRG.;NEEDLE | |
| 40 | 4196488 | [6] | PLATE;THRUST | |
| 41 | 4172398 | [3] | PIN | |
| 42 | 4169566 | [3] | PIN;SPRING | |
| 43 | 2020862 | [1] | SHAFT;PROP. | |
| 43 | 2025789 | [1] | SHAFT;PROP. | |
| 44 | 4204756 | [1] | CAP | |
| 45 | 2022683 | [1] | COVER | |
| 45 | 2025790 | [1] | COVER | P 2028454 |
| 45 | 2028454 | [1] | COVER | |
| 46 | A590912 | [12] | WASHER;SPRING | |
| 47 | M221228 | [12] | BOLT | |
| 48 | 4245797 | [3] | PLUG | Y 94-2013 |
| 48 | 4245797 | [3] | PLUG | |
| 48 | 94-2013 | [2] | PLUG | |
| 48 | 94-2013 | [3] | PLUG | |
| 48 | 94-2013 | [3] | PLUG | |
| 50 | 4174183 | [1] | O-RING | |
| 51 | J931685 | [2] | BOLT | |
| 54 | M492564 | [2] | SCREW;DRIVE | |
| 55 | 3053559 | [1] | NAME-PLATE | |
| 60 | J932080 | [28] | BOLT | |
| 61 | A590920 | [28] | WASHER;SPRING |
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.
2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998
3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.
4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.
5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6.Which shipping term you can supply?
A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7.What is your MOQ?
A:Small order and sample order are acceptable
8.Do you have any After-Sales service?
A:Yes!Our
