OEM Swing Redution Gearbox ZX200-3 9196963 Excavator Part For Hitachi
EXCAVATOR SWING REDUCTION GEAR ZX200-3 9196963 SWING GEARBOX FOR HITACHI
Product Descriptio

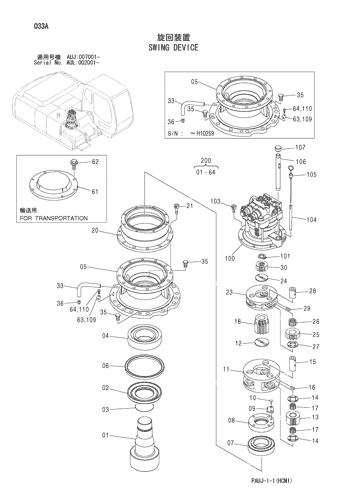

| Pos. | Part No | Qty | Parts name |
| 1 | 2044634 | [1] | SHAFT;PROP. |
| 2 | 3083742 | [1] | SLEEVE |
| 3 | A811120 | [1] | O-RING |
| 4 | 4402481 | [1] | BRG.;ROL. |
| 5 | 1027617 | [1] | HOUSING |
| 5 | 1032876 | [1] | HOUSING |
| 6 | 4411535 | [1] | SEAL;OIL |
| 7 | 4402637 | [1] | BRG.;ROL. |
| 8 | 3086064 | [1] | NUT |
| 9 | 4411122 | [1] | PLATE;LOCK |
| 10 | J901020 | [2] | BOLT |
| 11 | 1026662 | [1] | CARRIER |
| 12 | 4187590 | [1] | PLATE;THRUST |
| 13 | 3084729 | [3] | GEAR;PLANETARY |
| 14 | 4336929 | [6] | PLATE;THRUST |
| 15 | 4336925 | [3] | PIN |
| 15 | 4488904 | [3] | PIN |
| 16 | 4027427 | [3] | PIN;SPRING |
| 17 | 4427630 | [6] | BRG.;NEEDLE |
| 17 | 4461644 | [6] | BRG.;NEEDLE |
| 17 | 4631475 | [6] | BRG.;NEEDLE |
| 18 | 3080912 | [1] | GEAR;SUN |
| 20 | 1025957 | [1] | GEAR;RING |
| 21 | M341645 | [12] | BOLT;SOCKET |
| 23 | 1025912 | [1] | CARRIER |
| 24 | 4403371 | [1] | PLATE;THRUST |
| 25 | 3082517 | [3] | GEAR;PLANETARY |
| 26 | 4404506 | [3] | BRG.;NEEDLE |
| 27 | 4403082 | [3] | PLATE;THRUST |
| 28 | 4336923 | [3] | PIN |
| 29 | 4051262 | [3] | PIN;SPRING |
| 30 | 3084056 | [1] | GEAR;SUN |
| 33 | 3089362 | [1] | PIPE |
| 35 | 4445352 | [2] | PLUG |
| 36 | 94-2012 | [1] | PLUG |
| 61 | 3090308 | [1] | COVER |
| 62 | J011230 | [4] | BOLT;SEMS |
| 62 | J271230 | [4] | BOLT;SEMS |
| 63 | 3053093 | [1] | NAME-PLATE |
| 64 | M492564 | [2] | SCREW;DRIVE |
| 100 | 4398514 | [1] | MOTOR;OIL |
| 101 | 991342 | [1] | RING;RETAINING |
| 103 | M341228 | [8] | BOLT;SOCKET |
| 103 | 4614096 | [8] | BOLT;SOCKET |
| 104 | 4264452 | [1] | PIPE |
| 105 | 3074223 | [1] | GAUGE;LEVEL |
| 106 | 4332658 | [1] | PIPE |
| 107 | 4343365 | [1] | CAP |
| 109 | 3053093 | [1] | NAME-PLATE |
| 110 | M492564 | [2] | SCREW;DRIVE |
| 200 | 9196963 | [1] | SWING DEVICE |
