Wheel Loader Hydraulic Pump 2928768 For 966H 972H 292-8768 292-8767
Wheel Loader Hydraulic Pump 2928768 For 966H 972H Piston Pump 292-8768 292-8767
Product Descriptio

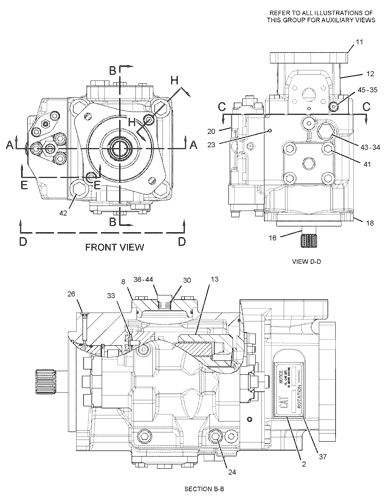

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7Y-4215 | [1] | SPACER | |
| 2 | 8J-0101 | [1] | PLATE-NOTICE (HYDRAULIC OIL FILL) | |
| 3 | 096-4389 | [9] | SPRING | |
| 4 | 129-7853 | [1] | PLATE | |
| 5 | 129-7921 | [1] | RING-RETAINING | |
| 6 | 341-2862 | [2] | SEAL-LIP TYPE | |
| 7 | 129-7927 | [1] | BEARING | |
| 8 | 150-5782 | [2] | COVER | |
| 9 | 173-3427 | [1] | GUIDE-BALL | |
| 11 | 245-8095 | [1] | PLATE-ADAPTER | |
| 12 | 254-6555 | [1] | BLOCK | |
| 13 | 256-0083 | [1] | BARREL AS-PUMP | |
| 14 | 256-7485 | [1] | PISTON AS | |
| 15 | 263-7474 | [1] | SET-BEARING | |
| 16 | 273-3591 | [1] | SHAFT-PUMP (17-TEETH) | |
| 17 | 292-3264 | [1] | SEAL-O-RING | |
| 18 | 358-2556 | [1] | BODY AS | |
| 18A. | 094-1875 | [2] | DOWEL | |
| 18B. | 124-1555 | [2] | PLUG | |
| 18C. | 129-7979 | [2] | DOWEL | |
| 18D. | 192-0573 | [2] | PIN-DOWEL | |
| 19 | 292-8771 | [1] | CASE | |
| 20 | 366-6195 Y | [1] | HEAD GP-PUMP | |
| 21 | 067-3161 | [1] | RING-RETAINING | |
| 22 | 094-1875 | [1] | DOWEL | |
| 23 | 094-1883 | [1] | PLUG | |
| 24 | 095-0673 M | [4] | BOLT-SOCKET HEAD (M12X1.75X60-MM) | |
| 25 | 095-0946 | [1] | RING-RETAINING | |
| 26 | 094-1882 | [1] | PLUG | |
| 27 | 117-8801 | [1] | SEAL-O-RING | |
| 29 | 189-9763 | [1] | SEAL-O-RING | |
| 30 | 193-1736 | [2] | SEAL-O-RING | |
| 31 | 236-6919 | [1] | SEAL-O-RING | |
| 32 | 373-9516 C | [1] | SWASHPLATE AS | |
| 094-1875 | [1] | DOWEL | ||
| 173-3428 | [1] | BUSHING | ||
| 242-6803 | [2] | PIN-DOWEL | ||
| 33 | 373-9518 C | [2] | BEARING AS (ROCKER) | |
| 34 | 3D-2824 | [2] | SEAL-O-RING | |
| 35 | 3J-1907 | [1] | SEAL-O-RING | |
| 36 | 3K-0360 | [3] | SEAL-O-RING | |
| 37 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 38 | 4I-1022 | [1] | ORIFICE | |
| 39 | 6V-3907 | [1] | SEAL-O-RING (FUEL FILTER) | |
| 40 | 6V-8200 M | [2] | BOLT-SOCKET HEAD (M12X1.75X35-MM) | |
| 41 | 8T-4136 M | [8] | BOLT (M10X1.5X25-MM) | |
| 42 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) | |
| 43 | 9S-4183 | [2] | PLUG (1-1/16-12-THD) | |
| 44 | 9S-4185 | [2] | PLUG (3/4-16-THD) | |
| 45 | 9S-8004 | [1] | PLUG (9/16-18-THD) | |
| 46 | 9S-8005 | [1] | PLUG (3/4-16-THD) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
Maintenance
Maintaining the excavator's hydraulic pump is an important task to ensure the normal operation of the excavator and extend its life. The following are some common excavator hydraulic pump maintenance steps and precautions:
1. Regularly replace hydraulic oil: Hydraulic oil is an important part of the hydraulic system. It is very important to regularly replace and maintain the cleanness and proper viscosity of the hydraulic oil. Regularly check and replace hydraulic oil according to the excavator manufacturer's recommendations, ensuring you are using the correct specifiion and brand.
2. Regularly check the quality of the oil: Regularly check the quality of the hydraulic oil, including checking for moisture, impurities and contaminants. Use appropriate oil filters and oil analyzers to ensure the quality of your hydraulic oil is up to standard.
3. Check the seals of the hydraulic pump: The seals of the hydraulic pump (such as O-rings, sealing rings, etc.) may be worn or damaged during operation, causing hydraulic leakage. Regularly inspect and replace hydraulic pump seals to ensure good sealing performance.
4. Check the filter element of the hydraulic pump: The filter element of the hydraulic pump is used to filter impurities and particles in the hydraulic oil. Regularly check and replace the filter element of the hydraulic pump to ensure normal hydraulic oil flow and protect the hydraulic pump.
5. Pay attention to the temperature of the hydraulic pump: Overheating of the hydraulic pump may affect its performance and life. Ensure that the cooling system of the hydraulic pump operates properly and avoid excessive operating temperatures.
