PC360-7 Excavator Hydraulic Main Control Valve Assy 723-48-26102 723-48-26101
PC360-7 Excavator Hydraulic Main Control Valve Assy 723-48-26102 723-48-26101
Product Descriptio

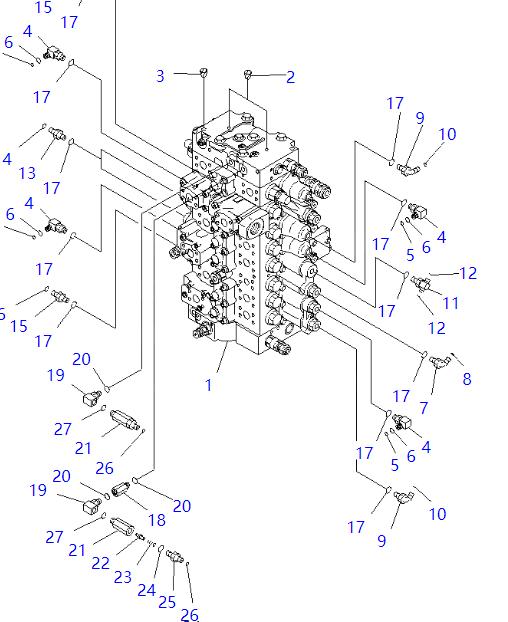

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 723-48-26102 | [1] | CONTROL VALVE Komatsu OEM | 257 kg. |
| ["SN: 40034-UP"] analogs:["7234826101", "7234826103", "7234826104", "7234826105"] | ||||
| 723-48-26101 | [1] | CONTROL VALVE Komatsu OEM | 257 kg. | |
| ["SN: 40001-40033"] analogs:["7234826103", "7234826102", "7234826104", "7234826105"] |1. | ||||
| 2 | 07049-01012 | [2] | PLUG Komatsu | 0.001 kg. |
| ["SN: 40001-UP"] | ||||
| 3 | 07049-01215 | [1] | PLUG Komatsu | 0.001 kg. |
| ["SN: 40001-UP"] | ||||
| 4 | 22U-62-22480 | [4] | ELBOW Komatsu | 0.1 kg. |
| ["SN: 40001-UP"] | ||||
| 5. | 201-60-11390 | [1] | O-RING Komatsu | 0.01 kg. |
| ["SN: 40001-UP"] | ||||
| 6. | 20Y-62-19560 | [1] | O-RING Komatsu | 0.01 kg. |
| ["SN: 40001-UP"] | ||||
| 7 | 11Y-62-12160 | [1] | ELBOW Komatsu | 0.11 kg. |
| ["SN: 40012-UP"] | ||||
| 02782-10210 | [1] | ELBOW Komatsu | 0.08 kg. | |
| ["SN: 40001-40011"] |7. | ||||
| 8 | 02896-11008 | [1] | O-RING Komatsu China | 0.12 kg. |
| ["SN: 40001-UP"] | ||||
| 9 | 21W-62-42490 | [2] | ELBOW Komatsu | 0.15 kg. |
| ["SN: 40012-UP"] | ||||
| 02782-10311 | [2] | ELBOW Komatsu | 0.1 kg. | |
| ["SN: 40001-40011"] |9. | ||||
| 10 | 02896-11009 | [2] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 40001-UP"] analogs:["R0289611009", "0286911009"] | ||||
| 11 | 11Y-62-12250 | [1] | TEE Komatsu | 0.12 kg. |
| ["SN: 40001-UP"] | ||||
| 13 | 11Y-62-12130 | [2] | NIPPLE Komatsu | 0.05 kg. |
| ["SN: 40012-UP"] | ||||
| 02781-00210 | [2] | UNION Komatsu | 0.04 kg. | |
| ["SN: 40001-40011"] |13. | ||||
| 15 | 11Y-62-12520 | [2] | NIPPLE Komatsu | 0.08 kg. |
| ["SN: 40001-UP"] | ||||
| 17 | 07002-11423 | [12] | O-RING Komatsu China | 0.001 kg. |
| ["SN: 40001-UP"] analogs:["0700201423"] | ||||
| 18 | 20Y-62-22160 | [1] | ADAPTER Komatsu | 0.11 kg. |
| ["SN: 40001-UP"] | ||||
| 19 | 20Y-62-23541 | [2] | ELBOW Komatsu | 0.15 kg. |
| ["SN: 40001-UP"] | ||||
| 20Y-62-41700 | [2] | VALVE ASSY Komatsu | 0.21 kg. | |
| ["SN: 40001-UP"] analogs:["20Y6241701"] |21. | ||||
| 22. | 20Y-60-22270 | [1] | POPPET Komatsu | 0.02 kg. |
| ["SN: 40001-UP"] | ||||
| 23. | 701-20-61230 | [1] | SPRING Komatsu | 0.036 kg. |
| ["SN: 40001-UP"] |
Maintenance
The excavator control valve is one of the key components of the excavator. It is used to control the flow and pressure in the hydraulic system. Maintaining the excavator control valve can extend its service life and ensure the normal operation of the excavator. The following are some maintenance recommendations for excavator control valves:
1. Regular cleaning: Regularly clean the surface and surrounding area of the control valve to ensure that there is no accumulation of dust, mud or other debris. This prevents debris from entering the inside of the valve and affecting its normal operation.
2. Lubriion: Lubrie control valves regularly according to manufacturer's recommendations. Use appropriate lubricants to ensure that the lubricant reaches all parts of the valve and keeps the valve operating smoothly.
3. Check the seals: Regularly check the seals of the control valve, such as O-rings, gaskets, etc. If the seal is found to be damaged or aged, it should be replaced in time to ensure the sealing performance of the valve.
4. Check the connecting parts: Regularly check the connecting parts of the control valve, such as bolts, nuts, etc. Make sure the connections are tight and reliable to prevent leakage or other malfunctions caused by looseness.
5. Check the valve core and valve seat: Regularly check the valve core and valve seat of the control valve to ensure that its surface is smooth and has no scratches or wear. If problems are found, they should be repaired or replaced in time.
6. Check the valve body: Check the valve body of the control valve regularly to ensure there are no cracks or other damage. If problems are found, the valve body should be repaired or replaced in time.
7. Prevent overloading: When operating the excavator, avoid overloading. Overload may cause excessive pressure on the control valve, affecting its normal operation.
