4x2 129hp Garbage Compactor Truck Rubbish Dump Truck 7360kg

Price Negotiable
Price: USD15000~25000/unit
MOQ: 1units
Delivery Time: depends on order quantity
Brand: DONGFENG
Product Description

4X2 129hp Compacted Garbage Truck with Cloased Container Garbage cabin



Garbage Product Detailed Specification:

Vehicle parameters
Vehicle Model HLW5185ZYSD6 Vehicle Type Compacted Gabage truck
Overall dimensions 8500X2500X3300mm Curb weight 10400kg
Total Veight 18000kg Rated Capacity 7470kg
F/R overhang 1400/2600mm Gabage Volume 8-10CBM(As reqeust)
Chassis parameters
Chassis model DFH1180EX8 Chassis brand DONGFENG
Overall dimensions 7090X2370X2750mm Wheel base 4200mm
Front/rear wheel track 1876/1820mm Front/Rear Axle 6500/11500kg
Approach/departure angle 27/20° Maximum speed 89km/h
Cab Configuration A row and a half cab,3 passengers allowed, air conditioner.
Color White, or as request
Engine Model DDi50E190-60
Emission Euro V
Type 4 cylinders, in-line,EGR(cool)+DOC+DFP+SCR+ASC, diesel engine
Rated power 147kw/190hp, rated power speed 2300rpm
Displacement 5000ml
Max.torque 800N.m
Tire Size 10.00R20 18PR,275/80R22.5 18PR
Number 6+1 nos



Garbage Truck HLW5185ZYSD6 Description:

The vehicle is used for garbage collection and transfer; Special devices: garbage cans and fillers; Side protection material: Q235, connection method: bolt connection, the rear protection is replaced by the special operation device of the vehicle, and the rear special device is 420mm above the ground; When assembling ca4db1-11e6, cy4bk161, cy4bk461, d20tcif1, ycy24140-60, zd30d16-6n, the corresponding fuel consumption is 16.3,16.2,16.2,16.3,16.3,16.3l/100km respectively;With the chassis, the cab, swing arm device, semi sealed bucket device, fully sealed bucket device, no feeding device, bucket turnover device (without sealing cover) and bucket turnover device are optional; Optional car body style; Optional tipping device; Optional full sealing cover.

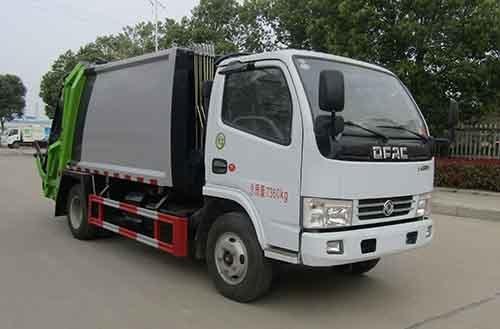

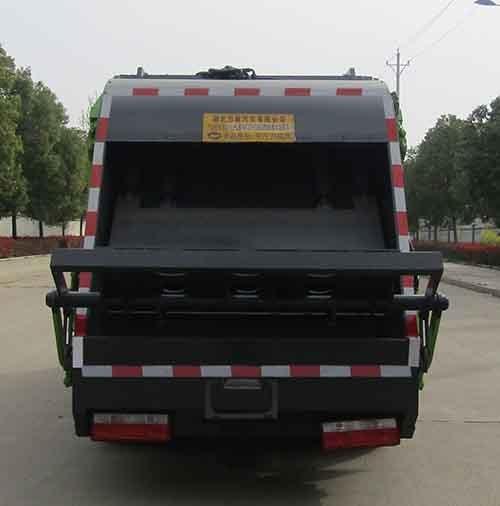

Products HD pictures:



Packing and Shipping:





FQA:



Q:How about the delivery time?

A: Most of our trucks are made to new order, so the delivery time is usually 20~45days.

Q:How about shipping ?

A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container, small type can shipping by container ,

Pls contact us to get a shipping quotation .

Q: How many trucks does your factory produce per years?

A: Almost 3000 units one month.

Q: How about your product After-sales service system?

A: Our main export country have accepted after-sales service,some of country used the third department service.

Q: Do you accept Custom orders? What's is your MOQ order?

A: Yes, we do, our MOQ is depends on exact model, mostly is 1unit.

Q:Which country do you have exported to?

A: our special trucks can be found in many parts of the world, such as Russia, Ukraine,Uzbekistan,Jordan, Chile, Brazil, Thailand, Malaysia, Lebanon etc, and gain good reputation from local market.
