5V41068APGG Clock Buffer 450 MHz 2.5V LVDS 1:4 Clock Buffer Integrated Circuits ICs
| IDT | |
| Product Category: | Encoders, Decoders, Multiplexers & Demultiplexers |
| RoHS: | Details |
| Multiplexers | |
| 2 Input | |
| 1 Output | |
| 3.135 V | |
| 3.465 V | |
| 0 C | |
| + 70 C | |
| SMD/SMT | |
| TSSOP-16 | |
| Tube | |
| Brand: | IDT |
| Height: | 1 mm |
| Length: | 5 mm |
| Product Type: | Encoders, Decoders, Multiplexers & Demultiplexers |
| Series: | 5V41068A |
| Subcategory: | Logic ICs |
| Width: | 4.4 mm |
| Part # Aliases: | IDT5V41068APGG 5V41068A |
| Unit Weight: | 0.006102 oz |
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
|
|
Product Status
|
Obsolete
|
|
DigiKey Programmable
|
Not Verified
|
|
PLL
|
No
|
|
Main Purpose
|
PCI Express (PCIe)
|
|
Input
|
HCSL
|
|
Output
|
HCSL, LVDS
|
|
Number of Circuits
|
1
|
|
Ratio - Input:Output
|
2:1
|
|
Differential - Input:Output
|
Yes/Yes
|
|
Frequency - Max
|
200MHz
|
|
Voltage - Supply
|
3.135V ~ 3.465V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Surface Mount
|
|

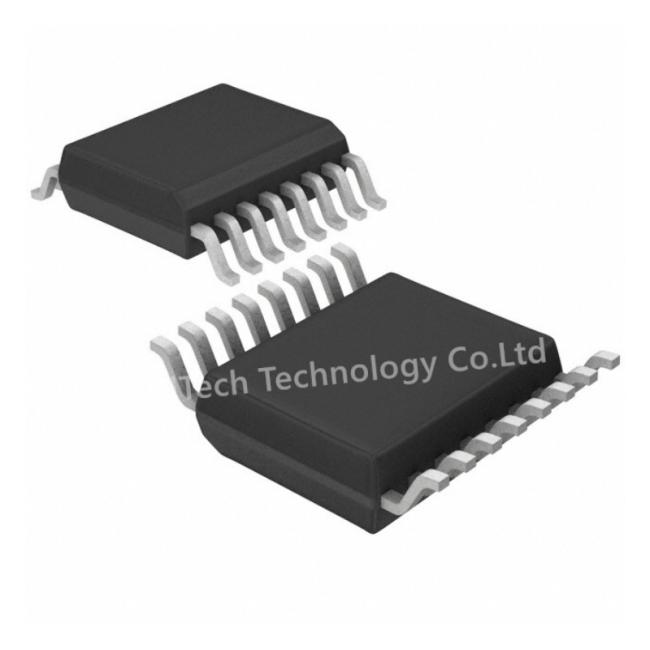

Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Base Product Number
|
General Description
TDescriptionThe IDT5V41068A is a 2:1 differential clock mux for PCIExpress applications. It has very low
additive jitter making itsuitable for use in PCIe Gen2 and Gen3 systems. TheIDT5V41068A selects between
1 of 2 differential HCSLinputs to drive a single differential HCSL output pair. Theoutput can also be terminated
to LVDS.
Recommended Applications
• Clock muxing in PCIe Gen2 and Gen3 applications
Output Features
• 1 – 0.7V current mode differential HCSL output pair
Features/Benefits
• Low additive jitter; suitable for use in PCIe Gen2 andGen3 systems
• 16-pin TSSOP package; small board footprint
• Outputs can be terminated to LVDS; can drive a widervariety of devices
• OE control pin; greater system power management
• Industrial temperature range available; supportsdemanding embedded applicationsKey Specifications
• Additive cycle-to-cycle jitter <5 ps• Additive phase jitter (PCIe Gen3) <0.2ps
• Operating frequency up to 200MHz
Application Information
Decoupling Capacitors
As with any high-performance mixed-signal IC, theIDT5V41068A must be isolated from system power
supplynoise to perform optimally.Decoupling capacitors of 0.01µF must be connectedbetween each
VDD and the PCB ground plane
