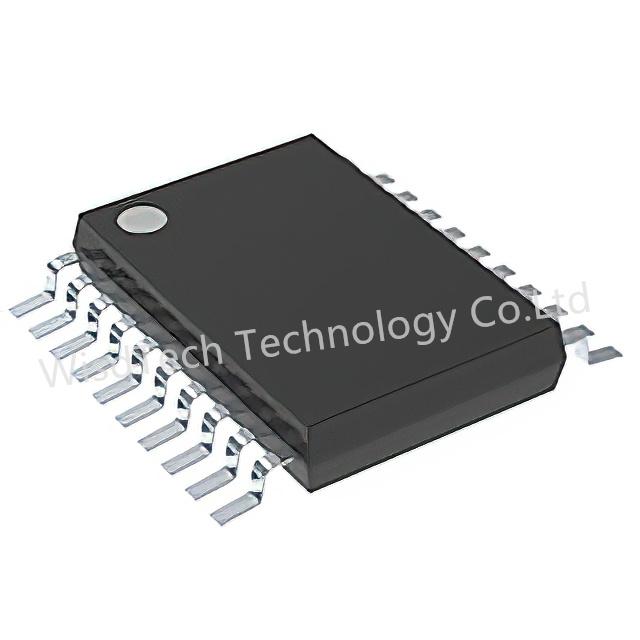

SN74LVC244APWR Buffers & Line Drivers Tri-State Octal 3.6V 20TSSOP Integrated Circuits ICs
Price:
Email us for details
MOQ:
1pcs
Delivery Time:
1day
Brand:
Texas Instruments
Product Description
SN74LVC244APWR Buffers & Line Drivers Tri-State Octal 3.6V 20TSSOP
| Texas Instruments | |
| Product Category: | Buffers & Line Drivers |
| RoHS: | Details |
| 8 Input | |
| 8 Output | |
| Non-Inverting | |
| - 24 mA | |
| 24 mA | |
| 1 uA | |
| 3.6 V | |
| 1.65 V | |
| 10 uA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| TSSOP-20 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Buffer/Line Driver |
| Height: | 1.05 mm |
| Input Signal Type: | Single-Ended |
| Length: | 6.6 mm |
| Logic Family: | LVC |
| Logic Type: | CMOS |
| Number of Channels: | 8 |
| Operating Supply Voltage: | 1.65 V to 3.6 V |
| Output Type: | 3-State |
| Pd - Power Dissipation: | 500 mW (1/2 W) |
| Product Type: | Buffers & Line Drivers |
| Propagation Delay Time: | 6.7 ns at 2.7 V, 5.7 ns at 3.3 V |
| Series: | SN74LVC244A |
| Subcategory: | Logic ICs |
| Supply Current - Max: | 1 uA |
| Technology: | CMOS |
| Width: | 4.5 mm |
| Unit Weight: | 0.002751 oz |
DESCRIPTION
These octal bus buffers are designed for 1 65-V to 3.6-V VCC operation. The SN74LVC244A devices are
designed for asynchronous communication between data buses.
Features
●Operates From 1.65V to3.6 V
●Inputs Accept Voltages to 5.5 V
●Specified From - 40°C to +85°C and - 40°C to +125°C
●Maximum tpd of 5.9 ns at3.3 V
●Typical VoLp (Output Ground Bounce) <0.8V atVcc=3.3V, TA= 25°C
●Typical VoHv (Output VoH Undershoot) >2V atVcc=3.3V,TA= 25°C
●Supports Mixed-Mode Signal Operation on
●All Ports (5-V Input or Output Voltage With
3.3-V Vcc)
lor Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
●Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down
to the Vcc Level
●Available in Ultra Small Logic QFN Package (0.5mm Maximum Height)
●Latch-Up Performance Exceeds 250 mA Per JESD 17
●ESD Protection Exceeds JESD 22
-2000-V Human-Body Model
一1000-V Charged-Device Model
Applications
●Servers
●LED Displays
●Network Switches
●Telecom Infrastructure
●Motor Drivers
●/0 Expanders
