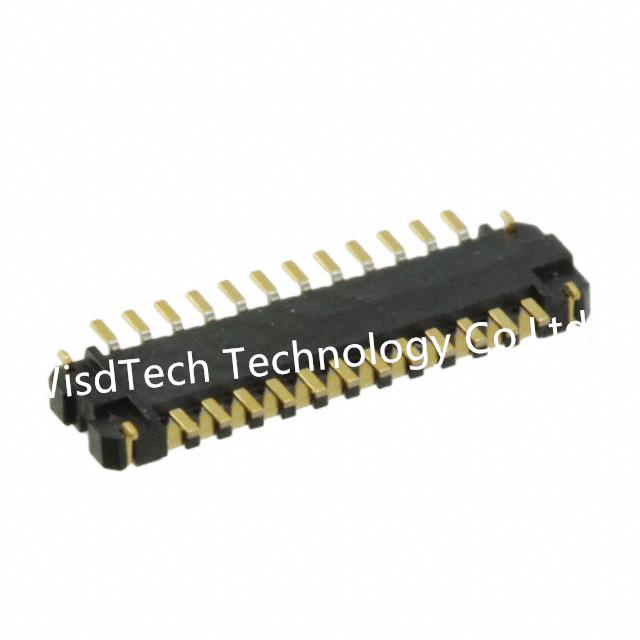

BM10B(0.8)-24DP-0 4V(51) Board To Board Connectors & Mezzanine Connectors
BM10B(0.8)-24DP-0 4V(51) Board to Board & Mezzanine Connectors 0.4MM FPC TO BOARD 24P HDR 0.8 HGHT

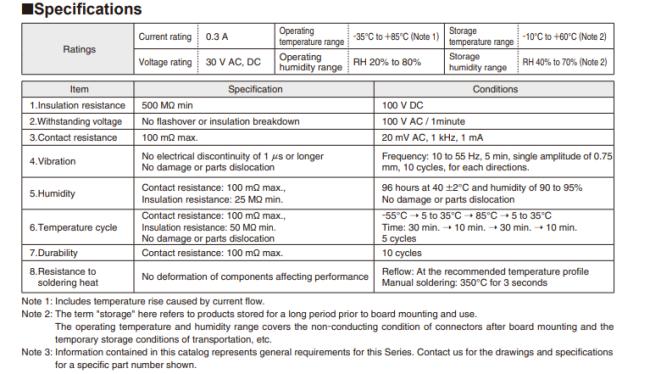

| Hirose Electric | |
| Product Category: | Board to Board & Mezzanine Connectors |
| RoHS: | Details |
| Headers | |
| 24 Position | |
| 0.4 mm | |
| 2 Row | |
| Solder | |
| Vertical | |
| 0.8 mm | |
| 300 mA | |
| 30 V | |
| - 35 C | |
| + 85 C | |
| Gold | |
| Phosphor Bronze | |
| Liquid Crystal Polymer (LCP) | |
| BM10 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Hirose Connector |
| Insulation Resistance: | 500 MOhms |
| Product Type: | Board to Board & Mezzanine Connectors |
| Subcategory: | Board to Board & Mezzanine Connectors |
| Part # Aliases: | 684-6011-2-51 |
| Unit Weight: | 0.000346 oz |
Features
1. Higher density of the board-mountedcomponentsExtremely small board mounting pattern and low
abovetheboard profile makes the connectors ideally suited for smalldevice applications.Globally unrivalled
compact depth:when mated 2.98mm Header 2.46mmLength - world’s smallest class:10.4mm
2. Reliable electrical and mechanical connectionDespite its small mated height, unique contact configuration,with
a 2-point contacts and effective mating length of0.2mm(height 0.8mm)and 0.1mm(height 0.6mm),
assureshighly reliable connection while confirming a complete matingwith a definite tactile feel.
3. Large self-alignment distanceThe connectors will self-align within 0.3 mm.
4. Built-in shock absorbing featureThe protrusions and indents in the insulator bodies protect theconnectors
from failures when exposed to sudden impact.5. Solder wicking preventionNickel barriers prevent un-intentional
solder wicking.6. Contamination protectionInsulator walls protect the contact areas against flux splatter orother
physical particles contamination.7. Conducive traces on the PCB can run underthe connectorNo exposed contacts
on the bottom of the connector.
Features
1. Higher density of the board-mountedcomponentsExtremely small board mounting pattern and low
abovetheboard profile makes the connectors ideally suited for smalldevice applications.Globally unrivalled
compact depth:when mated 2.98mm Header 2.46mmLength - world’s smallest class:10.4mm
2. Reliable electrical and mechanical connectionDespite its small mated height, unique contact configuration,with
a 2-point contacts and effective mating length of0.2mm(height 0.8mm)and 0.1mm(height 0.6mm),
assureshighly reliable connection while confirming a complete matingwith a definite tactile feel.
3. Large self-alignment distanceThe connectors will self-align within 0.3 mm.
4. Built-in shock absorbing featureThe protrusions and indents in the insulator bodies protect theconnectors
from failures when exposed to sudden impact.5. Solder wicking preventionNickel barriers prevent un-intentional
solder wicking.6. Contamination protectionInsulator walls protect the contact areas against flux splatter orother
physical particles contamination.7. Conducive traces on the PCB can run underthe connectorNo exposed contacts
on the bottom of the connector.
