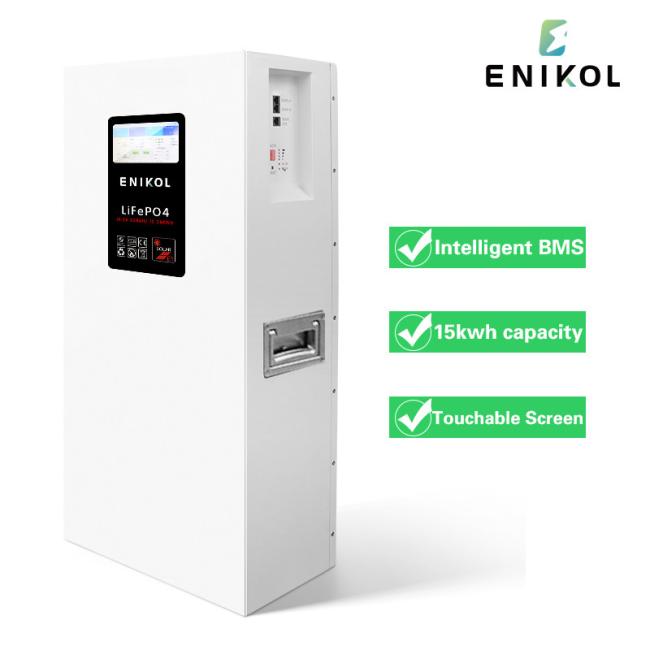

Touchable screen 51.2V 100AH 200AH 300AH Wall Mountable LiFePO4 Energy Storage Battery

Price Negotiable
Price: Negotiable
MOQ: 1 piece
Delivery Time: 7-15days
Brand: ENIKOL
Product Description
Product Model ESK-4810CWT ESK-4820CWT ESK-4830CWT
Type of Battery Lithium Iron Phosphate
Max parallel 16 sets
Rated capacity 100AH (5120WH) 200AH (10240WH) 300AH(15360WH)
Rated voltage 51.2V
Charging voltage 58.4V
Max charging current 100A 200A
Max continuous discharge current 100A 150A/200A optional 200A
Weight 47kg 85kg 130kg
Dimension (L* W * H) mm 620*460*195 955*460*195 975*460*280
Display LCD/Touchable screen
Warranty 5 years
Communication function CAN/RS485/RS232
Shell Material White painted steel
Cycle life ≥6000 times
Operating temperature -20 to +65
Protection function Overcharge protection, over discharge protection, over-current protection, short circuit protection, over temperature protection and low voltage alarm
Matched solar inverter brands

PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/

MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC,etc.

Bluetooth function Optional
Application Home Appliances, Industrial and commercial energy storage,Household energy storage,Large-scale photovoltaic energy storage projects,UPS energy storage

Product Description:

The Wall Mounted LiFePo4 Battery comes equipped with a communication function that includes RS485, RS232, and CAN Protocol, allowing for easy integration with your existing solar energy system. With a charging voltage of 58.4V and a maximum charging current of 100A/200A, you can be sure that your battery will be fully charged and ready to use in no time.

One of the best features of our Wall Mounted LiFePo4 Battery is its ability to be used in parallel, allowing for a maximum parallel of 16 batteries. This means that you can easily expand your energy storage capacity as your needs grow, without having to replace your entire system.

Technical Parameters:

Technical Parameters Description
Product Name 5kwh 10kwh 15kwh Wall Mount Lithium Battery
Max continuous discharge current 100A/ 150A/ 200A
Charging Voltage 58.4V
Mounting Type Wall Mounted
Communication function RS485/RS232/CAN Protocol
Anode Material Lithium Iron Phosphate (LiFePO4)
Max Charging Current 100A/ 200A
BMS Built In BMS
Max parallel 16
Shell Material White Painted Steel
Display LCD/ Touchable Screen

Applications:

The wall mounted design of this battery makes it ideal for use in homes, offices, and other indoor environments where space is limited. It is also a great option for outdoor applications such as RVs, boats, and other mobile homes.



ENIKOL ESK-CWT is certified by CE, FCC, UKCA, UN38.3, and MSDS, ensuring that it meets all necessary safety and quality standards. The minimum order quantity for this product is 1 piece, and the price is negotiable. The battery is packaged in a wooden box for safe transportation and delivery time is between 7-15 days.

With a supply ability of 4000 pieces per week, ENIKOL ESK-CWT is a reliable and efficient power source for a variety of applications. It is a 48v 200ah LiFePo4 battery that is designed to provide long-lasting power and is suitable for use in a range of scenarios such as renewable energy systems, backup power systems, and electric vehicles.

Overall, ENIKOL ESK-CWT is a high-quality wall mounted LiFePo4 battery that is built to last. With its reliable performance, built-in BMS, and communication function, it is an ideal choice for anyone looking for a dependable power source.



Customization:

ENIKOL offers product customization services for their Wall Mounted LiFePo4 Energy Storage with model number ESK-CWT, which is designed and manufactured in Shenzhen, China.

The minimum order quantity for this product is 1 piece and the price is negotiable. It is packaged in a sturdy wooden box to ensure safe delivery. The delivery time is estimated to be 7-15 days and payment can be made through T/T, L/C, D/A, D/P, Western Union, or MoneyGram. The supply ability for this product is 4000 pieces per week.



Support and Services:

The Wall Mounted LiFePo4 Battery product technical support and services include:

  • Assistance with installation and setup of the battery system
  • Troubleshooting and maintenance support
  • Advice on battery usage and optimization
  • Warranty coverage and support
  • Product updates and software upgrades

For further assistance or inquiries, please contact our customer service department.



Packing and Shipping:

Product Packaging:

The Wall Mounted LiFePo4 Battery product will be packed in a sturdy wooden box to ensure safe transportation.

Shipping:

The Wall Mounted LiFePo4 Battery product will be shipped via a reliable courier service to ensure timely and safe delivery. The shipping cost will be determined based on the shipping location and package weight. The estimated delivery time will be provided upon confirmation of the order.
