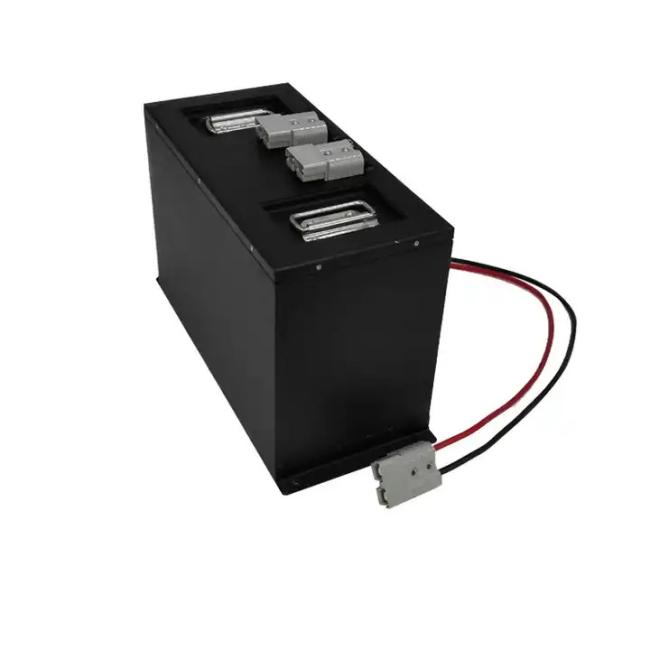

24V 30Ah LiFePO4 Battery 756Wh Deep Cycle Lithium Ion Battery For UPS
lithium battery 24v 30ah lifepo4 battery pack
Product details
| Rate capacity | 30Ah |
| Rate voltage | 24V |
| Maximum Continuous Charge Current |
15A |
| Maximum Continuous Discharge Current |
30A |
| Peak current | 60A |
| Operation Temperature Range |
Charge:0~45℃ Discharge:-10~60℃ |
| Storage Temperature Range |
Less than 1 year:-20~25℃ Less then 3 months:-20~40℃ |
| Weight | Approx:5.5kg |
Advantage
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
BMS
Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate it into our battery module) and contactor.
Besides the basic functions such as over charge/ discharge, over current, short circuit, over temperature and balancing, Our BMS owns the following features,
1. Master-Slave architecture makes the system flexible;
2. Two level warning makes maintenance easier;
3. CAN2.0 and industrial level electronic components make system reliable;
4. Contactor makes high rate charge & discharge feasible;
5. Periodic insulation measurement makes personnel safety possible;
6. Host can control the system easily;
