HDP PPG 0.50-1.0mm Z275 PPGI Pre Painted Color Coating Steel Coils DX51D Use For Roofing Panel

Price Negotiable
Price: USD 780~1050
MOQ: 25 TONS
Delivery Time: 30~45days
Brand: Decho Building Materials
Product Description

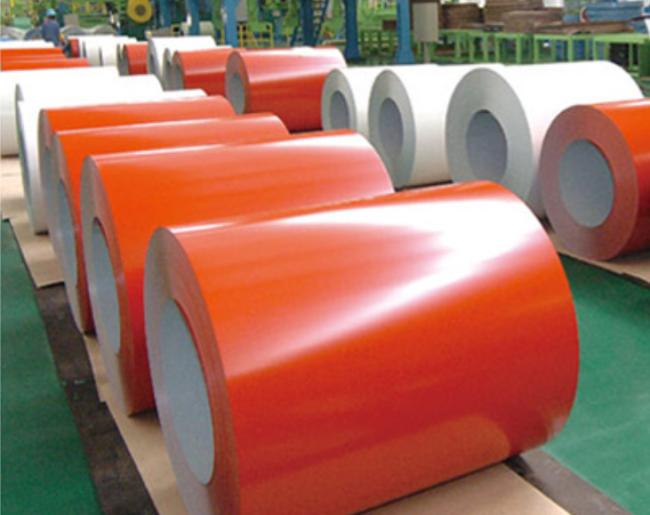

HDP PPG Customized Colors 0.50-1.0mm Z275 PPGI Pre-painted color coating steel coils DX51D use for roofing Panel



Product details:

Color-coated panels are metal-chemical composites that are ideal replacements for wood and other materials. They offer the following benefits: environmental protection, low carbon content, flame retardancy, weather and lime scale resistance, excellent workability and color richness, which reduces building maintenance costs.



Environmentally friendly, recyclable: green manufacturing, the product does not pollute, does not contain formaldehyde, does not produce construction waste and is recyclable.



Application areas:

In the construction sector: manufacture of exterior and interior products such as metal chipboard, corrugated sheets, sandwich panels, profiles, metal ceilings, skirting boards, decorative panels inside heated and unheated rooms, elevators, doors, window shutters, shelves, etc.

in the automotive industry: for the manufacture of exterior and interior body parts (car doors, car shoes, oil filters, dashboards, windshield wipers, etc.)

In the manufacture of household appliances, furniture and consumer goods: metal furniture, lighting equipment, shelving, radiators, car doors, car boots, etc.

PPGI is widely used for column and beam construction, civil engineering and decoration. Colored corrugated sheets are robust, useful and aesthetically pleasing. PPGL guarantees that buildings, cars and household appliances will retain their shine for years to come.



Steel Grade:

EN10346-DX51D/ DX52D/ DX53D, S250GD/280GD/350GD/550GD, ASTM A527M, CS-B, SS255-SS550



Paint Brand:

Valspar



Loading Port:

Qingdao/Tianjin Port



 Thickness
 GI 0.20mm~1.70mm                GL 0.20mm~3.0mm
 Width
 600mm~1500mm
 Zink-Coating
 Z40~Z275g/㎡                              AZ30~AZ200g/㎡
 Paint Structure
 2/1, 2/2, 3/2, 3/3
Paint Coating
 Top side 15μm~55μm               Back side 5μm~30μm



Structural Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
30,33,36,40 0.25 0.9 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
36T2,45-80 0.25 1.35 0.035 0.04     0.2 0.2 0.15 0.06 0.008 0.008 0.025
45T2 .02- 0.08 .30- 1.0 .03- .07 0.025 .02- .08 0.6 0.2 0.2 0.15 0.06 0.008 0.008 0.025 .01- .03



HSLA Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
45C1 0.22 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
45C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C1 0.23 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
50C2 & 55C2 0.15 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
55C1 0.25 1.35 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C1 & 65C1 0.26 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
60C2 & 65C2 0.15 1.5 0.04 0.04     0.2 0.2 0.15 0.06 0.005 0.005 0.005
70C1 0.26 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005
70C2 0.15 1.65 0.04 0.04     0.2 0.2 0.15 0.16 0.005 0.005 0.005



Common Grades C Mn P S Al Si Cu Ni Cr Mo V Cb Ti N
CSA 0.1 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSB 0.02-.15 0.6 0.03 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
CSC 0.08 0.6 0.1 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
BH 0.012 1.5 0.12 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSA 0.1 0.5 0.02 0.035     0.2 0.2 0.15 0.06 0.008 0.008 0.025
FSB 0.02-.15 0.5 0.02 0.03     0.2 0.2 0.15 0.06 0.008 0.008 0.025
DDS 0.06 0.5 0.02 0.025 .01   0.2 0.2 0.15 0.06 0.008 0.008 0.025
EDDS 0.02 0.4 0.02 0.02 .01*   0.2 0.2 0.15 0.06 0.1 0.1 0.15
