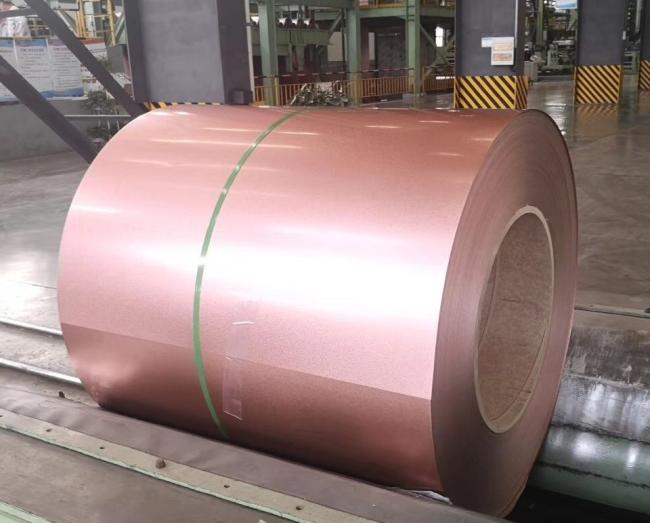

AZ120 Regular Spangle Galvalume Steel Coils ASTM A792M 55% Aluzinc Metal Coils
ASTM A792M 55% ALU-ZINC coils Galvalume Steel Coils 0.71mm AZ120 Regular spangle
APPLICATION:
Buildings: roofs, walls, garages, soundproof walls, pipes, and modular houses, etc
Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc
Home appliances: refrigerator backplate, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof strip, LED backlight, electrical cabinet, etc
Agriculture: pig houses, chicken houses, granaries, greenhouse pipes, etc
Others: heat insulation cover, heat exchanger, dryer, water heater, etc.
· Thickness- 0.14- 1.50 mm (BMT)
· Width- 600 - 1500 mm
· Coating- AZ30 - AZ150 G
· COIL ID : Ф 508MM/Ф610MM
· COIL WEIGHT : 2MT ~15MT
· SURFACE TREATMENT : ANTI-FINGERPRINT--AFP (BLUE COLOR, GREEN COLOR, YELLOW COLOR ) CHROMATED, OILED
| Product Series | Executive Standard | Grade | Class |
| Low carbon steel | GB/T 2518-2008 | DX51D+Z,DX52D+Z,DX53D+Z, DX54D+Z,DX56D+Z | FB,FC,FD |
| ASTM A653/653M-2011 | CS TpyeA,CS TpyeB,CS TpyeC | FB,FC,FD | |
| JIS 3302-2010 | SGCC,SGCD1,SGCD2 | FB,FC,FD | |
| Structural steel | GB/T 2518-2008 | S220GD,S250GD,S280GD, S320GD,S350GD,S550GD | FB,FC,FD |
| ASTM A653/653M-2011 | SS230,SS255,SS275,SS340, SS380,SS410,SS480,SS550 | FB,FC,FD | |
| JIS 3302-2010 | SGC340,SGC400,SGC440, SGC490,SGC570 | FB,FC,FD |
