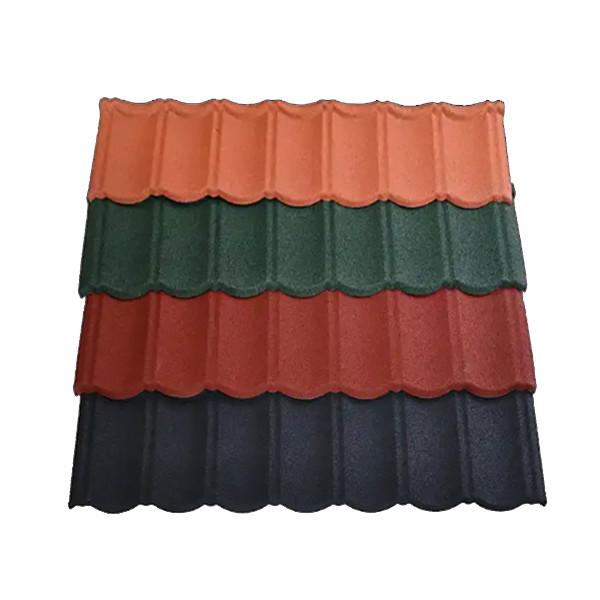

0.50x920 AZ150 Aluzinc Steel Galvalume Steel For Stone Coated Metal Roof Tile GL Aluzinc Steel Roll Sheet For Guttering
0.50x920 AZ150 Aluzinc Steel Galvalume Steel For Stone Coated Metal Roof Tile GL Aluzinc Steel Roll Sheet For Guttering

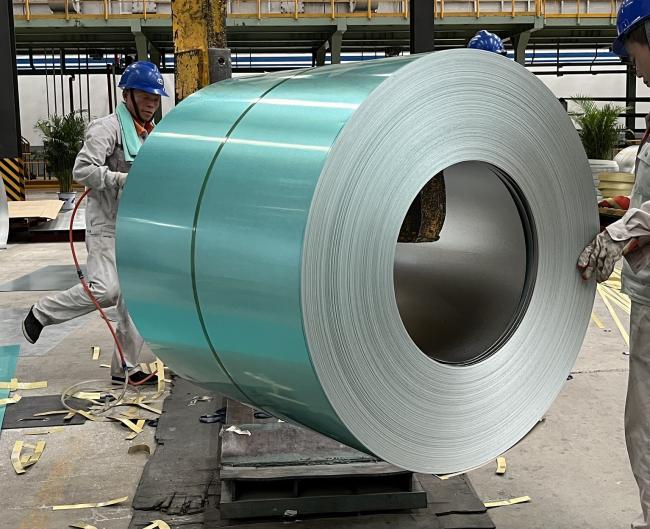

Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)
Hot-dip aluminium-zinc-plated steel sheet is based on cold-rolled steel sheets of various strengths and thickness specifications, and aluminium-zinc alloy has excellent corrosion resistance.
Galvalume is developed on the basis of hot-dip aluminium plating and hot-dip galvanising technology, which has both the excellent atmospheric corrosion resistance and heat and oxidation resistance of aluminium plating products and the excellent electrochemical protection of galvanised steel sheet products, so that the cuts and scratches are not easy to corrode and rust.
Main advantages:
1) smooth surface, excellent resistance to atmospheric corrosion, its corrosion resistance life is 2-6 times higher than hot-dip galvanised steel;
2) with good heat and oxidation resistance, it does not change colour under 300℃ for a long time, and it can be used for a long time around 500℃. In addition, the heat reflectivity of the product is higher than 75%, which is 2 times higher than that of galvanised sheet;
3) excellent paintability and good processing performance. The combination of machine material is strong, which is the best choice for colour coated steel sheet substrate. Its processability and weldability are similar to that of hot galvanised sheet, and it can be processed by cold bending and stamping, and has a good appearance.
Applications for Galvalume Steel Products
- Residential and commercial exterior building materials
- Decking
- Cladding
- Cabinetmaking
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
