Aluzinc Galvalume Colorful Anti-Finger Print AFP Chromated Aluminium Zinc Coils 0.35*914mm AZ70 GL
Aluzinc Galvalume Colorful Anti-Finger Print AFP Chromated Aluminium Zinc Coils 0.35*914mm AZ70 GL

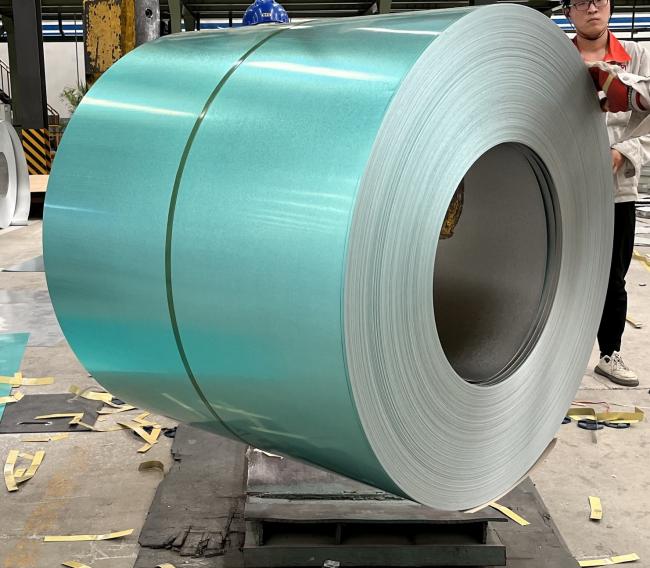

Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)
Aluminium-zinc coils have good heat and oxidation resistance, no change of colour for a long time at 300°C, and can be used for a long time at about 500°C to 600°C. They have good resistance to water and soil corrosion. At the same time, it has excellent coating performance and processing performance, strong bonding to organic materials, and is a good substrate for coloured organic coated steel sheets.
Anti-finger print (AFP) coating treatments improve performance of virtually any product subject to fingerprints via easy-to-apply nano-coatings that can bond with a wide array of surfaces.
Mainly used in automobile, printed iron barrel, construction, building materials, bicycle and other industries. It is also an ideal material for producing organic coated steel sheets.
- Fingerprints are unsightly and have a negative impact on the customer experienceCleaning your surface is time consuming, expensive, or impossible.
- Fingerprints negatively impact performance of optics
- Fingerprint oils or other contaminants are difficult to clean without chemical cleaners
- Fingerprints negatively impact quality of touchscreen displays
Applications for Galvalume Steel Products
- Residential and commercial exterior building materials
- Decking
- Cladding
- Cabinetmaking
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
| Index |
Regular spangle / Minimum Spangle Galvalume/ 55% Aluzinc Steel Coil/Sheets |
| Thickness | 0.13-2.0mm |
| Width | 600~1500mm |
| Zinc Coating | AZ30~AZ200 g/㎡ |
| Surface Treatment |
AFP (anti-finger print) Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A792M, CS-B, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons |
| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
| MOQ. | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port |
