Galvalume Steel Coil(55% Aluminium-Zinc Alloy Coated Steel Coil)
Aluminium-zinc steel is composed of an aluminium-zinc alloy structure, consisting of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at a high temperature of 600 degrees Celsius. Its entire structure consists of aluminium - iron - silicon - zinc, the formation of dense tetrameric crystals of an alloy coated steel.
Main advantages
1, smooth surface, excellent resistance to atmospheric corrosion, its corrosion resistance life is 2-6 times higher than hot-dip galvanised steel;
2, with good heat and oxidation resistance, it does not change colour for a long time under 300℃, and it can be used for a long time around 500℃. In addition, the heat reflectivity of the product is higher than 75%, which is 2 times higher than that of galvanised sheet;
3, has excellent paintability and good processing performance. The combination of machine material is strong, which is the best choice for colour coated steel sheet substrate. Its processability and weldability are similar to that of hot galvanised sheet, and it can be processed by cold bending and stamping, and has a good appearance.
Applications
Galvalume steel's superior protective characteristics and economical price make it ideal for :
- Residential and commercial exterior building materials
- Decking
- Cladding
- Cabinetmaking
Storage: The product should be stored in a ventilated and dry place such as indoor, warehouse, etc. It should not be placed in an acidic environment for a long time. Outdoor storage should avoid rain to avoid condensation causing oxidation and discolouration.
Transportation: Avoid external impacts, the means of transport must support the steel coils, reduce stacking, and take effective measures against rain.
Processing: Use the same lubricant for cutting as for aluminium sheets. When drilling or cutting aluminium galvanised steel sheets, loose iron filings should be removed promptly.
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
| Index |
Regular spangle / Minimum Spangle Galvalume/ 55% Aluzinc Steel Coil/Sheets |
| Thickness | 0.13-2.0mm |
| Width | 600~1500mm |
| Zinc Coating | AZ30~AZ200 g/㎡ |
| Surface Treatment |
AFP (anti-finger print) Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed |
| Steel Grade |
DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A792M, CS-B, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons |

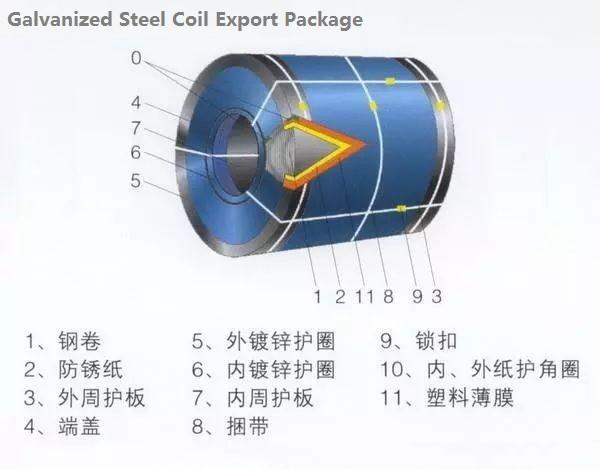

| Packaging |
Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
| MOQ. | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port |
